Bolt-On Drop with Adjustable Ride Quality

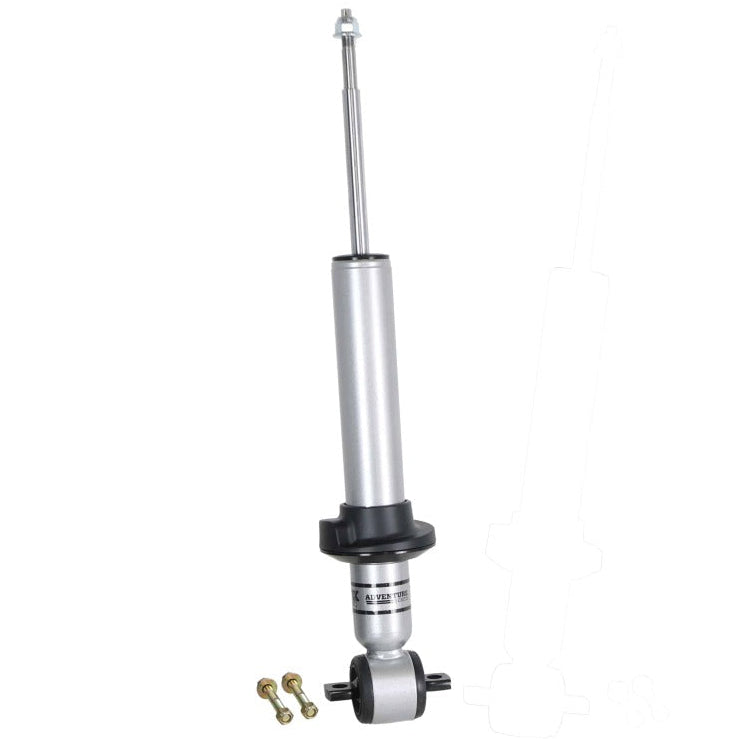

The Ridetech FOX98351017 Front Adventure Series Strut lowers a 2015-2026 Ford F-150 2WD or 4WD between 1 in. and 3.5 in. at the front while retaining the factory springs and top hats. Built with a Fox Factory-based monotube design, a honed seamless alloy body, and a durable silver powder coat finish, this strut is a direct bolt-on replacement that includes the lower spring mount and hardware needed for installation.
Key Features
- The FOX98351017 strut offers six-position adjustable drop in 1/2 in. increments from 1 in. to 3.5 in.
- Retains factory springs and top hats for a straightforward install
- Steel body construction with durable silver powder coat
- Honed seamless alloy body for smooth strut travel
- 5/8 in. hard chrome-plated, heat-treated alloy steel shaft
- Nitrile rubber bushings in front, poly bushings in rear
- Compatible with BlueCruise and PowerBoost equipped trucks
Fitment
| Year Range | Make | Model | Notes |
|---|---|---|---|
| 2015-2025 | Ford | F-150 | 2WD/4WD, not compatible with Raptor or Lightning models |
Specifications
| Detail | Value |
|---|---|
| MPN | FOX98351017 |
| UPC | Not confirmed by manufacturer, see unresolved |
| Drop Range | 1 in. to 3.5 in., 6-position adjustable in 1/2 in. increments |
| Piston Diameter | 1.834 in. |
| Shaft Diameter | 5/8 in. |
| Warranty | One-year warranty |
What's Included
- One FOX98351017 Front Adventure Series strut
- Lower spring mount
- Mounting hardware
About Ridetech
Ridetech engineers complete lowering and suspension systems for late-model trucks and classic muscle cars, partnering with Fox Factory to build shocks and struts that balance ride quality with performance handling. The FOX98351017 front strut is part of Ridetech's F-150 lowering lineup, designed as a bolt-on upgrade that keeps the factory springs in place.
FAQ
What is the FOX98351017?It is a Ridetech Front Adventure Series strut that lowers a 2015-2026 Ford F-150 2WD or 4WD between 1 in. and 3.5 in.
Does this strut require new springs?No, it retains the factory springs and top hats, so no separate spring purchase is needed.
Is this strut adjustable?Yes, it offers six drop positions adjustable in 1/2 in. increments across the 1 in. to 3.5 in. range.
Will this strut fit a Raptor or Lightning F-150?No, it is not compatible with F-150 Raptor or Lightning models.
Is this strut compatible with BlueCruise or PowerBoost trucks?Yes, it is compatible with F-150s equipped with BlueCruise or PowerBoost.
What is included with this strut?Each strut includes the lower spring mount and the hardware required for installation.
What warranty comes with this strut?Ridetech backs this strut with a one-year warranty.
Is this a bolt-on installation?Yes, it installs using factory mounting locations without welding or permanent modification.
Install Instructions
- Raise and safely support the front of the vehicle, then remove the front wheel.
- Remove the factory front strut assembly from the upper and lower mounts.
- Transfer the factory spring and top hat onto the new Adventure Series strut following the kit instructions.
- Set the desired drop position using the adjustable mount before installation.
- Install the lower spring mount and secure with the supplied hardware.
- Position the new strut assembly into the factory upper and lower mounting points.
- Torque all mounting hardware to the specification provided in the kit instructions.
- Repeat on the opposite side, then have the vehicle aligned.
