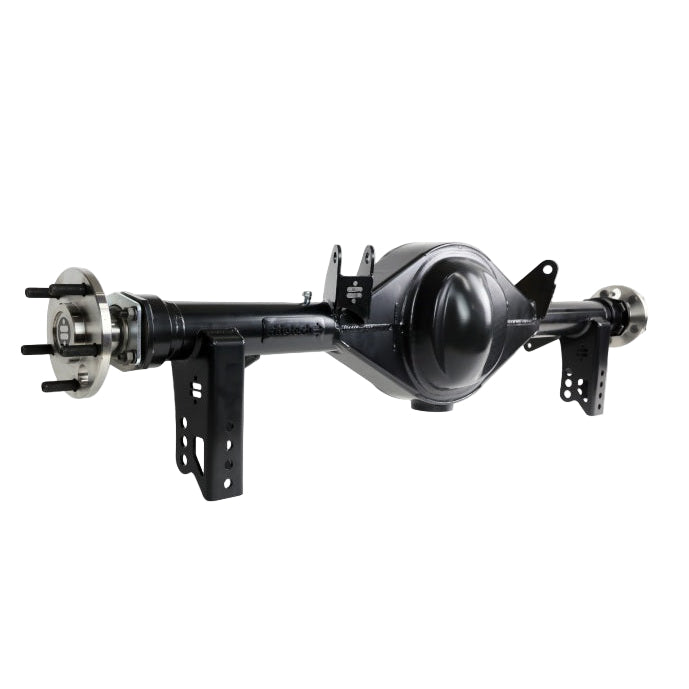

Ridetech narrowed rear axle housing black powdercoat for 67-69 Camaro Firebird
Close up of Ridetech welded control arm shock and panhard brackets

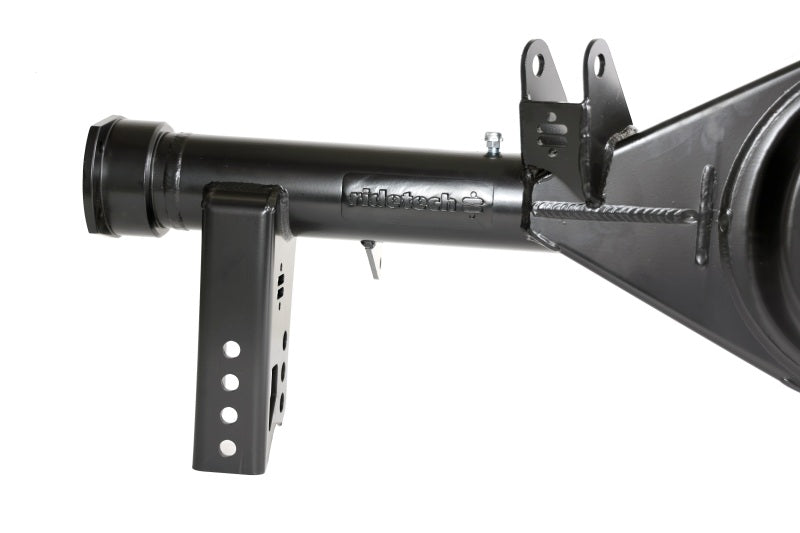

Ridetech large Ford (Torino) bearing ends on narrowed housing
Ridetech narrowed housing installed under 1967-1969 Camaro with wide tires
Comparison Ridetech narrowed housing vs factory 67-69 F-body axle width
Ridetech narrowed rear axle housing in protective crate
Click to zoom in

Ridetech 67-69 Chevrolet Camaro / 67-69 Pontiac Firebird Rear Axle Housing Kit - Blk (Narrow Width)

Ridetech
RID11169683
840123518156
Axles
13 Units In Stock - Ships Next Business Day
$ 2,175.00
$ 2,175.00

Ridetech Narrowed Rear Axle Housing Kit for 1967-1969 Camaro and Firebird

The Ridetech Narrowed Rear Axle Housing Kit, MPN 11169683, is a bolt-in rear axle housing for 1967-1969 Chevrolet Camaro and Pontiac Firebird built for owners running wide wheels and tires with proper backspacing. The housing is narrowed approximately 2 inches per side, 4 inches narrower than stock overall, while retaining factory suspension geometry and allowing up to 345 to 355mm wide tires under mini-tubs. The housing uses 3 inch outer diameter DOM tubing with factory-style ends and big Ford Torino bearing ends that accept 31-spline axles, finished in black powdercoat with all suspension brackets pre-welded.

Key Features

  • Narrowed approximately 2 inches per side, 4 inches narrower than stock overall
  • Forged steel construction with reinforced, pre-welded brackets
  • Upper and lower control arm, shock, sway bar, and panhard mounts included
  • 3 inch outer diameter DOM axle tubes with factory-style ends
  • Big Ford Torino bearing ends, accepts 31-spline axles
  • Black powdercoat finish
  • Made in the USA in Jasper, Indiana

Fitment

Year Make Model
1967-1969 Chevrolet Camaro
1967-1969 Pontiac Firebird

MPN 11169683 fits all 1967-1969 Camaro trims, including Z28 and SS, and all 1967-1969 Firebird trims, including Trans Am. It is compatible with Ridetech 4-link, torque arm, or factory multi-link suspensions.

Specifications

Detail Value
MPN 11169683
SKU RID11169683
UPC 840123518156
Finish Black powdercoat
Axle Tube 3 in outer diameter DOM tubing
Bearing Ends Big Ford Torino, 31-spline axle compatible
Overall Width Approximately 56 to 57 in flange to flange
Weight Approximately 95 to 105 lbs, bare housing

What's Included

  • 1 narrowed rear axle housing with pre-welded suspension brackets
  • Vent and fill and drain plugs

This housing does not include axles, third member, gears, positraction unit, or brakes, all of which are sold separately from MPN 11169683.

About Ridetech

Ridetech has developed suspension components for the first-generation F-body platform for decades, and the narrowed housing in MPN 11169683 is engineered to give Camaro and Firebird owners a bolt-in foundation for wide wheel and tire fitment paired with a Ridetech 4-link or torque arm rear suspension.

Related Parts

Frequently Asked Questions

Does this kit include axles or a third member?

No. This is a bare housing only. It requires 31-spline axles and a compatible center section, both sold separately.

How much narrower is this housing than stock?

This housing is approximately 4 inches narrower than stock overall, 2 inches per side, and fits 345 to 355mm wide tires with mini-tubs.

Can I use my factory brakes with this housing?

No. This housing requires an aftermarket brake kit, since it uses big Ford Torino bearing ends rather than the factory Camaro or Firebird bearing ends.

What rear suspension systems is this housing compatible with?

This housing is compatible with Ridetech 4-link, torque arm, or factory multi-link rear suspensions.

What wheel backspacing does this housing support?

Typical backspacing is 5.5 to 7 inches with mini-tubs, though exact clearance depends on your specific wheel and tire combination.

Are the suspension mounting brackets already installed?

Yes. Upper and lower control arm, shock, sway bar, and panhard mounts are pre-welded to the housing.

Is professional installation recommended?

Yes. Professional installation is recommended, since rear end removal and gear setup are required.

What finish protects this housing from corrosion?

The housing uses a durable black powdercoat finish for corrosion resistance and a clean appearance.
