Precision Retainer Tool for Rock Krawler 3/4in and 7/8in Krawler Joints

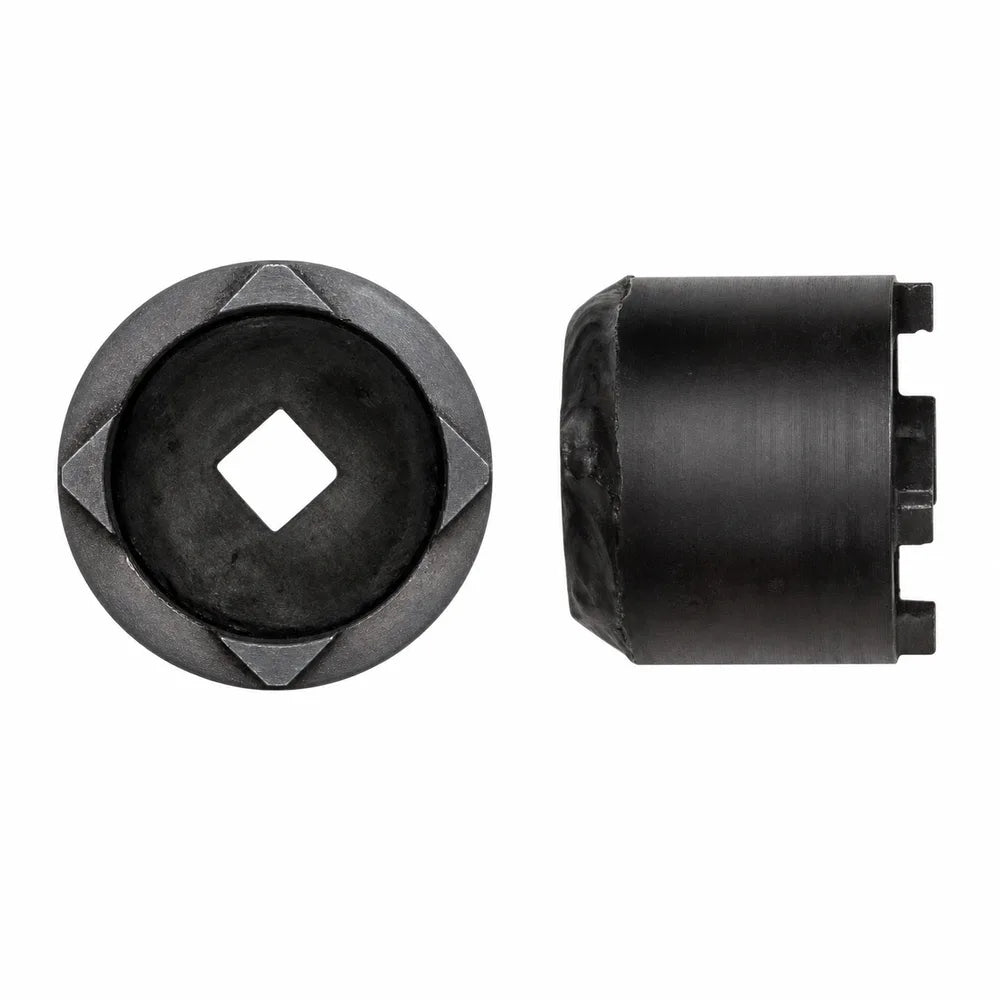

The RK04487 Small Joint Tool is the dedicated service tool for rebuilding and torquing Rock Krawler 3/4 inch and 7/8 inch Krawler Joints and Pro Krawler Joints. Built for technicians and off road enthusiasts who service their own suspension, this tool engages the joint retainer rings so they can be removed, cleaned, and reinstalled to factory torque specification.
Key Features
- Purpose built to fit 3/4 inch and 7/8 inch Krawler Joint retainer rings
- Also compatible with current Track Bar Anti Wobble joint ends
- Allows proper torque application during joint rebuild for a secure, rattle free fit
- Durable steel construction designed for repeated shop use
- Compact design for easy storage in a tool box or trail bag
Specifications
| Detail | Value |
|---|---|
| MPN | RK04487 |
| Brand | Rock Krawler |
| Tool Type | Joint Retainer Removal Tool |
| Compatible Joint Sizes | 3/4 inch and 7/8 inch |
| Compatible Products | Krawler Joints Pro Krawler Joints Track Bar Anti Wobble Ends |
| Material | Steel |
What's Included
- (1) 3/4 inch and 7/8 inch Small Joint Retainer Tool
About Rock Krawler
Rock Krawler Suspension has engineered off road suspension systems and components for Jeep platforms for decades. Every joint, arm, and service tool is designed and tested to hold up to serious trail use while remaining serviceable in a home garage or professional shop.
Related Parts
- Rock Krawler 07-18 Jeep Wrangler JK/JKU High Clearance Adjustable Front Lower Control Arms
- Rock Krawler 07-18 Jeep Wrangler JK/JKU High Clearance Adj. Rear Lower Control Arms
- Rock Krawler 07-18 Jeep Wrangler JK/JKU 1.5-3.5in Lift Front Adjustable Track Bar
FAQ
What is the RK04487?This is a Rock Krawler service tool used to remove and install the retainer rings on 3/4 inch and 7/8 inch Krawler Joints and Pro Krawler Joints.
Which joints does this tool fit?It fits all 3/4 inch and 7/8 inch Krawler Joints, Pro Krawler Joints, and current Track Bar Anti Wobble ends.
Do I need this tool to rebuild a small Krawler Joint?Yes. The retainer rings on small Krawler Joints require this tool to be removed and properly torqued during reassembly.
Will this tool work on the larger 1 inch or 1 1/4 inch joints?No. Larger joints require the separate large joint tool. This tool is sized specifically for the 3/4 inch and 7/8 inch joints.
What torque spec should I use when reinstalling the retainer?Rock Krawler specifies 20 ft lbs for 7/8 inch and 3/4 inch Pro Krawler Joints. Always confirm the spec for your exact joint before installation.
Can this tool be used with a torque wrench?Yes. The tool is designed to interface with a torque wrench or ratchet so retainer rings can be tightened to the correct specification.
Is this tool a one time purchase or a wear item?It is a durable steel tool intended for repeated use and is not considered a wear item under normal shop conditions.
Does Rock Krawler offer a rebuild kit to use alongside this tool?Yes. The Small Krawler Joint Rebuild Kit includes replacement bushings and set screws and is designed to be installed using this tool.
Usage Instructions
- Remove the black set screws from each side of the joint housing, applying heat if needed to release thread locker
- Insert the tool into the retainer ring and unthread both retainers
- Remove the old bushing raceways and ball, then clean and inspect all components
- Apply thread locker to the new retainer and thread it back into the housing until flush
- Press in the new raceway, ball, and remaining raceway per the joint rebuild instructions
- Use the tool with a torque wrench to tighten both retainers evenly to the specified torque
- Apply thread locker to the set screws and torque to the specified in lb value
- Verify the joint moves freely but shows no side to side play once assembly is complete
