A Shorter Trimmable End Link Rod for Tighter Antirock Installations

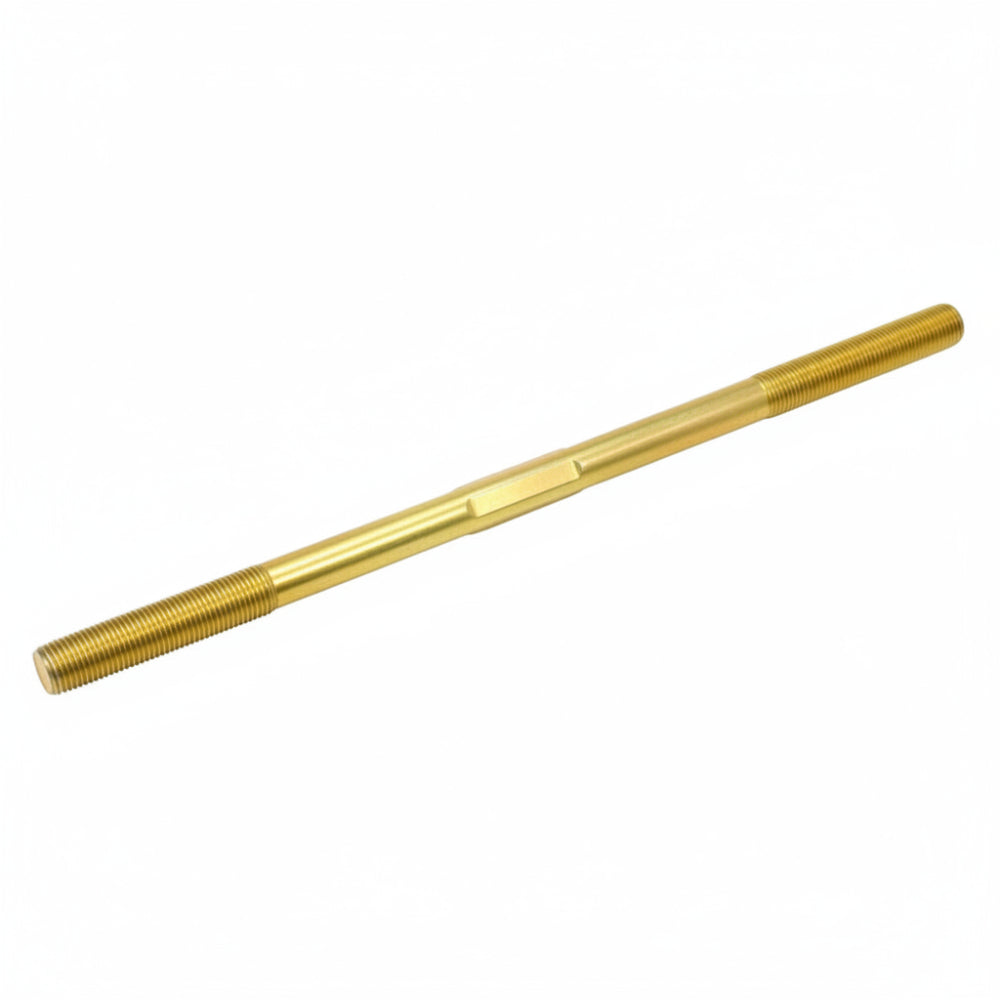

RockJock's CE-9901RD5 is a 10 1/2 in. long, 1/2 in. diameter end link rod threaded 1/2 in.-20 right hand and left hand on opposite ends, sized for Antirock installations that need a shorter starting length than the 14 in. rod before trimming.
Key Features
- 10 1/2 in. long, 1/2 in. diameter threaded rod
- 1/2 in.-20 right hand thread on one end, left hand on the opposite end
- Trimmable to the exact length needed for the installation
- Used with Antirock sway bar arm and axle end link heim joints
Fitment
| Year | Make | Model |
|---|---|---|
| Universal | Jeep/Custom | Antirock Sway Bar End Link Applications |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | CE-9901RD5 |
| Length | 10 1/2 in. |
| Diameter | 1/2 in. |
| Thread | 1/2 in.-20 RH one end, LH opposite end |
What's Included
- 1 adjustable end link rod
About RockJock 4x4
RockJock 4x4, made by Currie Enterprises, engineers Jeep-specific control arms, Johnny Joint rod ends, Antirock sway bar systems, and Currectlync steering components for TJ, LJ, XJ, JK, JL, and JT platforms. RockJock parts are built from forged and DOM steel for off-road durability and are designed to bolt into factory mounting points.
FAQ
How is this rod different from the 14 inch version?It starts 3.5 in. shorter, making it a better base length for installations that need a shorter finished end link.
Can this rod be trimmed shorter still?Yes, it can be cut down further to match the exact length required.
What heim joints fit this rod?RockJock's 1/2 in.-20 RH and LH Antirock heim joints.
Why does the rod have opposite hand threads on each end?This allows length adjustment by rotating the rod without disconnecting either heim joint.
What is the rod diameter?1/2 in.
Is a jam nut required on each end?Yes, jam nuts lock the heim joint position once the correct length is set.
What is this rod used for?Connecting Antirock sway bar arms to axle mounting tabs as an adjustable end link.
Will this rod work on a vehicle with limited end link clearance?Its shorter starting length makes it a better fit for tighter clearance installations than the 14 in. rod.
Installation Instructions
- Determine the correct end link length with the axle at mid-travel and the sway bar arms level.
- Trim the rod further if a length shorter than 10.5 in. is required.
- Thread the RH and LH heim joints onto the rod ends to the determined length.
- Install the end link between the sway bar arm and the axle mounting tab.
- Tighten the jam nuts against each heim joint to lock the length in place.
