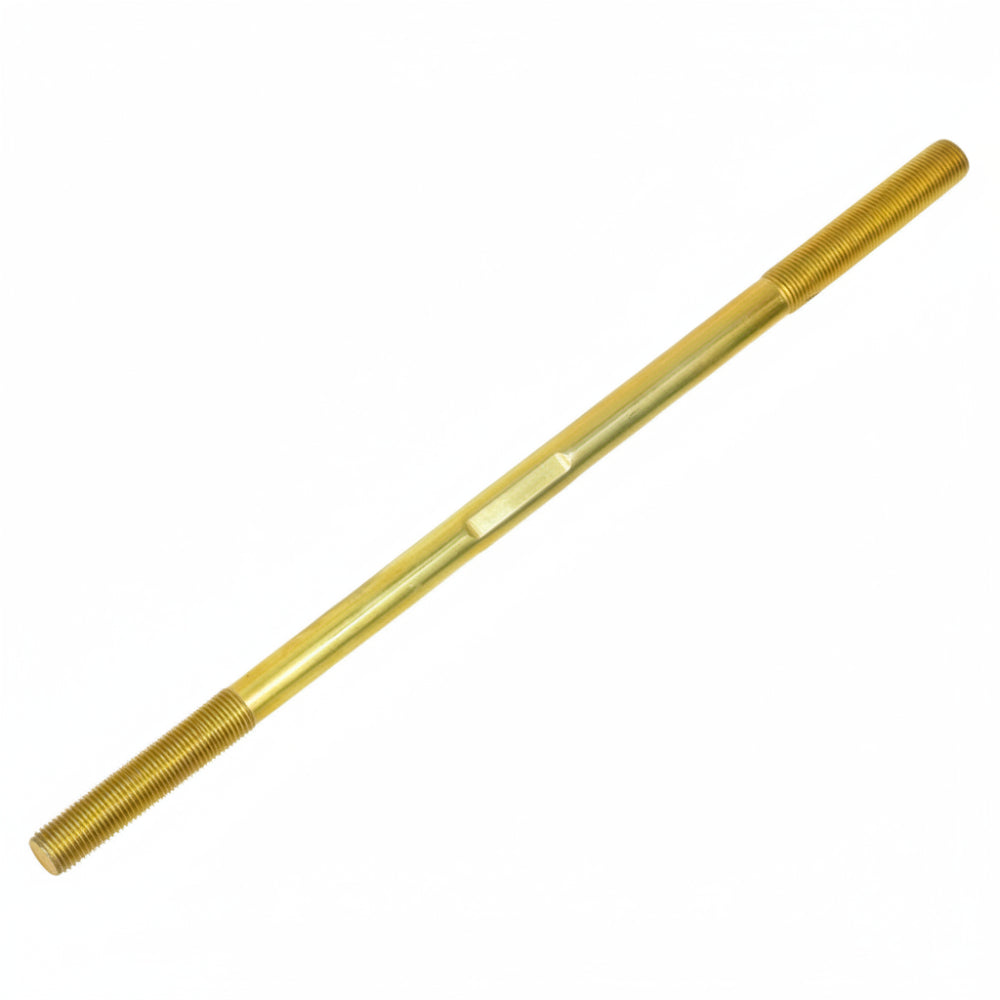

A Mid-Length Trimmable End Link Rod for Antirock Systems
RockJock's RJ-517200-1 is a 12 1/2 in. long, 1/2 in. diameter end link rod threaded 1/2 in.-20 right hand and left hand on opposite ends, sized between the shorter 10.5 in. and longer 14 in. Antirock end link rods to match a wider range of axle and arm geometry.
Key Features
- 12 1/2 in. long, 1/2 in. diameter threaded rod
- 1/2 in.-20 right hand thread on one end, left hand on the opposite end
- Trimmable to the exact length needed for the installation
- Used with Antirock sway bar arm and axle end link heim joints
Fitment
| Year | Make | Model |
|---|---|---|
| Universal | Jeep/Custom | Antirock Sway Bar End Link Applications |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | RJ-517200-1 |
| Length | 12 1/2 in. |
| Diameter | 1/2 in. |
| Thread | 1/2 in.-20 RH one end, LH opposite end |
What's Included
- 1 adjustable end link rod
About RockJock 4x4
RockJock 4x4, made by Currie Enterprises, engineers Jeep-specific control arms, Johnny Joint rod ends, Antirock sway bar systems, and Currectlync steering components for TJ, LJ, XJ, JK, JL, and JT platforms. RockJock parts are built from forged and DOM steel for off-road durability and are designed to bolt into factory mounting points.
FAQ
How does this rod compare to the 10.5 and 14 inch versions?It is a mid-length option, giving a closer starting point to the final trimmed length for many applications.
What heim joints fit this rod?RockJock's 1/2 in.-20 RH and LH Antirock heim joints.
Can this rod be trimmed shorter?Yes, it can be cut to the exact length calculated for the vehicle.
Why does the rod use opposite hand threads?This allows length adjustment by rotating the rod without disconnecting either end.
What is the rod diameter?1/2 in.
Is a jam nut required at each end?Yes, jam nuts lock the heim joint position once the length is set.
What is this rod used for?Connecting Antirock sway bar arms to axle mounting tabs as an adjustable end link.
How do I know which length rod to order?Measure the required center to center distance with the axle at mid-travel and the arms level, then choose the rod closest to or longer than that measurement.
Installation Instructions
- Determine the correct end link length with the axle at mid-travel and the sway bar arms level.
- Trim the rod to the calculated length if shorter than 12.5 in. is required.
- Thread the RH and LH heim joints onto the rod ends to the determined length.
- Install the end link between the sway bar arm and the axle mounting tab.
- Tighten the jam nuts against each heim joint to lock the length in place.
