RJ-202007-105 - ANTIROCK SWAY BAR FABRICATED STEEL ARMS (20 IN. LONG)
Logo Image
Click to zoom in

RockJock Antirock Fabricated Steel Sway Bar Arms 20in Long 18.195in C-C 5 Holes w/ Stickers Pair

RockJock
ROKRJ-202007-105
810038154671
Sway Bars
3 Units In Stock - Ships Next Business Day
$ 142.00
$ 142.00

SKU: RJ-202007-105

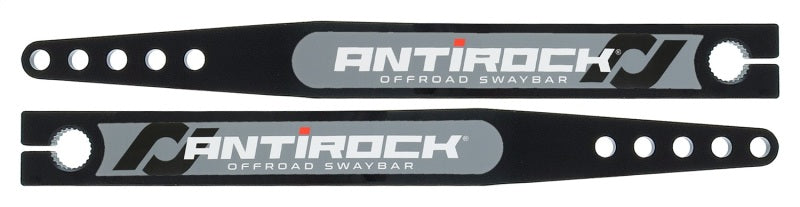

RJ-202007-105 - ANTIROCK SWAY BAR FABRICATED STEEL ARMS (20 IN. LONG)

20 in. Fabricated Steel Antirock Sway Bar Arms are available separately for custom builders or as replacement parts for existing kits.
These arms would be replacements for our TJ Wrangler and Unlimited (LJ) front Antirock kits.
Arms are laser cut and welded steel, 20 in. long, 3/8 in. thick and feature 5 adjustable sway bar link mounting holes, allowing them to be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.

Arms Fit:

  • Universal Applications
  • YJ Wrangler – F Antirock Sway Bar Kit

Kit Includes:

  • 20 in. Antirock Sway Bar Arms (pair)
  • Arm Stickers (pair)

Specs. and Dimensions:

  • Overall length  =  20 in.
  • Thickness  =  3/8 in.
  • Material  =  laser cut steel
  • Spline count  =  25
  • Center of splined hole to center of 1/2 in. hole #1 (nearest)  =  14.195 in.
  • Center of splined hole to center of 1/2 in. hole #2  =  15.195 in.
  • Center of splined hole to center of 1/2 in. hole #3 (middle)  =  16.195 in.
  • Center of splined hole to center of 1/2 in. hole #4  =  17.195 in.
  • Center of splined hole to center of 1/2 in. hole #5 (farthest)  =  18.195 in.
  • Weight  =  8lbs. (for the pair)

Notes:

  • These are the replacement arms for our YJ Wrangler front Antirock kit.

Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.

  • See CE-99005A for arm hardware kit.

Manufacturer: RockJock

Description: RockJock Antirock Fabricated Steel Sway Bar Arms 20in Long 18.195in C-C 5 Holes w/ Stickers Pair

Product Name: ROK Antirock Sway Bars

Box 1 Dims (LxWxH-W): 20 x 2.3 x 1.8 - 7.6

Born On Date: 04-12-2023

Request For Information

Have questions about RockJock Antirock Fabricated Steel Sway Bar Arms 20in Long 18.195in C-C 5 Holes w/ Stickers Pair? Fill out the form below and we'll get back to you by the next business day.
