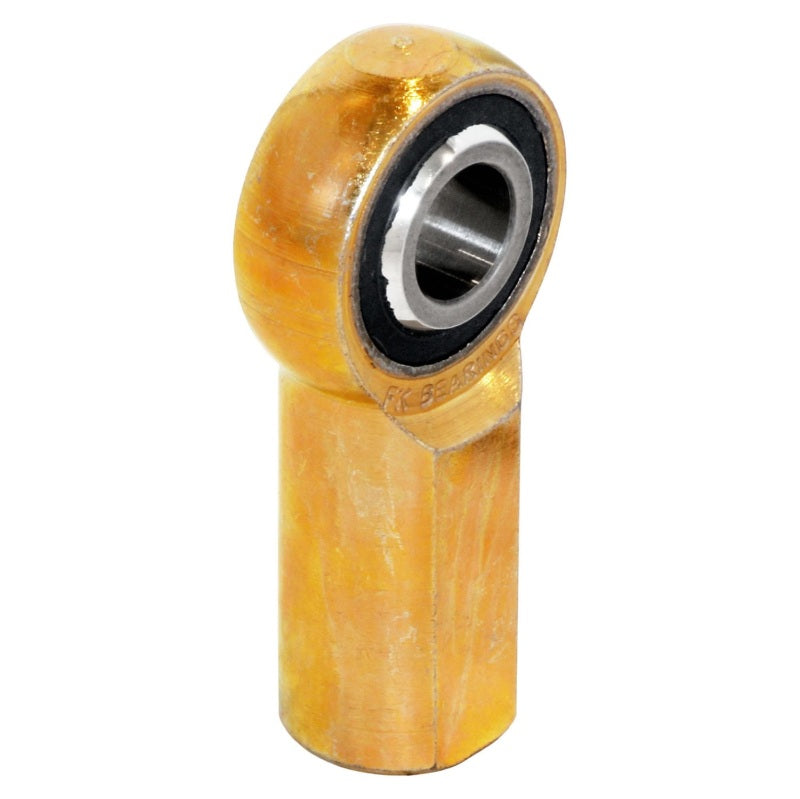

A Direct Replacement Heim Joint for Antirock End Links
RockJock's CE-99006B is a female, thru-hole heim joint with 1/2 in.-20 right hand threads, used in RockJock's JL front and JT rear Antirock sway bar kit end links and available separately as a service replacement.
Key Features
- Female heim joint with 1/2 in.-20 right hand threads
- Thru-hole bolt design for end link mounting
- Used in RockJock JL front and JT rear Antirock sway bar kits
- Available as an individual service replacement part
Fitment
| Year | Make | Model |
|---|---|---|
| Universal | Jeep | JL/JT Antirock End Link Applications |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | CE-99006B |
| Thread | 1/2 in.-20 RH |
| Joint type | Female, thru-hole |
| Application | JL front and JT rear Antirock sway bar kit end links |
What's Included
- 1 heim joint
About RockJock 4x4
RockJock 4x4, made by Currie Enterprises, engineers Jeep-specific control arms, Johnny Joint rod ends, Antirock sway bar systems, and Currectlync steering components for TJ, LJ, XJ, JK, JL, and JT platforms. RockJock parts are built from forged and DOM steel for off-road durability and are designed to bolt into factory mounting points.
FAQ
What Antirock kits use this heim joint?It is used in RockJock's JL front and JT rear Antirock sway bar kit end links.
Is this a right hand or left hand thread?Right hand, 1/2 in.-20 thread.
What does thru-hole mean for this joint?The heim's ball has a hole through it for a bolt to pass through, rather than a threaded stud.
Can this joint be bought individually for a repair?Yes, it is sold as an individual service replacement part.
Does this joint include a jam nut?Jam nuts for 1/2 in.-20 threads are available separately to match this thread size.
Is a left hand version available?Yes, RockJock offers a matching left hand thread version as CE-99006BL.
What is this joint typically paired with?It is used with Antirock adjustable end link rods on JL and JT sway bar kits.
Can this joint be rebuilt?Heim joints of this type are typically replaced as a unit rather than rebuilt.
Installation Instructions
- Remove the worn end link heim joint from the sway bar arm or axle bracket.
- Thread the new CE-99006B heim joint onto the end link rod to the same depth as removed.
- Install the thru-hole mounting bolt through the heim and bracket.
- Torque the mounting bolt to the specified value.
- Tighten the jam nut against the heim body to lock the thread position.
