Keep Your RockJock Johnny Joints Operating Like New with the CE-9110RK-BDL-4P 2.5-Inch Standard Rebuild Kit 4-Pack
The RockJock CE-9110RK-BDL-4P is a four-pack bundle of the CE-9110RK rebuild kit for 2.5-inch standard body RockJock Johnny Joints. Johnny Joints are high-articulation ball and socket joints used in aftermarket suspension links, control arms, and track bars for Jeep, 4x4, and off-road applications. With regular off-road use, the internal bushings, side washers, and snap rings in Johnny Joints wear over time and require replacement to maintain proper joint function, articulation, and precise suspension link positioning. Rather than replacing an entire control arm or link assembly, the CE-9110RK-BDL-4P allows the joints to be rebuilt in place at a fraction of the cost of full replacement. The 4-pack covers a full set of four joints simultaneously, which is the typical quantity for a complete rear suspension link rebuild on most Jeep platforms. Compatible with 2.5-inch standard body RockJock Johnny Joints, specifically the CE-9114 and related standard body joint family.
Key Features
- Rebuild kit for 2.5-inch standard body RockJock Johnny Joints (CE-9114 and related)
- 4-pack bundle covers a complete set of four joints for a full suspension rebuild
- Includes replacement bushing halves, side washers, and snap ring per joint
- Restores joint articulation and precise suspension link positioning without full arm replacement
- Significantly lower cost than replacing complete control arm or link assemblies
- Universal fit for all 2.5-inch standard body RockJock Johnny Joint applications
Specifications
| Detail | Value |
|---|---|
| Part Number | CE-9110RK-BDL-4P |
| Base Rebuild Kit | CE-9110RK |
| Quantity | 4 rebuild kits (4-pack bundle) |
| Compatible Joint Body Size | 2.5 inch standard body |
| Compatible Joint Part Numbers | CE-9114 and related 2.5-inch standard body Johnny Joints |
| Contents per Kit | 2 bushing halves, 2 side washers, 1 snap ring |
| Fitment | Universal for 2.5-inch standard RockJock Johnny Joints |
| UPC | N/A |

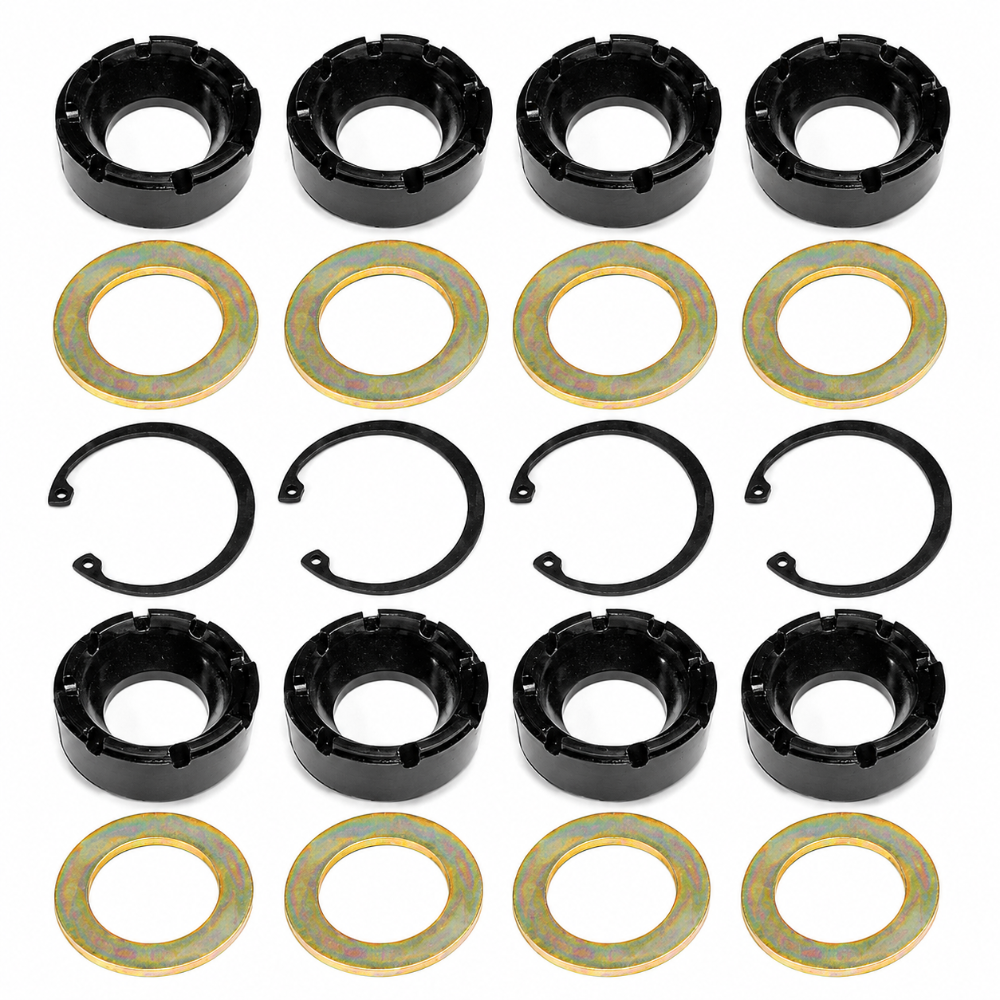

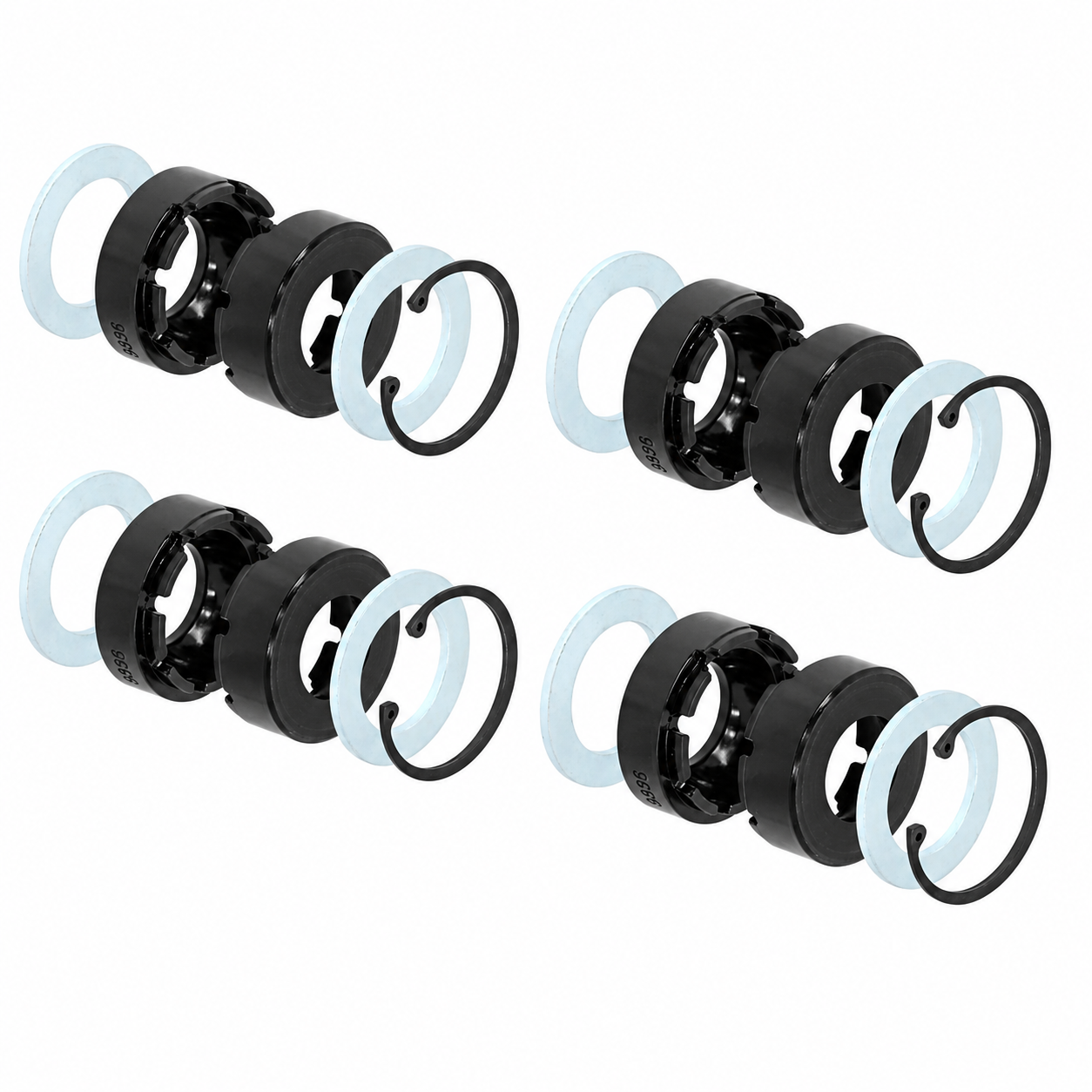

What's Included
- 4x CE-9110RK rebuild kits, each containing:
- 2 bushing halves
- 2 side washers
- 1 snap ring
About RockJock 4x4
RockJock 4x4 by John Currie is an American manufacturer of high-quality Jeep and off-road suspension components, best known for the Johnny Joint high-articulation ball and socket joint system. Johnny Joints are used throughout the off-road industry in aftermarket control arms, track bars, and suspension links for Jeep Wrangler, Cherokee, Grand Cherokee, and similar 4x4 platforms. RockJock products are designed and manufactured to withstand the demands of serious off-road use, trail damage, rock crawling, and overlanding applications.
Related Parts on Our Site
Frequently Asked Questions
What is the RockJock CE-9110RK-BDL-4P?The RockJock CE-9110RK-BDL-4P is a four-pack bundle of CE-9110RK rebuild kits for 2.5-inch standard body RockJock Johnny Joints. Each kit contains the replacement bushing halves, side washers, and snap ring needed to rebuild one 2.5-inch standard body Johnny Joint back to factory specification. The 4-pack covers a complete set of four joints in one purchase.
What Johnny Joint part numbers does the CE-9110RK fit?The CE-9110RK rebuild kit is designed for the 2.5-inch standard body RockJock Johnny Joint, specifically the CE-9114 and related standard body joints in the 2.5-inch family. It does not fit the 2.5-inch narrow body joint (CE-9117N or CE-9113N-14), the 2-inch standard body joint, or the 2-inch narrow body joint. Confirm your specific joint part number before ordering to ensure the correct rebuild kit.
Why should I rebuild a worn Johnny Joint instead of replacing the entire arm?A complete aftermarket control arm or track bar can cost several hundred dollars. The CE-9110RK rebuild kit restores the joint to factory function at a fraction of that cost, provided the joint housing itself is undamaged. Rebuilding is the correct approach when the bushing material shows wear or the joint has developed excessive play, but the housing threads and body are still in serviceable condition.
How do I know if my 2.5-inch standard Johnny Joints need rebuilding?Signs that a 2.5-inch Johnny Joint needs rebuilding include visible wear, cracking, or compression of the bushing material, lateral play in the joint when loaded, clunking or knocking sounds from the suspension under articulation, and visible deterioration of the side washers or snap ring. Inspect joints at every oil change interval or after any significant off-road event involving hard impacts or rock contact.
Is the CE-9110RK-BDL-4P a sufficient quantity for a complete Jeep suspension rebuild?Four joints is the typical quantity for a complete rear suspension link rebuild on most Jeep platforms when using upper and lower control arms on each side. If you are also rebuilding the front control arms or a front track bar, additional kits may be needed. Plan your rebuild quantity based on the total number of 2.5-inch standard body Johnny Joints in your specific suspension setup.
Can I rebuild the Johnny Joint while it is still installed in the arm?Typically the joint must be removed from the link to properly rebuild it. The snap ring retaining the bushing must be accessed from inside the joint housing, which generally requires removing the joint from the vehicle and disassembling it on a bench. Refer to the RockJock Johnny Joint rebuild procedure for step-by-step instructions.
Does the CE-9110RK fit narrow body 2.5-inch Johnny Joints?No. The CE-9110RK is for the standard body 2.5-inch joint only. The narrow body 2.5-inch joint uses the CE-9110NRK rebuild kit, which has different bushing dimensions. Ordering the wrong rebuild kit will result in parts that do not fit the joint correctly.
Does RockJock offer other rebuild kit sizes?Yes. RockJock offers rebuild kits for the full Johnny Joint family including the 2-inch standard body (CE-9112RK), 2-inch narrow body (CE-9112NRK), 2.5-inch narrow body (CE-9110NRK), and 2.5-inch standard body (CE-9110RK) joints. Select the rebuild kit that matches the exact joint part number installed in your suspension components.
Installation Instructions
- Safely lift and support the vehicle. Remove the worn Johnny Joint from the suspension arm or track bar by unthreading or pressing it out of the link body per the specific joint configuration.
- Clamp the joint housing in a padded vise. Remove the snap ring from the housing using snap ring pliers.
- Press or drive out the worn bushing halves and side washers from the joint housing.
- Clean the joint housing bore thoroughly, removing any debris, old bushing material, or corrosion.
- Install the new side washer into the housing, followed by the first bushing half from the CE-9110RK kit. Press the bushing in evenly using a press or appropriate socket.
- Install the second bushing half from the opposite end of the housing.
- Install the second side washer and then seat the new snap ring into the housing groove using snap ring pliers until fully seated.
- Verify the joint ball moves freely through its full range of articulation without binding.
- Reinstall the rebuilt joint into the suspension arm or track bar and thread or press into position.
- Reinstall the link on the vehicle, torque all fasteners to spec, and test for free movement through full suspension travel before driving.
