SKU: CE-9113N-14 | UPC: 810038151892

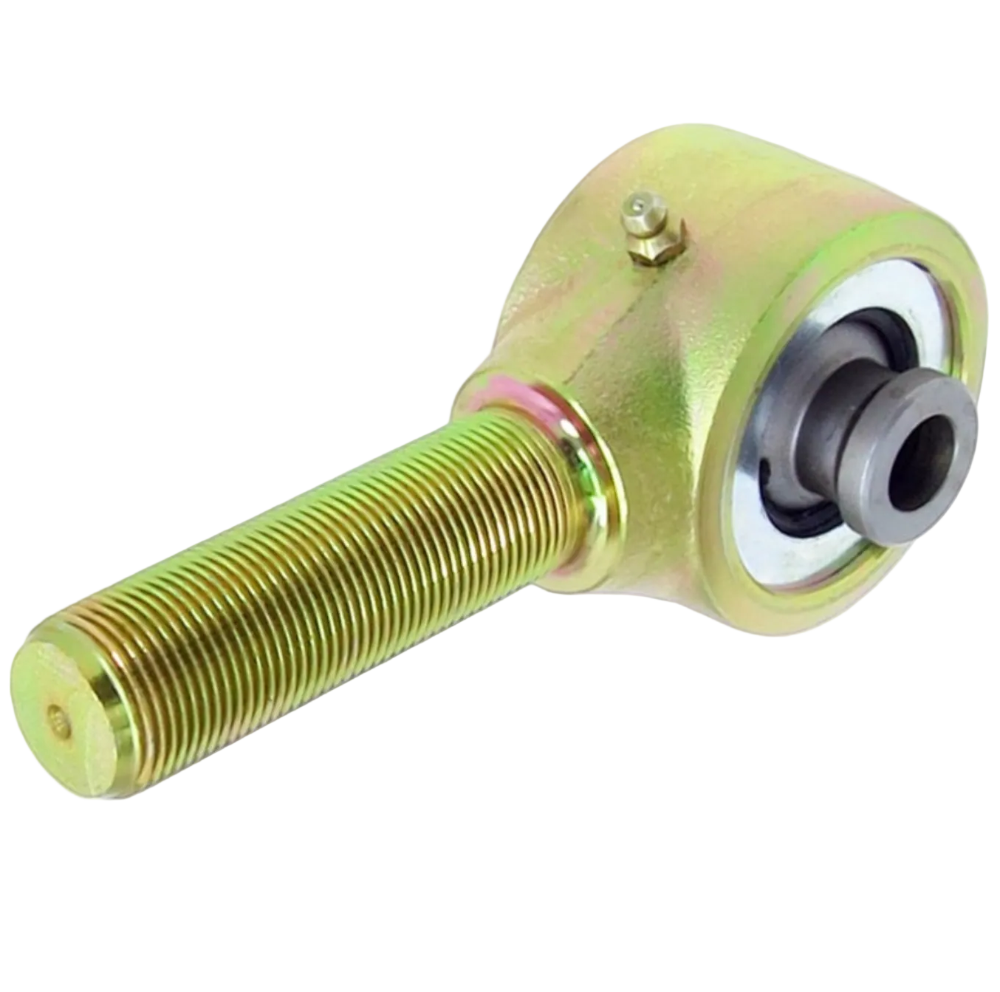

RockJock Johnny Joint Rod End – 2 1/2in Forged Narrow, 2.365in Width, .562in Ball Bore, 1in-14 RH Thread, Extended Greased
The RockJock CE-9113N-14 Johnny Joint rod end is a premium narrow forged joint built for fabricators and suspension builders needing maximum articulation and durability. This 2 1/2in diameter joint offers 40 degrees of unrestricted movement in any direction (compared to 22 degrees on standard heim joints) thanks to high-density urethane bushings that encase the heat-treated center ball. The ball is cross-drilled for thru-bolt lubrication, with a 2.365in mounting width and .562in thru-bolt hole. The shank features 2 1/4in of 1in-14 right-hand threads (extended length) and a zerk fitting for easy greasing. Finished in gold zinc plating for corrosion resistance, this joint provides cushioning and longevity that heim joints cannot match perfect for custom suspension links, control arms, or off-road builds.
Key Features
- Narrow Forged Design Ideal for tight suspension geometries and custom fabrication
- 40 Degrees Articulation Unrestricted movement in any direction for extreme flex
- High-Density Urethane Bushings Cushions impacts and reduces noise/vibration
- Heat-Treated Center Ball Cross-drilled for thru-bolt lubrication and durability
- Extended 1in-14 RH Thread Shank 2 1/4in thread length for versatile mounting
- Zerk Grease Fitting Easy maintenance and long service life
- Gold Zinc Plating Superior corrosion resistance
Specifications
| Specification | Detail |
|---|---|
| Part Number | CE-9113N-14 |
| Brand | RockJock |
| Joint Type | Johnny Joint (narrow forged) |
| Overall Diameter | 2 1/2in |
| Ball Width | 2.365in |
| Ball Bore | .562in |
| Thread Size | 1in-14 RH (right-hand) |
| Thread Length | 2 1/4in (extended) |
| Articulation | 40 degrees unrestricted |
| Finish | Gold zinc plating |
| Grease Fitting | Zerk included |
| Warranty | RockJock Limited Warranty |
Whats Included
- One RockJock Johnny Joint rod end (CE-9113N-14)
Product Notes
- Narrow design ideal for tight suspension links and custom fabrication
- Superior articulation and cushioning compared to heim joints
- Greaseable for long service life in demanding off-road conditions
- Perfect for control arms, track bars, panhard bars, or drag links
Installation Notes
- Threaded shank installs with jam nuts (not included)
- Use appropriate thru-bolt size (.562in bore)
- Grease regularly with high-quality grease
- Professional installation recommended for critical suspension components
This Part Fits
| Application | Notes |
|---|---|
| Universal | M12x1.25 or similar threaded applications requiring 1in-14 RH extended shank |
Why Choose RockJock Johnny Joint Rod Ends?
- 40 degrees unrestricted articulation – far superior to heim joints
- High-density urethane bushings provide cushioning and longevity
- Heat-treated components and greaseable design for extreme durability
- Trusted in off-road racing and custom suspension builds
Frequently Asked Questions
-
Q: What is the difference between narrow and standard Johnny Joints?
A: Narrow (like this model) is designed for tight spaces and custom links with reduced width. -
Q: Can this replace a heim joint in my suspension?
A: Yes, offers more articulation and cushioning; verify thread and bore size match. -
Q: Is it greaseable?
A: Yes, includes zerk fitting for regular maintenance.
Shipping and Handling
- Method: UPS / FedEx Ground
- Availability: In stock ships same or next business day
- Packaging: Secure protective packaging
- Weight: Approx. 1.5 to 2 lbs
