SKU: CE-9113NL | UPC: 810038151915

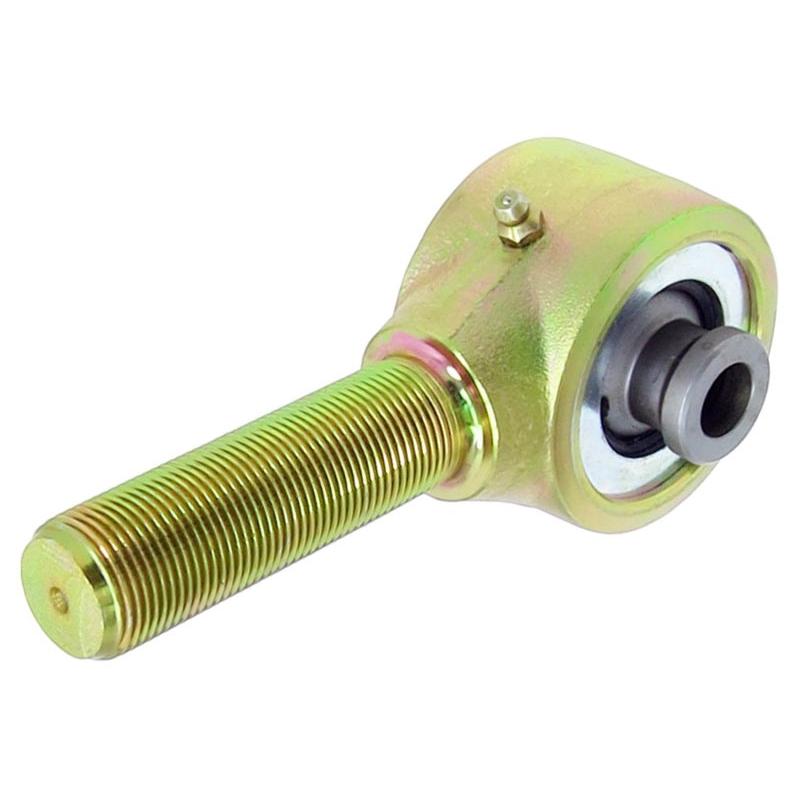

RockJock Johnny Joint Rod End 2 1/2in Forged 2.625in X .562in Ball 1in-14 LH Thread Ext. Greased for Jeep Wrangler YJ TJ LJ JK
RockJock narrow forged Johnny Joint rod ends deliver high articulation for custom suspension builds on Jeep Wrangler YJ TJ LJ and JK models. Fabricators choose this 2.5 inch diameter joint for its 40 degrees of unrestricted movement in all directions doubling the range of standard heim joints. High density urethane provides smooth cushioning while the greaseable design ensures long lasting performance in demanding off road conditions.
Key Features
- 40 Degrees Unrestricted Movement: Allows full articulation in any direction for maximum suspension travel unlike 22 degrees on heim joints
- High Density Urethane Bushings: Encases the ball for vibration damping and protection against shock loads
- Heat Treated Cross Drilled Ball: Enables thru bolt lubrication to reduce wear and extend service life
- Zerk Fitting Greaseable: Extended access for simple maintenance keeps internals lubricated
- Precision Dimensions: 2.5in diameter 2.625in mounting width .562in bore 2.25in 1in-14 left hand shank gold zinc plating
Product Notes
- Factory pre greased with extended zerk for immediate use
- Left hand threads suit specific control arm and link applications
- Compact narrow profile fits tight clearance off road setups
Installation Notes
- Professional installation recommended.
- Secure ball with .562in or 9/16in diameter thru bolt
- Matches RockJock control arms and 1in-14 threaded suspension components
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1987-1995 | Jeep | Wrangler | YJ |
| 1997-2006 | Jeep | Wrangler | TJ |
| 2004-2006 | Jeep | Wrangler | LJ |
| 2007-2018 | Jeep | Wrangler | JK |
Why Choose RockJock?
- Leaders in off road suspension components since 2003
- Johnny Joint design proven in extreme rock crawling
- USA made with forged steel for strength and reliability
Frequently Asked Questions
-
Q: Which Jeep Wrangler models use this rod end?
A: Fits YJ 1987-1995 TJ 1997-2006 LJ 2004-2006 JK 2007-2018 in control arms links and custom suspension builds -
Q: What materials and finish are used?
A: Forged steel heat treated ball urethane bushings with gold zinc plating for rust protection -
Q: What warranty coverage applies?
A: RockJock limited lifetime warranty on manufacturing defects when installed and maintained properly
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective box 3 x 3 x 8 inches
- Weight: 2.95 lbs
