SKU: CE-9114N-28 | UPC: 810038152363

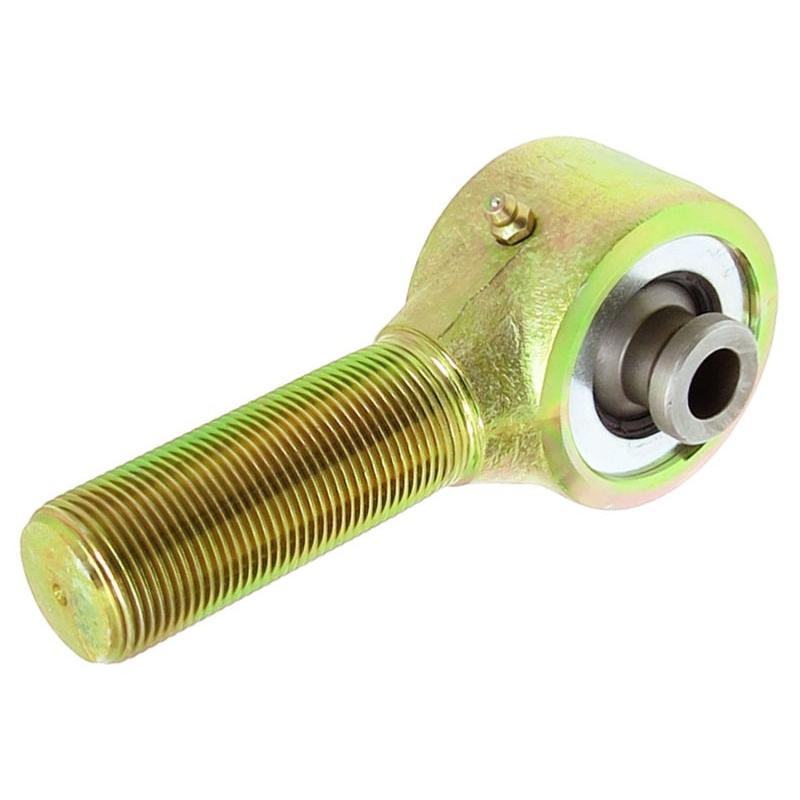

RockJock Johnny Joint Rod End 2 1/2in Forged 2.625in X .640in Ball 1 1/4in-12 RH Thread Shank for Jeep Wrangler TJ JK JL
Upgrade your off-road suspension with the RockJock narrow forged Johnny Joint rod end designed for fabricators building high-articulation systems on Jeep Wrangler TJ JK and JL models. This 2.5 inch diameter joint provides smooth operation in tight clearance applications with 2.25 inches of 1 1/4 inch-12 right hand threads. Greaseable via zerk fitting it ensures long-lasting performance in demanding rock crawling and trail conditions.
Key Features
- 40 Degrees Movement: Delivers full unrestricted articulation in all directions twice that of standard heim joints for superior suspension flex
- Urethane Bushing: High-density design encases the ball for built-in cushioning and vibration dampening unavailable in metal-on-metal joints
- Heat-Treated Ball: Cross-drilled for thru-bolt lubrication with heavy-duty side washers and snap ring for secure retention
- Narrow Forged Body: 2.5 inch diameter with 2.625 inch mounting width offset ball and .640 inch thru-hole fits tight fab spaces
- Gold Zinc Finish: Corrosion-resistant plating protects against rust in harsh off-road environments
Product Notes
- Ideal for 4-link and 5-link suspension upgrades requiring narrow rod ends
- Regular greasing extends service life in dusty and muddy conditions
- Special order item verify stock before purchase
Installation Notes
- Professional installation recommended.
- Torque fasteners to manufacturer specs using .640 inch thru-bolt
- Compatible with RockJock control arms and heim joint replacements
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2006 | Jeep | Wrangler | TJ |
| 2007-2018 | Jeep | Wrangler | JK |
| 2018+ | Jeep | Wrangler | JL |
| Universal | Custom | 4x4 Builds | - |
Why Choose RockJock?
- Proven in rock crawling competitions and extreme off-road use
- Precision-machined components built for daily abuse
- Direct replacement for factory RockJock suspension arms
Frequently Asked Questions
-
Q: Does this fit Jeep Wrangler long-arm kits?
A: Yes commonly used in RockJock 4-link and 5-link systems for TJ JK and JL Wranglers as well as custom applications -
Q: What materials are used in construction?
A: Forged steel body heat-treated chromoly ball high-density urethane bushing and gold zinc plating for durability -
Q: What maintenance is required?
A: Grease thru zerk fitting every 3-5000 miles or after water crossings to maintain smooth operation
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 6 x 6 x 6 inches
- Weight: 2.95 lbs
