SKU: CE-9114NL-28 | UPC: 810038154985

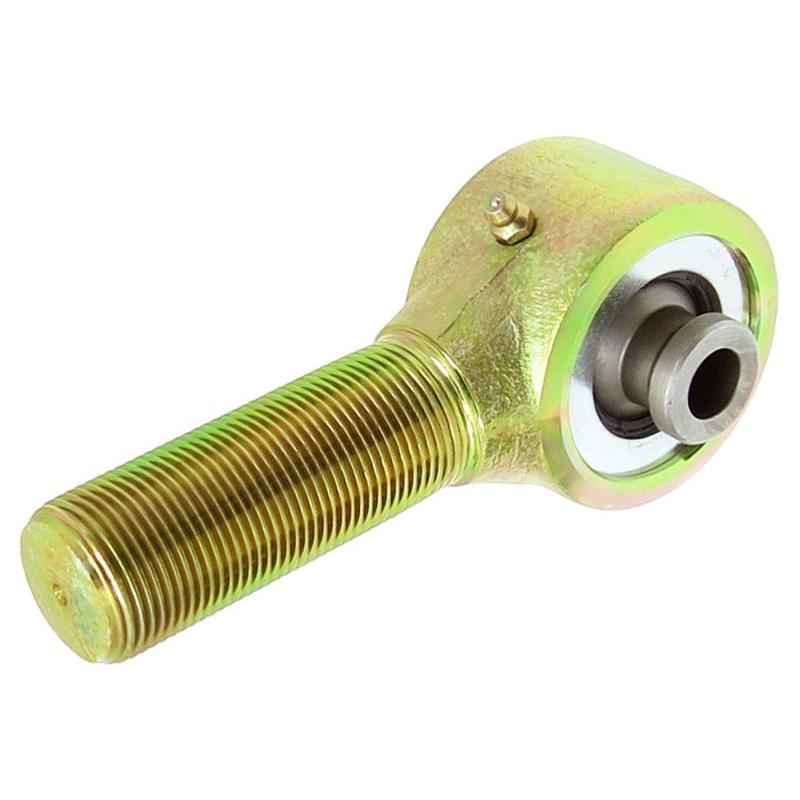

RockJock Johnny Joint Rod End 2 1/2in Forged 2.625in X .640in Ball 1 1/4in-12 LH Thread Shank for 1997-2023 Jeep Wrangler TJ JK JL
Upgrade your Jeep Wrangler TJ JK or JL suspension with the RockJock Johnny Joint rod end designed for fabricators and builders. This narrow forged joint fits custom control arms and links providing 40 degrees of unrestricted movement in all directions. The high-density urethane bushing delivers cushioning absent in heim joints while supporting heavy off-road demands.
Key Features
- 40 Degrees Articulation: Allows full misalignment in any direction twice the range of standard heim joints for smoother suspension travel.
- Urethane Bushing: Encases the ball for vibration damping and longevity under extreme conditions.
- Heat-Treated Ball: Cross-drilled for thru-bolt lubrication with zerk fitting for easy greasing.
- Forged Construction: 2 1/2in diameter body 2.625in mounting width and .625in thru-hole built for strength.
- Thread Specs: 2 1/4in of 1 1/4in-12 left hand threads on shank finished in gold zinc plating.
Product Notes
- For custom fabrication and suspension arm builds torque to manufacturer specs during assembly.
- Grease regularly using the zerk fitting to maintain performance and extend service life.
- Special order item verify stock before purchase.
Installation Notes
- Professional installation recommended.
- Use .625in diameter thru-bolt for ball mounting secure with locknuts.
- Compatible with RockJock control arms and 1 1/4in-12 shank heim replacements.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2006 | Jeep | Wrangler | TJ All |
| 2007-2018 | Jeep | Wrangler | JK All |
| 2018-2023 | Jeep | Wrangler | JL All |
| 1987-1995 | Jeep | Wrangler | YJ All |
Why Choose RockJock?
- Proven in off-road racing and rock crawling applications.
- Engineered for precision fit in high-stress suspension systems.
- Backed by Currie Enterprises manufacturing standards.
Frequently Asked Questions
-
Q: Will this fit Jeep Wrangler JK rear control arms?
A: Yes matches OEM RockJock arm specs for upper and lower links on 2007-2018 JK models. -
Q: What finish and materials are used?
A: Forged steel body with heat-treated ball high-density urethane bushing and gold zinc plating for corrosion resistance. -
Q: What maintenance is required?
A: Grease via zerk fitting every 3-5000 miles or after water crossings inspect urethane for wear.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure box 6in x 6in x 4in
- Weight: 3.95 lbs
