Click to zoom in
SKU: CE-9110P-28 | UPC: 810038150734

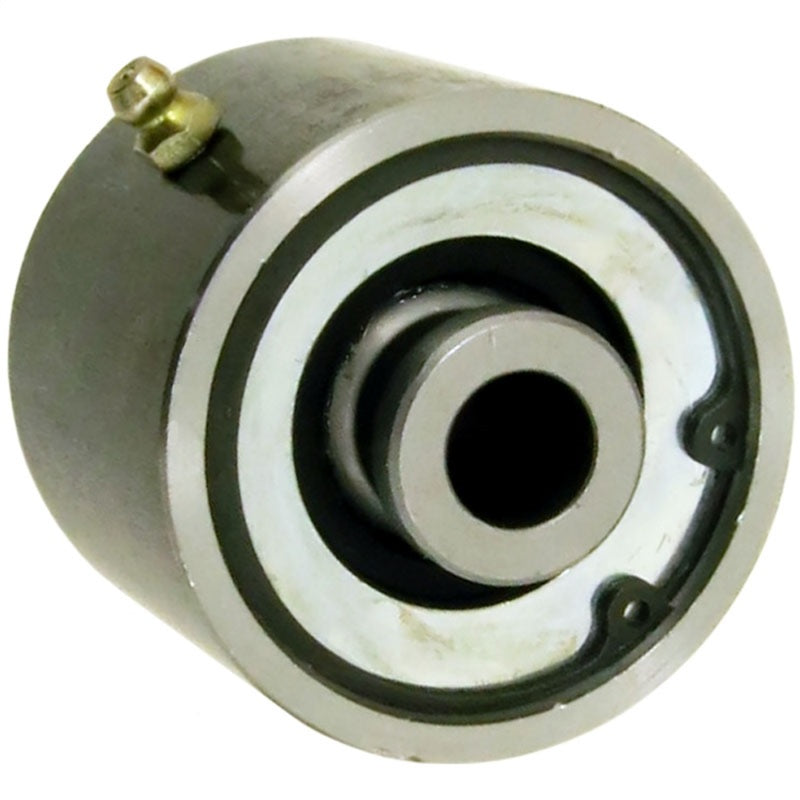

RockJock Johnny Joint Rod End 2 1/2in Weld-On 2.625in X .640in Ball Ext. Greased for 1987-2023 Jeep Wrangler
RockJocks weld-on Johnny Joint rod ends support fabricators building durable suspension systems for Jeep Wrangler YJ TJ JK JL and other off-road trucks. This 2.5in OD joint provides 30 degrees of movement in all directions with urethane cushioning for reduced vibration and wear. Heat-treated components and greasable design ensure long-term reliability in rock crawling and high-speed desert runs.
Key Features
- 30 Degrees Unrestricted Movement: Exceeds 22 degrees of standard heim joints for greater flex in demanding terrain
- High-Density Urethane Bushings: Encases ball for cushioning that absorbs shocks unlike metal-on-metal designs
- Heat-Treated Cross-Drilled Ball: Allows thru-bolt lubrication to minimize friction and extend service life
- Heavy Duty Retention System: Secured by heat-treated washers and snap ring for secure operation under load
- Weldable .180in Wall DOM Tubing: 2.5in OD 2.625in mounting width .640in thru hole with zerk fitting pre-greased
Product Notes
- Pre-assembled and greased for immediate fabrication use
- Grease every 2500 miles or after water crossings to maintain performance
- Packed in protective sleeve to prevent shipping damage
Installation Notes
- Professional installation recommended.
- Welding required. use MIG or TIG on clean DOM tubing
- Uses .640in diameter thru bolt. verify hardware compatibility
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1987-1995 | Jeep | Wrangler | YJ All |
| 1997-2006 | Jeep | Wrangler | TJ All |
| 2007-2018 | Jeep | Wrangler | JK All |
| 2018+ | Jeep | Wrangler | JL All |
Why Choose RockJock?
- Trusted by off-road racers for decades in extreme conditions
- Integrated into Currie high-performance axles and kits
- Precision machined for exact fit and consistent operation
Frequently Asked Questions
-
Q: Does this fit specific Jeep Wrangler models?
A: Weld-on design fits custom long arm or radius arm kits on YJ TJ JK JL Wrangler models listed above -
Q: What materials are in the joint?
A: .180in wall machined DOM steel shell heat-treated chromoly ball and high-density urethane bushing -
Q: What warranty coverage applies?
A: Limited lifetime warranty against manufacturing defects when installed and maintained properly
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Cardboard box 5in x 5in x 5in
- Weight: 2.1 lbs
