SKU: CE-9112N-13 | UPC: 810038150987

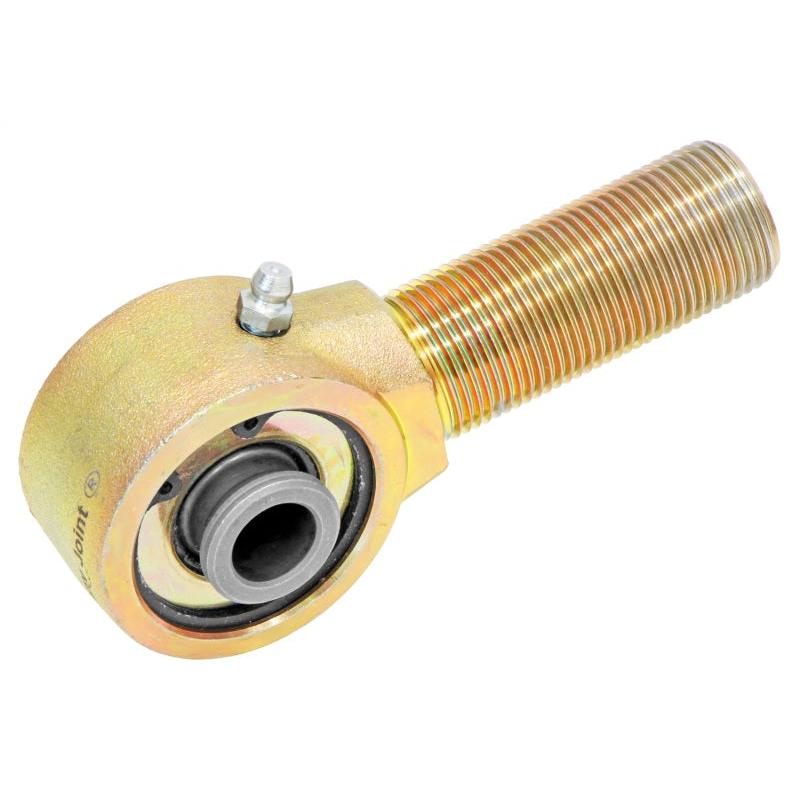

RockJock Johnny Joint Rod End 2in Forged 1.600in X .562in Ball 1in-14 RH Thread Shank Ext. Greased for Jeep Wrangler TJ JK JL
This RockJock narrow forged Johnny Joint rod end delivers 40 degrees of unrestricted movement in all directions for custom off-road suspensions on Jeep Wrangler TJ JK JL models and similar vehicles. The high-density urethane bushing provides shock-absorbing cushioning that heim joints lack while the heat-treated ball ensures durability. Fabricators rely on its precise 1.600in mounting width 0.562in thru-hole and 2 1/4in 1in-14 right hand threaded shank for tight-clearance builds.
Key Features
- 40° Misalignment: Allows full articulation in any direction twice the range of standard heim joints for better suspension geometry
- Urethane Bushing: Encases the ball to absorb impacts and vibrations reducing wear on mounts and frame
- Greaseable Design: Zerk fitting and cross-drilled heat-treated ball enable thru-bolt lubrication for long service life
- Forged Construction: Narrow 2in diameter body with heavy-duty washers snap ring and gold zinc plating resists corrosion
- Threaded Shank: 2 1/4in extended 1in-14 RH threads simplify installation in control arms and links
Product Notes
- Pre-greased and ready for immediate use in custom fabrication
- Regular greasing via zerk maintains smooth operation in dusty off-road conditions
- Compact narrow profile fits tight spaces in high-clearance suspension setups
Installation Notes
- Professional installation recommended.
- Requires 9/16in (0.562in) diameter thru-bolt and 1in-14 jam nut sold separately
- Compatible with RockJock control arms sway bar links and fabricated suspension components
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2006 | Jeep | Wrangler | TJ |
| 2007-2018 | Jeep | Wrangler | JK |
| 2018-2023 | Jeep | Wrangler | JL |
| Universal | Jeep | Custom Builds | Trucks SUVs |
Why Choose RockJock?
- Patented Johnny Joint design sets the standard for off-road spherical bearings
- Components built for extreme rock crawling and high-speed desert racing
- Precision machining ensures perfect fit in demanding suspension applications
Frequently Asked Questions
-
Q: What thread size and direction is the shank?
A: 1in-14 right hand threads with 2 1/4in shank length for secure mounting -
Q: What are the ball dimensions and finish?
A: 1.600in width x 0.562in thru-bolt hole heat-treated steel with gold zinc plating -
Q: How do I maintain this rod end?
A: Grease through the zerk fitting every 3-5000 miles or after water crossings
Shipping & Handling
- Method: Ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Protective box 6 x 6 x 6 inches
- Weight: 1.8 lbs
