A Narrow Body Joint for Firmer, Higher Articulation Trac Bar Ends

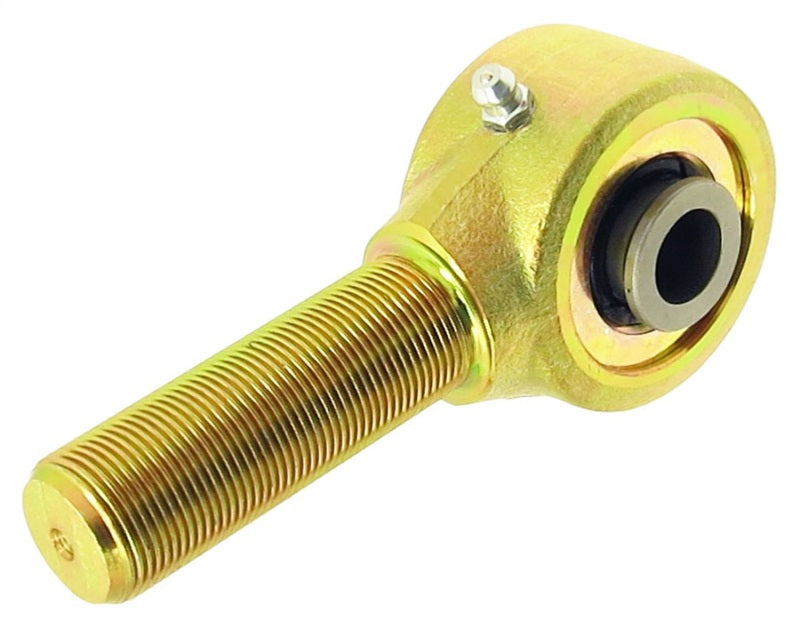

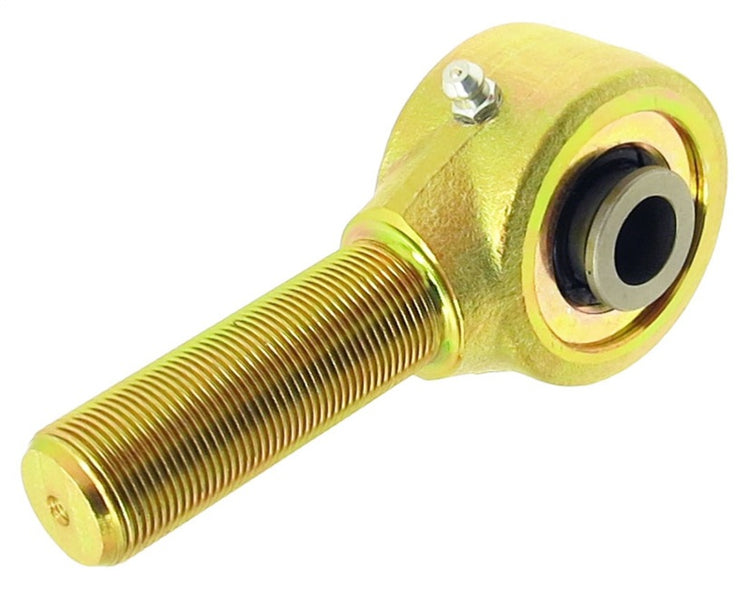

RockJock's CE-9116N-23 is a 2 in. narrow body Johnny Joint with 7/8 in.-14 right hand threads. The narrow body's one piece bushing gives a slightly firmer feel than a standard body joint while allowing up to 40 plus degrees of articulation, making it a common choice for trac bar rod ends.
Key Features
- Forged steel 2 in. narrow body construction
- 7/8 in.-14 right hand thread shank
- 1.640 in. x .640 in. thru-bolt hole pivot ball
- 25 degrees of articulation capability
- 1-piece bushing internals for a firmer feel
- Externally greasable via a 1/4 in.-28 zerk fitting
Fitment
| Year | Make | Model |
|---|---|---|
| Universal | Jeep | TJ/LJ/JK/JL/JT Trac Bar Applications |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | CE-9116N-23 |
| Joint size | 2 in. O.D. x 1.20 in. wide outer barrel |
| Thread | 7/8 in.-14 RH |
| Thread length | 2.32 in. |
| Overall length, CL to thread end | 3.750 in. |
| Ball width x bore | 1.640 in. x .640 in. |
| Articulation | 25 degrees |
| Bushing type | 1-piece |
What's Included
- 1 forged Johnny Joint rod end
About RockJock 4x4
RockJock 4x4, made by Currie Enterprises, engineers Jeep-specific control arms, Johnny Joint rod ends, Antirock sway bar systems, and Currectlync steering components for TJ, LJ, XJ, JK, JL, and JT platforms. RockJock parts are built from forged and DOM steel for off-road durability and are designed to bolt into factory mounting points.
FAQ
What is this rod end typically used for?It is commonly used as a trac bar rod end on RockJock and compatible Jeep trac bar systems.
Why choose a narrow body over a standard body joint?The narrow body's 1-piece bushing gives a firmer feel, which is preferred on components like trac bars that benefit from less deflection.
Does this joint come pre-assembled?Yes, it ships fully assembled and ready to install.
How is the joint lubricated?Through an installed 1/4 in.-28 zerk fitting.
What thread size and direction does it use?7/8 in.-14 right hand threads.
Can the internals be rebuilt?Yes, using RockJock's matching narrow body rebuild kit and the appropriate Johnny Joint tool.
What is the bore size through the ball?The ball uses a .640 in. thru-bolt hole.
Is this joint compatible with standard body Johnny Joint tools?No, narrow body joints require the narrow body specific rebuild kit, consult RockJock's parts list for the matching tool.
Installation Instructions
- Remove the trac bar or link assembly containing the old rod end.
- Thread the new Johnny Joint into the bar to the same depth as the removed joint.
- Torque the joint into the bar per the component manufacturer's specification.
- Reinstall the bar and grease the new joint through the zerk fitting.
- Cycle the suspension and verify smooth articulation before returning to normal use.
