SKU: CE-9112N-11 / UPC: 810038150963

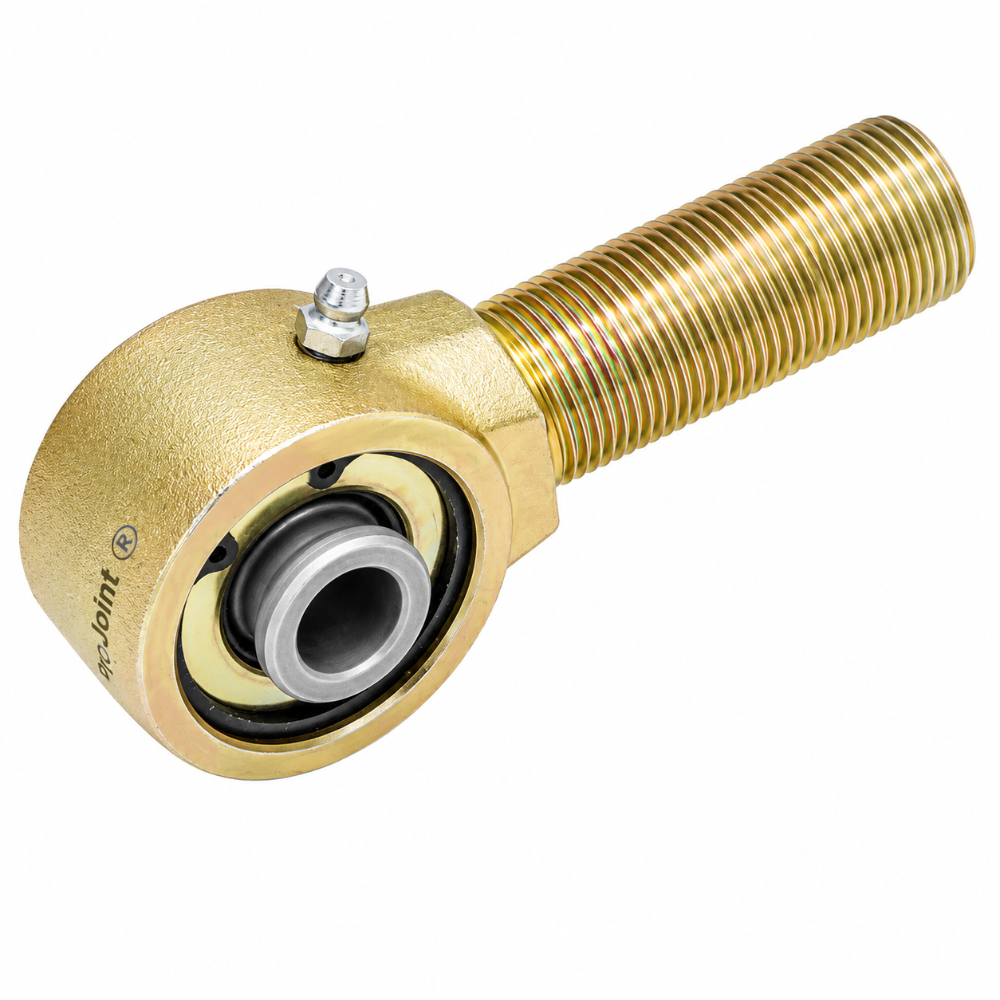

RockJock Johnny Joint Rod End 2in Narrow Forged (2.190in x 0.482in Ball, 1in-14 RH Threaded Shank)
Upgrade your suspension or custom fabrication project with the RockJock Johnny Joint Rod End. This narrow forged 2-inch Johnny Joint offers 40 degrees of unrestricted movement in any direction significantly more than a standard heim joint while providing superior cushioning through a high-density urethane bushing that encases the inner ball. Ideal for fabricators and suspension system builders, these Johnny Joints deliver smooth, quiet operation with exceptional durability for off-road, street, and performance applications.
Key Features
- 40-Degree Unrestricted Movement – Far exceeds the 22 degrees typical of heim joints
- High-Density Urethane Bushing – Provides cushioning and quiet operation
- Forged Narrow Body – Strong and compact for tight suspension applications
- 1in-14 RH Threaded Shank – 2.25 inches of thread for versatile adjustment
- Zerk Fitting – Easy greasing for long-term maintenance
- Gold Zinc Plating – Excellent corrosion resistance
Specifications
| Detail | Value |
|---|---|
| Brand | RockJock |
| Type | Johnny Joint Rod End (Narrow Forged) |
| Ball Diameter | 2.190 inches |
| Thru Bolt Hole | 0.482 inches |
| Thread Size | 1in-14 RH |
| Thread Length | 2.25 inches |
| Finish | Gold Zinc Plating |
| Country of Origin | United States |
| Warranty | RockJock Limited Warranty |
Whats Included
- One (1) RockJock Johnny Joint Rod End
Product Notes
- Heat-treated center ball cross-drilled for lubrication
- Internals retained with heavy-duty heat-treated side washers and snap ring
- Professional installation and proper torque recommended
This Part Fits
| Application | Notes |
|---|---|
| Universal Fabrication | Suspension systems, control arms, and custom builds |
Why Choose RockJock?
- Specialist in premium off-road suspension components and Johnny Joints
- Superior movement and cushioning compared to traditional heim joints
- High-quality forged construction with precision engineering
- Trusted by serious off-road builders and fabricators
Frequently Asked Questions
- Q: What is the advantage of a Johnny Joint over a heim joint?
- A: It offers 40 degrees of movement versus 22 degrees, plus urethane cushioning for smoother, quieter operation.
- Q: Is this a right-hand thread?
- A: Yes. It features 1in-14 right-hand threads with 2.25 inches of thread length.
- Q: Is professional installation recommended?
- A: Yes. Proper installation and alignment are critical for safety and suspension performance.
