SKU: CE-9112NP | UPC: 810038151373

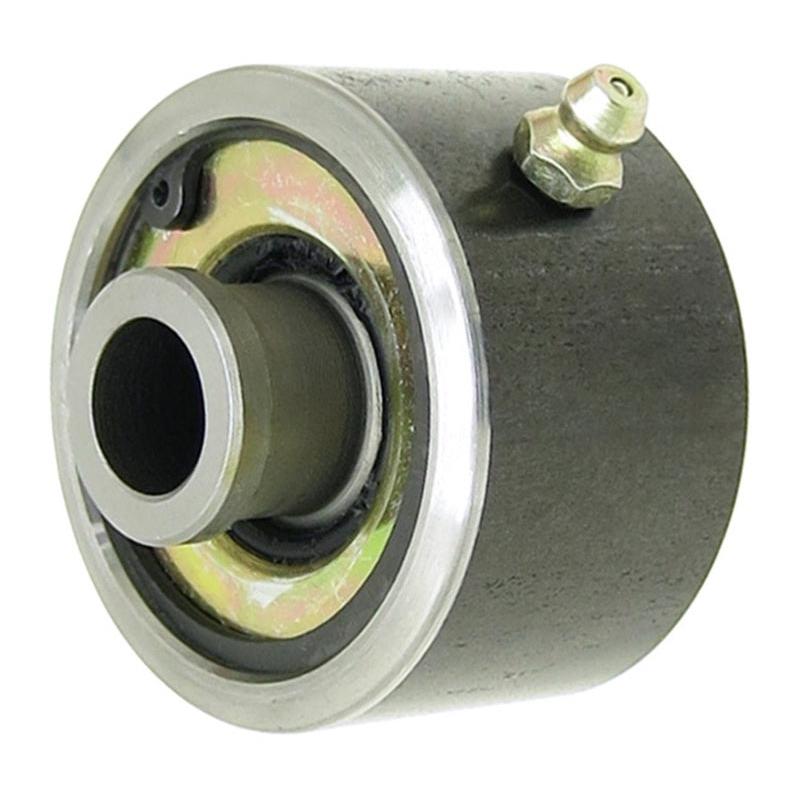

RockJock Johnny Joint Rod End 2in Narrow Weld-On 1.600in X .480in Ball Ext. Greased Fits Jeep Wrangler TJ JK JL
RockJock narrow weld-on Johnny Joint rod ends deliver 40 degrees of unrestricted movement in all directions for custom suspension builds on Jeep Wrangler TJ, JK, and JL models. These rod ends feature a high-density urethane bushing that provides cushioning unavailable in standard heim joints, ensuring smoother articulation on rough terrain. Built for fabricators, this 2 inch OD narrow body version supports 1.600 inch mounting width and .480 inch thru bolt hole.
Key Features
- 40 Degrees Articulation: Allows full range motion in any direction, doubling the 22 degrees of a heim joint for better suspension flex.
- Urethane Bushing: High-density design encases the ball for vibration dampening and cushioning during off-road use.
- Heat-Treated Ball: Cross-drilled for thru-bolt lubrication, with internals secured by two heavy-duty washers and snap ring.
- Weldable Shell: .180 inch wall machined DOM steel tubing with zerk fitting for easy greasing and maintenance.
- Narrow Body Design: 2 inch outer diameter, 1.600 inch mounting width, and .480 inch hole for precise fit in tight suspension setups.
Product Notes
- Designed for welding into custom control arms or links during fabrication.
- Grease regularly through zerk fitting to maintain smooth operation and longevity.
- Packaged securely to prevent damage during transit.
Installation Notes
- Professional installation recommended.
- Welding required. clean and prep surfaces for strong DOM steel bonds.
- Requires .480 inch diameter thru bolt. supplied separately.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1987-1995 | Jeep | Wrangler | YJ All |
| 1997-2006 | Jeep | Wrangler | TJ All |
| 2007-2018 | Jeep | Wrangler | JK All |
| 2018+ | Jeep | Wrangler | JL All |
| Universal | All | Off-Road | Custom Fab |
Why Choose RockJock?
- Established leader in off-road suspension components for decades.
- Components endure extreme rock crawling and high-speed desert runs.
- Engineered with tight tolerances for reliable performance in custom builds.
Frequently Asked Questions
-
Q: Is this Johnny Joint compatible with Jeep Wrangler 4-link kits?
A: Yes, ideal for RockJock or custom 4-link systems on TJ, JK, JL Wranglers as weld-on replacement or build component. -
Q: What materials are used in construction?
A: Heat-treated steel ball, high-density urethane bushing, .180 wall DOM steel outer shell. -
Q: What maintenance is required?
A: Grease via zerk fitting every 3,000 miles or after water crossings to keep urethane bushing and ball lubricated.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure box 5in x 5in x 5in
- Weight: 1.5 lbs
