SKU: CE-9112P-12 / UPC: 810038151489

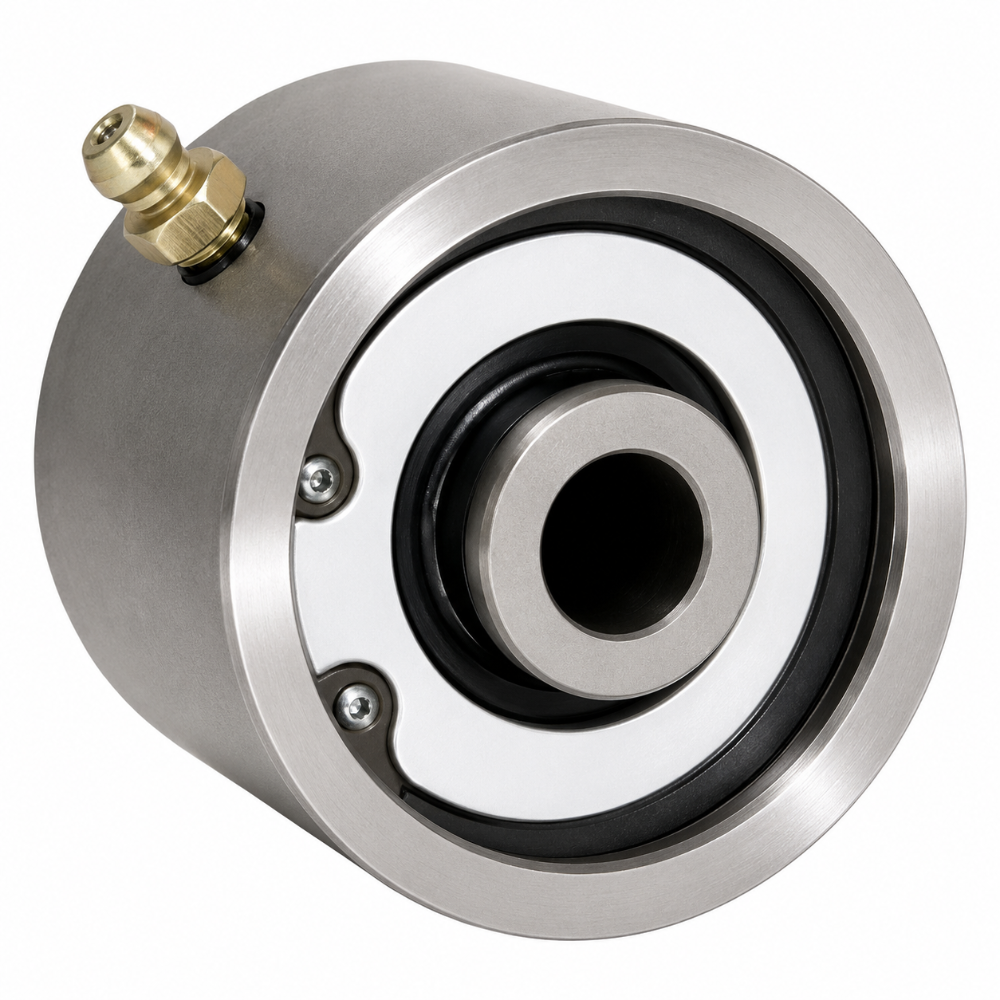

RockJock Johnny Joint Rod End 2in Weld-On (2in x .500in Ball, Extended Greased)
Enhance your custom suspension or fabrication project with the RockJock 2in Weld-On Johnny Joint Rod End. This heavy-duty joint offers 30 degrees of unrestricted movement in any direction significantly more than a standard heim joint while providing superior cushioning through high-density urethane bushings that encase the inner ball. Perfect for fabricators and suspension builders, it features weldable DOM tubing, a zerk fitting for easy greasing, and heat-treated components for maximum strength and longevity.
Key Features
- 30-Degree Unrestricted Movement – Superior articulation compared to heim joints
- High-Density Urethane Bushing – Excellent cushioning and quiet operation
- Weld-On Design – .180 in. wall machined DOM tubing for easy welding
- Zerk Fitting – Convenient greasing for long-term maintenance
- Heat-Treated Center Ball – Cross-drilled for lubrication and maximum durability
Specifications
| Detail | Value |
|---|---|
| Brand | RockJock |
| Type | Johnny Joint Rod End (Weld-On) |
| Ball Diameter | 2 inches |
| Mounting Width | 2 inches |
| Thru Bolt Hole | 0.500 inches |
| Tube Wall Thickness | 0.180 inches |
| Finish | Gold Zinc Plating |
| Country of Origin | United States |
| Warranty | RockJock Limited Warranty |
Whats Included
- One (1) RockJock 2in Weld-On Johnny Joint Rod End
Product Notes
- Internals retained with heavy-duty heat-treated side washers and snap ring
- Professional welding and installation recommended
This Part Fits
| Application | Notes |
|---|---|
| Universal Fabrication | Suspension systems, control arms, and custom builds |
Why Choose RockJock?
- Specialist in premium off-road suspension components and Johnny Joints
- Superior movement and cushioning compared to traditional heim joints
- High-quality forged and machined construction with precision engineering
- Trusted by serious off-road builders and fabricators
Frequently Asked Questions
- Q: What is the advantage of a Johnny Joint over a heim joint?
- A: It offers 30 degrees of movement versus 22 degrees, plus urethane cushioning for smoother, quieter operation.
- Q: Is this weld-on?
- A: Yes. It features weldable .180 in. wall machined DOM tubing.
- Q: Is professional installation recommended?
- A: Yes. Proper welding and alignment are critical for safety and suspension performance.
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock – ships same or next business day
- Packaging: Secure RockJock retail packaging
