A 200 Percent Stronger Replacement Tie Rod Bar

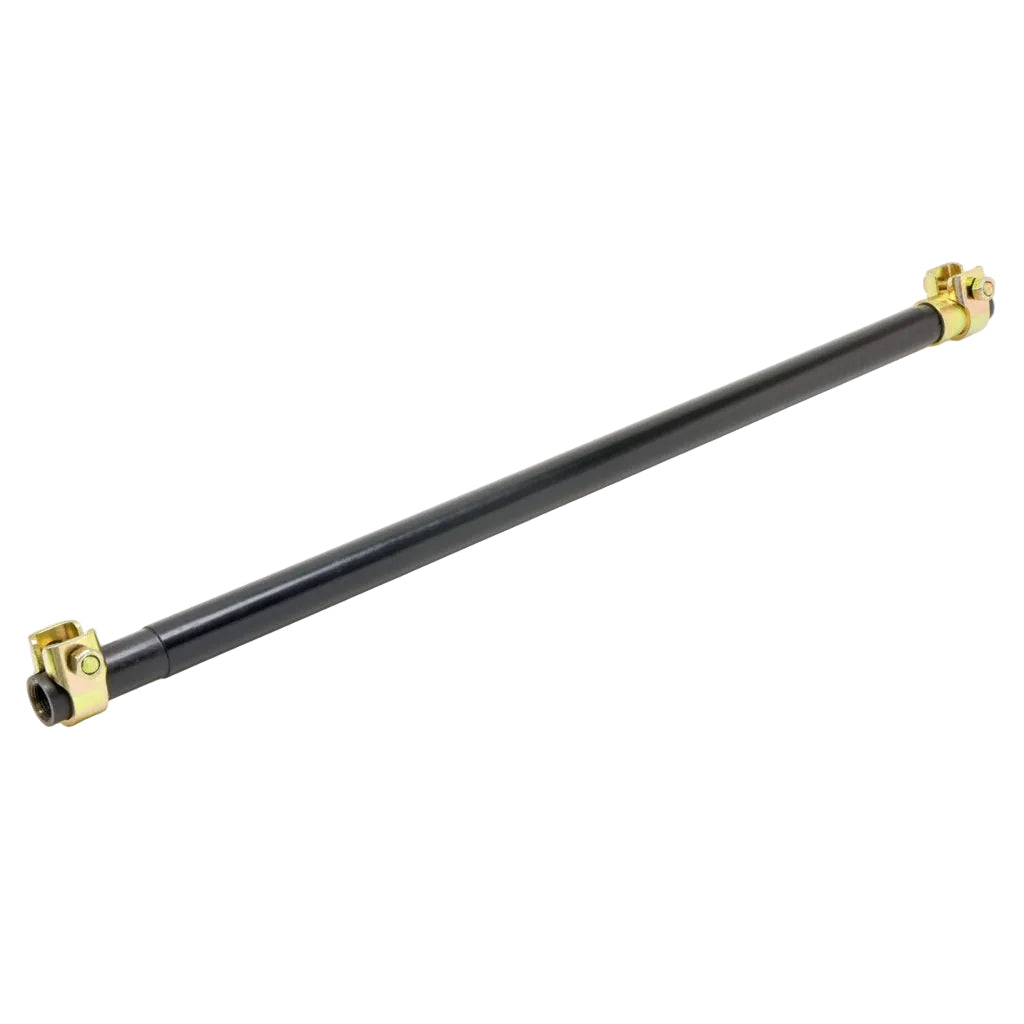

RockJock's CE-9701TRN tie rod bar is rated at 200 percent stronger than the factory tie rod, built from solid 1 1/4 in. diameter alloy steel with larger forged 22mm right and left hand threads. This bar is sold as a replacement part for an existing RockJock Currectlync system and is not a direct fit for factory steering components.
Key Features
- 1 1/4 in. diameter solid alloy steel construction
- Rated 200 percent stronger than stock tie rod components
- 22mm x 1.5 RH/LH forged threads
- Includes heavy duty oversized pinch clamps
- Gloss black paint, ready to install
Fitment
| Year | Make | Model |
|---|---|---|
| 1997-2006 | Jeep | Wrangler (TJ) |
| 2004-2006 | Jeep | Wrangler Unlimited (LJ) |
| 1984-2001 | Jeep | Cherokee (XJ) |
| 1986-1992 | Jeep | Comanche (MJ) |
| 1993-1998 | Jeep | Grand Cherokee (ZJ) |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | CE-9701TRN |
| Length | 35 1/4 in. |
| Material | 1 1/4 in. dia. solid alloy steel |
| Threads | 22mm x 1.5 RH/LH |
| Clamps | Oversized heavy duty steel pinch clamps |
| Finish | Gloss black paint |
| Compatibility | Replacement for an existing RockJock CE-9701 Currectlync system only |
What's Included
- 1 tie rod bar
- 2 pinch clamps
About RockJock 4x4
RockJock 4x4, made by Currie Enterprises, engineers Jeep-specific control arms, Johnny Joint rod ends, Antirock sway bar systems, and Currectlync steering components for TJ, LJ, XJ, JK, JL, and JT platforms. RockJock parts are built from forged and DOM steel for off-road durability and are designed to bolt into factory mounting points.
FAQ
Will this tie rod bar fit factory steering components?No, it is a replacement part for an existing RockJock CE-9701 Currectlync system only and is not compatible with stock tie rods.
What tie rod ends fit this bar?RockJock's CE-9701TRR and CE-9701TRL tie rod ends thread onto this bar.
How much stronger is this bar than stock?RockJock rates it at 200 percent stronger than the factory tie rod.
What size threads does the bar use?22mm x 1.5 right and left hand forged threads.
Does the bar come painted?Yes, it is finished in gloss black paint and ready to install.
What clamps are used to secure the tie rod ends?Oversized heavy duty steel pinch clamps are included.
What is the overall bar length?35 1/4 in.
Can this bar be used on a vehicle without the CE-9701 system already installed?No, it is intended as a service replacement part for vehicles already running the CE-9701 Currectlync system.
Installation Instructions
- Support the vehicle and remove the existing Currectlync tie rod assembly.
- Loosen the pinch clamps and separate the tie rod ends from the worn bar.
- Install the tie rod ends onto the new CE-9701TRN bar to the same thread depth as removed.
- Tighten the pinch clamps to secure the tie rod ends in position.
- Reinstall the assembly and check toe alignment before returning to normal driving.
