SKU: RY-K24-BASE-FRONTVSS

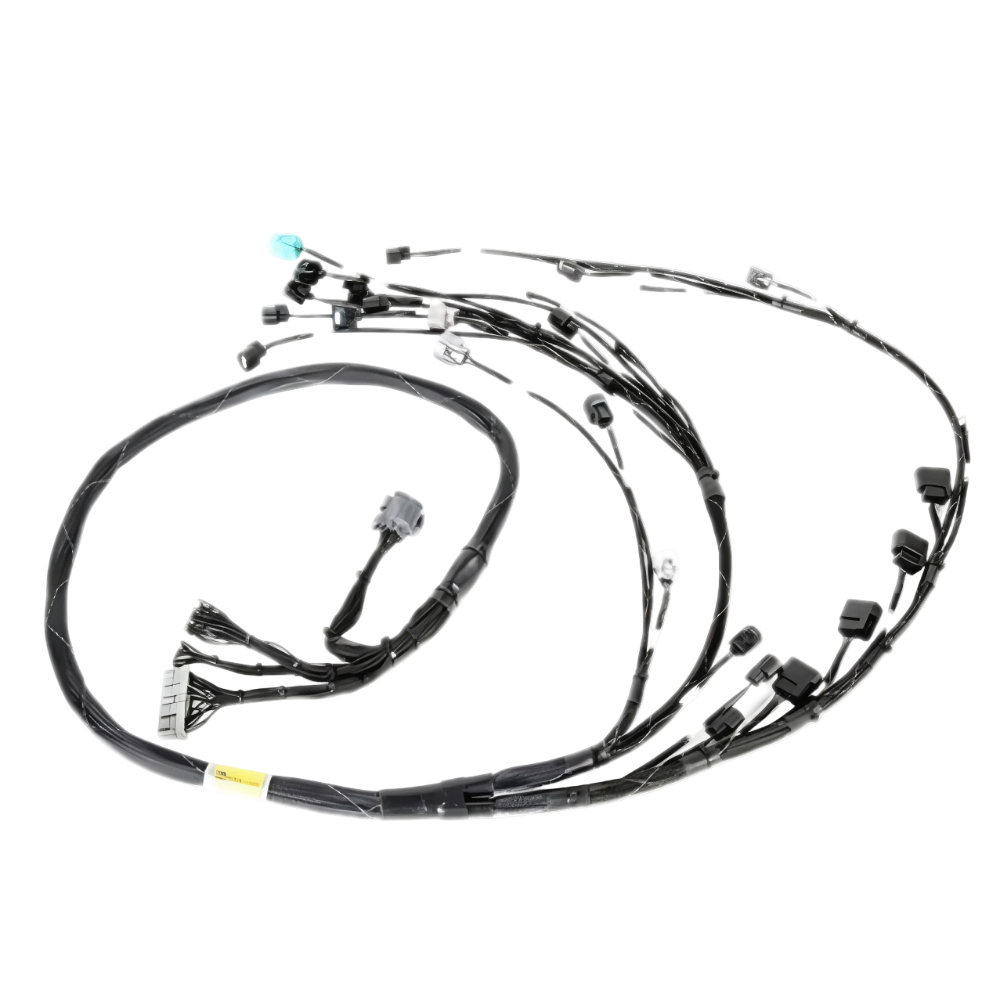

Rywire Honda K24 Tucked Engine Harness with 02-04 Crank and Knock Sensors (Front VSS Position)
Discover the Rywire dedicated tucked engine harness engineered for Honda K24 engines featuring 2002-2004 crank and knock sensor configurations in the front vehicle speed sensor (VSS) position. This Version 2 design delivers straightforward integration into K-series swaps, supporting clean firewall routing through the center or to the right side ideal for right-hand-drive (RHD) setups while fitting left-hand-drive (LHD) chassis without compromise. It clears aggressive headers easily, ensuring a tidy engine bay that maintains full electrical functionality for daily driving or track demands.
Crafted with new OEM-style connectors crimped using pneumatic tools for consistent, secure contacts, every circuit undergoes pin-to-pin testing and resistance verification to eliminate voltage drops. Protected shielding covers high-interference lines, and white ID tags simplify plug-in during installs. Paired with Rywire's installation support and troubleshooting, this harness stands as the dependable pick for builders seeking hassle-free K24 performance in swapped vehicles.
Vehicle Fitment
Compatible with OBD2 K20 and K24 engines (2002-2004 sensor styles) in manual transmission swaps. Confirmed applications include:
- 1988-1991 Honda Civic (EF chassis)
- 1992-1995 Honda Civic (EG chassis)
- 1996-2000 Honda Civic (EK chassis)
- 1988-1991 Honda CRX
- 2002-2006 Acura RSX (DC5 chassis) with K24A2
Other Honda/Acura chassis supporting K-series conversions, such as 1994-2001 Integra (DC2) or 1990-2001 NSX—verify with chassis adapter for interior ECU plug.
Select transmission type (manual) at purchase for precise reverse lockout and starter signal wiring.
What's Included in Your Purchase
This complete engine harness kit arrives ready for install, with no core exchange required. Key components:
- VTEC solenoid connector
- VTC actuator connector
- Oil pressure sending unit connector
- Crankshaft position sensor (CKP) connector (2002-2004 K24 grey style)
- Ignition coils 1-4 connectors
- Camshaft position sensor (CPS) connector (exhaust side)
- Top dead center (TDC) sensor connector (intake side)
- Engine coolant temperature (ECT) sensor connector (2002-2004 K20 style)
- Knock sensor (KS) connector (2002-2004 K24 small style)
- Intake air temperature (IAT) sensor connector
- Alternator connector (2002-2004 K20 style)
- Manifold absolute pressure (MAP) sensor connector
- Throttle position sensor (TPS) connector
- Idle air control motor connector
- Electronic vehicle speed sensor (VSS) connector (front position routing)
- Fuel injectors 1-4 connectors
- Water temperature (H2O) sending unit connector (for gauge cluster)
- Reverse lights connector
- Reverse lockout solenoid connector
- Starter signal connector
- ECU plugs A and B (OBD2 compatible)
- Power distribution cap
- Main ground connector
- Two extra wires for custom sensor additions (e.g., boost or wideband)
Optional add-ons available: K-series chassis computer adapter ($329.99), one-piece charge harness (+$40 for starter/alternator integration), VTEC pressure switch plug bolt, or Rywire engine ground kit.
Specifications and Build Details
- Part Number: RY-K24-BASE-FRONTVSS
- Wire Configuration: Budget-grade wiring in expandable black loom (matches Mil-Spec layout but with cost-effective materials)
- Sensor Compatibility: Tailored for 2002-2004 K24 CKP (grey) and KS (small); uses 2002-2004 K20 ECT and alternator styles
- ECU Support: Works with stock OBD2 or aftermarket ECUs (adapter may be needed for chassis interior harness)
- Wiring Logic: TDC on intake, CPS on exhaust (reversible via A25/A26 ECU pins if preferred)
- Testing and Quality: Full continuity check, resistance validated for stable power delivery
- Warranty: Covered against defects with dedicated phone support non-refundable once installed
Shipping and Packaging
- Part Weight: Approximately 4-5 lbs (based on similar K-series harnesses)
-
Box Dimensions: 12 in (width) x 2 in (height) x 12 in (depth)
For K24 enthusiasts tackling swaps into classic Civics or modern RSX builds, the RY-K24-BASE-FRONTVSS provides the precise wiring foundation that keeps systems running smooth under boost or at redline. Built by Rywire in the USA with 17+ years of harness expertise, it's the go-to for reliable K-series electricals that outpace generic options in routing flexibility and long-term durability.
