Skyjacker 1987-1987 Chevrolet V10 Pickup Black Max Shock Absorber

Restore Ride Control To Classic Chevrolet And GMC 4x4s

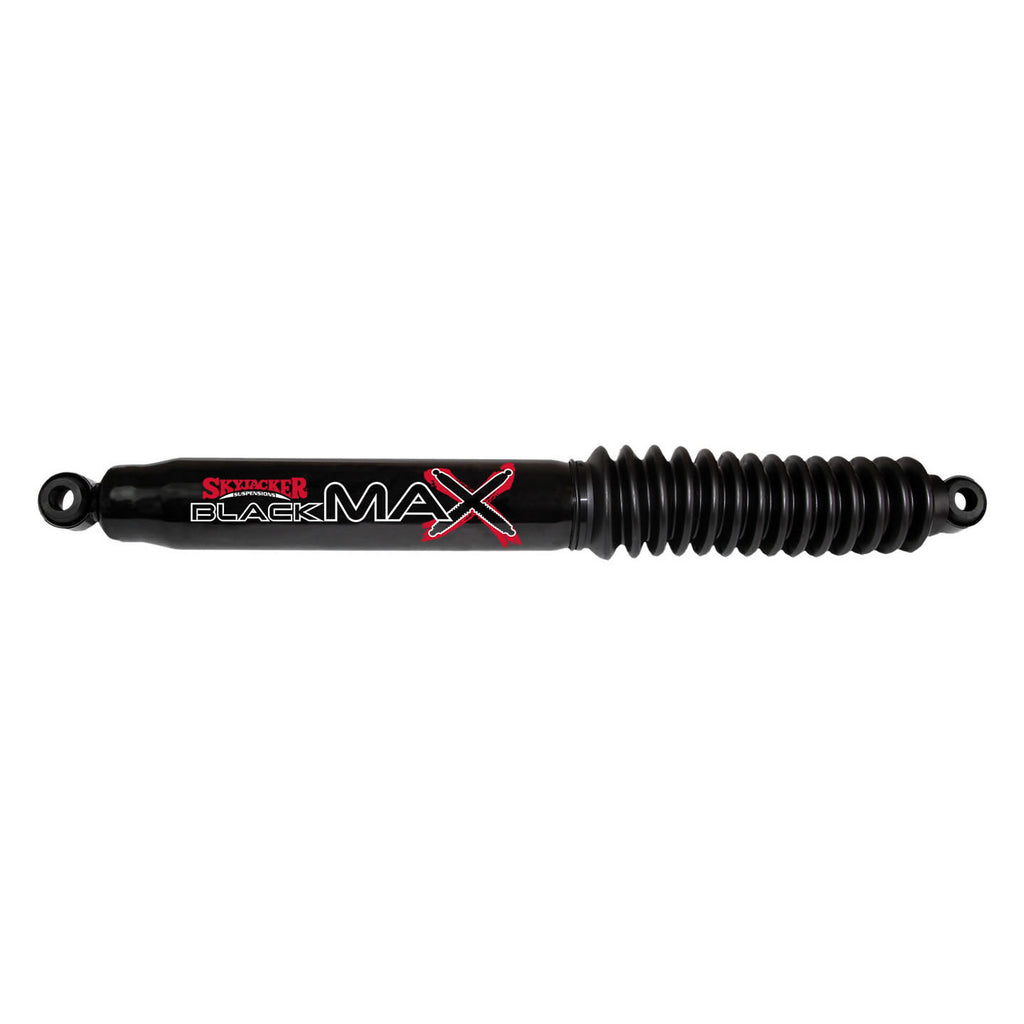

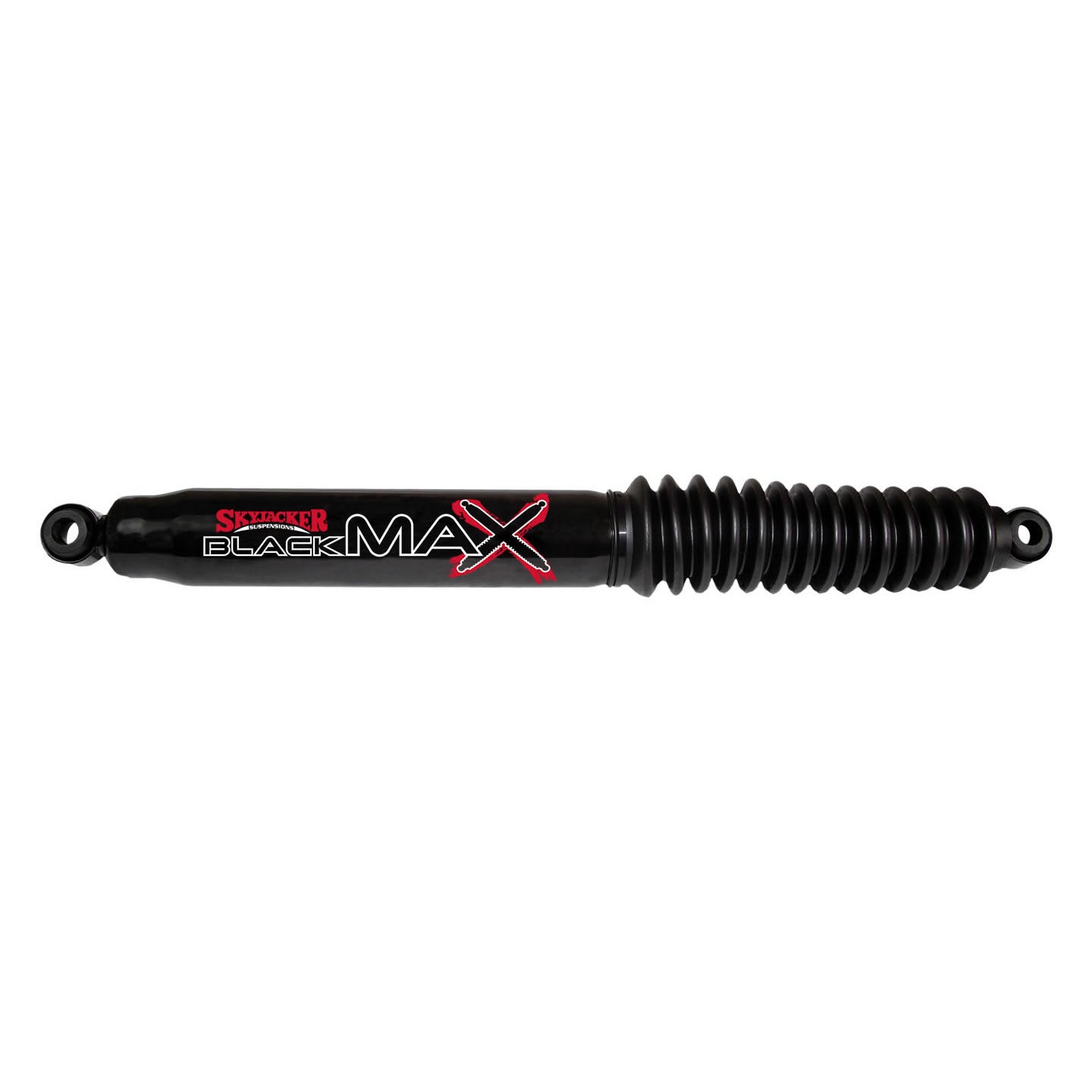

The Skyjacker B8543 Black Max shock absorber is a twin-tube, foam-cell hydraulic shock engineered to deliver smooth, controlled damping for classic Chevrolet and GMC K-Series and Suburban trucks. It uses a nitrogen-charged foam cell design that reduces fluid aeration and fade during extended highway driving, towing, or light off-road use. A chrome-plated shaft and arc-welded mounts resist corrosion and hold up to repeated compression cycles, while a sintered iron piston and 180-degree multi-stage valving deliver soft-ride comfort without letting the vehicle feel disconnected from the road. The B8543 is a direct bolt-on replacement, matching factory shock length and mounting hardware so installation does not require any drilling, cutting, or additional parts.

Key Features

• Twin-tube foam-cell hydraulic design reduces fluid aeration for consistent damping
• Chrome-plated shaft resists pitting and corrosion over the life of the shock
• Arc-welded mounts add strength at the highest-stress connection points
• Sintered iron piston with 180-degree multi-stage valving for soft-ride comfort tuning
• Direct bolt-on replacement using factory mounting locations and hardware
• Backed by a Skyjacker Limited Lifetime Warranty against defects in materials and workmanship

Fitment

Specifications

What's Included

• 1 x Skyjacker Black Max Shock Absorber
• Mounting hardware included where applicable per factory attachment style

About Skyjacker

Skyjacker has manufactured suspension components in West Monroe, Louisiana since 1970. The company builds and tests its lift kits, shocks, and suspension components in-house, and every Black Max shock is backed by a Skyjacker Limited Lifetime Warranty. Skyjacker suspension products are used across street, off-road, and towing applications by builders who need parts engineered to hold up over time.

Related Parts

• Shop All Suspension Components
• Shop All Skyjacker Products
• Shop All Shocks and Struts

FAQ

The B8543 is a Skyjacker Black Max twin-tube foam-cell hydraulic shock absorber built as a direct bolt-on replacement for classic Chevrolet and GMC K-Series and Suburban trucks.

Yes. The B8543 is designed to bolt directly into the factory mounting locations without drilling, cutting, or additional parts.

The B8543 is covered by a Skyjacker Limited Lifetime Warranty against defects in materials and workmanship.

The B8543 is designed for stock ride height applications. For lifted or leveled setups, check Skyjacker's lift-specific shock length before ordering.

The B8543 uses a twin-tube foam-cell hydraulic design with sintered iron piston and 180-degree multi-stage valving for soft-ride comfort tuning.

Yes. A worn factory shock loses damping control over time, and the B8543 restores consistent, controlled compression and rebound.

Yes. The foam-cell design resists fluid aeration and fade, which helps maintain damping control under towing loads.

No special tools are required beyond standard hand tools and a torque wrench for factory-spec fastener tightening.

Install Instructions

1. Raise and support the vehicle on jack stands, then remove the wheel if needed for clearance
2. Support the axle or control arm so it does not drop suddenly once the shock is disconnected
3. Remove the upper and lower mounting hardware securing the factory shock
4. Remove the factory shock absorber from the vehicle
5. Position the new Skyjacker Black Max shock absorber into the upper and lower mounts
6. Install and hand-tighten the upper and lower mounting hardware
7. Torque all mounting hardware to the manufacturer's specification
8. Reinstall the wheel if removed, lower the vehicle, and repeat on the opposite side
