Twin-Tube Damping Built For Daily Driving And Light Off-Road Duty

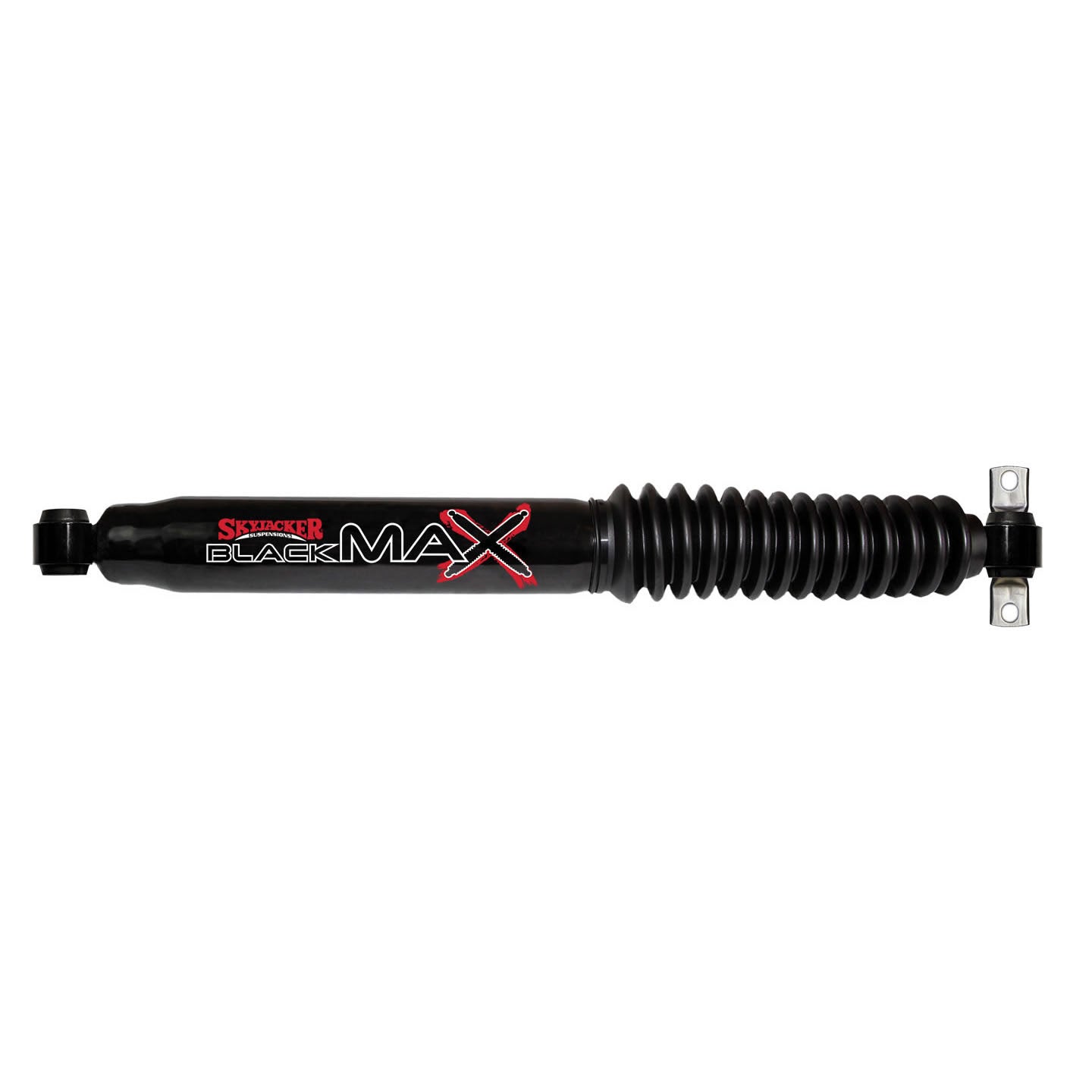

The Skyjacker B8529 Black Max shock absorber is a twin-tube, foam-cell hydraulic shock engineered to deliver smooth, controlled damping for Mazda Navajo, Ford Explorer, Dodge Dakota, and Hummer H3. It uses a nitrogen-charged foam cell design that reduces fluid aeration and fade during extended highway driving, towing, or light off-road use. A chrome-plated shaft and arc-welded mounts resist corrosion and hold up to repeated compression cycles, while a sintered iron piston and 180-degree multi-stage valving deliver soft-ride comfort without letting the vehicle feel disconnected from the road. The B8529 is a direct bolt-on replacement, matching factory shock length and mounting hardware so installation does not require any drilling, cutting, or additional parts.
Key Features
- Twin-tube foam-cell hydraulic design reduces fluid aeration for consistent damping
- Chrome-plated shaft resists pitting and corrosion over the life of the shock
- Arc-welded mounts add strength at the highest-stress connection points
- Sintered iron piston with 180-degree multi-stage valving for soft-ride comfort tuning
- Direct bolt-on replacement using factory mounting locations and hardware
- Backed by a Skyjacker Limited Lifetime Warranty against defects in materials and workmanship
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 1987-1996 | Dodge | Dakota | All Available Trims |
| 1991-1994 | Ford | Explorer | All Available Trims |
| 2006-2010 | Hummer | H3 | All Available Trims |
| 1991-1994 | Mazda | Navajo | All Available Trims |
Specifications
| Detail | Value |
|---|---|
| Brand | Skyjacker |
| Product Line | Black Max |
| MPN | B8529 |
| UPC | 803696239354 |
| Weight | 6.10 lbs |
| Design | Twin-Tube Foam-Cell Hydraulic |
| Shaft Finish | Chrome-Plated |
| Piston Type | Sintered Iron, 180-Degree Multi-Stage Valving |
| Mount Type | Arc-Welded, Factory-Style Bolt-On |
| Warranty | Skyjacker Limited Lifetime Warranty |
What's Included
- 1 x Skyjacker Black Max Shock Absorber
- Mounting hardware included where applicable per factory attachment style
About Skyjacker
Skyjacker has manufactured suspension components in West Monroe, Louisiana since 1970. The company builds and tests its lift kits, shocks, and suspension components in-house, and every Black Max shock is backed by a Skyjacker Limited Lifetime Warranty. Skyjacker suspension products are used across street, off-road, and towing applications by builders who need parts engineered to hold up over time.
Related Parts
FAQ
What is the B8529?The B8529 is a Skyjacker Black Max twin-tube foam-cell hydraulic shock absorber built as a direct bolt-on replacement for Mazda Navajo, Ford Explorer, Dodge Dakota, and Hummer H3.
Is the B8529 a direct replacement for the factory shock?Yes. The B8529 is designed to bolt directly into the factory mounting locations without drilling, cutting, or additional parts.
What warranty does the B8529 carry?The B8529 is covered by a Skyjacker Limited Lifetime Warranty against defects in materials and workmanship.
Does the B8529 work with a lifted or leveled suspension?The B8529 is designed for stock ride height applications. For lifted or leveled setups, check Skyjacker's lift-specific shock length before ordering.
What type of damping does the B8529 use?The B8529 uses a twin-tube foam-cell hydraulic design with sintered iron piston and 180-degree multi-stage valving for soft-ride comfort tuning.
Will the B8529 improve ride comfort over a worn factory shock?Yes. A worn factory shock loses damping control over time, and the B8529 restores consistent, controlled compression and rebound.
Can the B8529 be used for towing?Yes. The foam-cell design resists fluid aeration and fade, which helps maintain damping control under towing loads.
Does the B8529 require any special tools to install?No special tools are required beyond standard hand tools and a torque wrench for factory-spec fastener tightening.
Install Instructions
- Raise and support the vehicle on jack stands, then remove the wheel if needed for clearance
- Support the axle or control arm so it does not drop suddenly once the shock is disconnected
- Remove the upper and lower mounting hardware securing the factory shock
- Remove the factory shock absorber from the vehicle
- Position the new Skyjacker Black Max shock absorber into the upper and lower mounts
- Install and hand-tighten the upper and lower mounting hardware
- Torque all mounting hardware to the manufacturer's specification
- Reinstall the wheel if removed, lower the vehicle, and repeat on the opposite side
