Skyjacker 2007-2010 Jeep Wrangler (JK) 4 Wheel Drive Steering Damper Kit

Dual Black MAX Steering Stabilizer Kit for 2007-2018 Jeep Wrangler JK and JKU Builds

The Skyjacker 8203 is a Black MAX dual steering stabilizer kit engineered for 2007-2018 Jeep Wrangler JK and JKU platforms across all trim levels. JK Wranglers built for trail use with 35-inch-and-up tires and 3-inch-and-taller lifts overwhelm the factory single steering stabilizer, resulting in shimmy, death wobble events, and driver fatigue on highway runs. The 8203 replaces the factory damper with two Black MAX twin-tube cylinders mounted inline with a purpose-built bracket kit, delivering the dual damping force required to tame the JK's front Dana 44 axle under aggressive tire and lift configurations. Complete bolt-on kit, no modification required.

Key Features

• Skyjacker 8203 Black MAX dual steering stabilizer kit for 2007-2018 Jeep Wrangler JK and JKU Sport, Sahara, Rubicon, X, and special edition trims
• Dual twin-tube Black MAX cylinders with specialized compression and extension damping valving
• Above-tie-rod inline mounting design for improved clearance in lifted JK configurations
• Skyjacker 8203 bolt-on installation; no drilling, cutting, or welding required
• Black powder-coated cylinders resist mud, moisture, and trail contamination
• Reduces shimmy symptoms from 33-inch-and-larger tires and 2-inch-and-taller lifts
• Extends tie rod, ball joint, and steering gear service life by reducing vibration transfer

Vehicle Fitment

Specifications

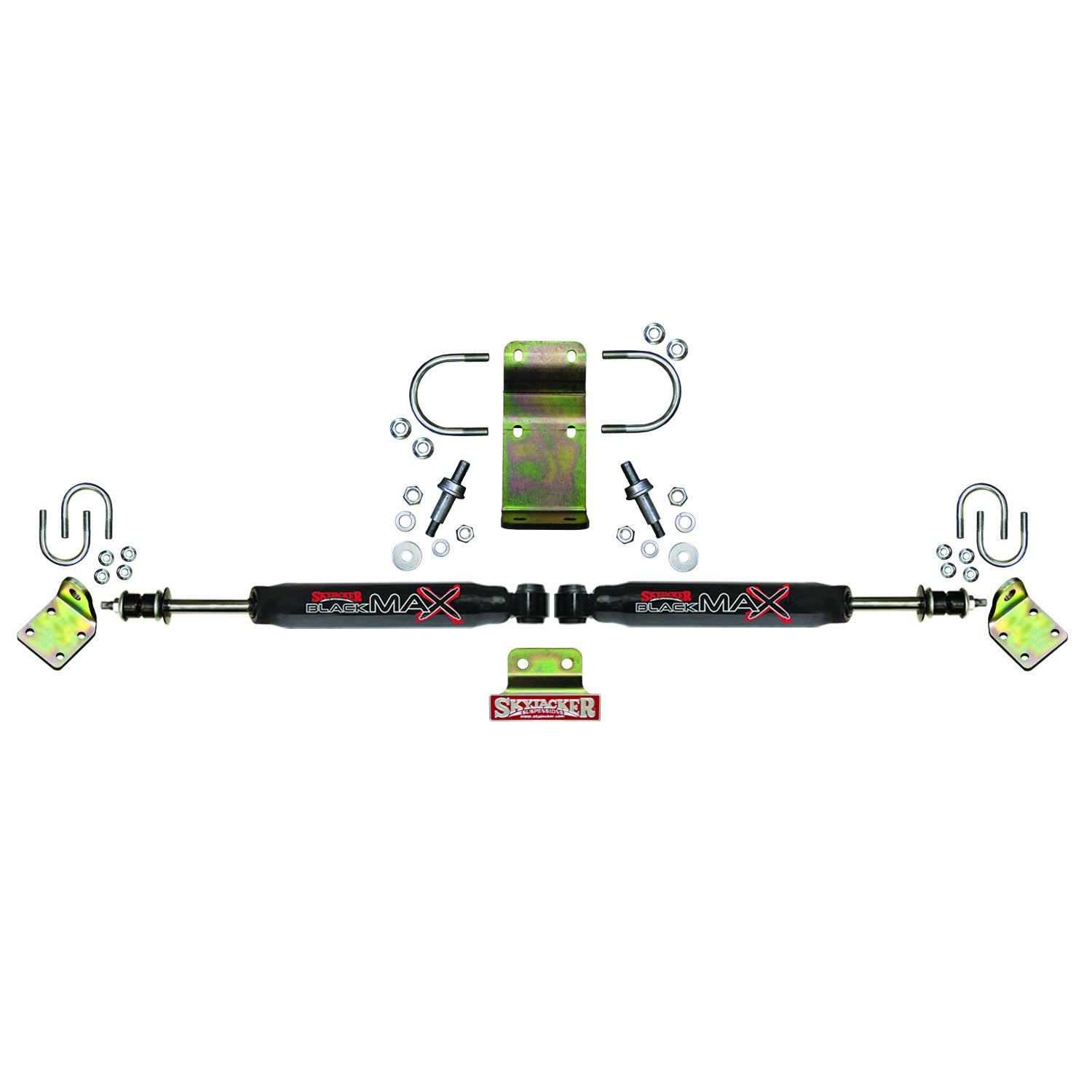

What's Included

• 2x Skyjacker 8203 Black MAX twin-tube steering stabilizer cylinders
• Center axle mounting bracket
• Above-tie-rod mounting bracket (driver and passenger side)
• U-bolts, studs, poly bushings, washers, and lock nuts
• Installation instructions

About Skyjacker

Skyjacker Suspensions designs and manufactures suspension and steering products for Jeep, Ford, Chevrolet, GMC, Dodge, and Toyota 4WD platforms from West Monroe, Louisiana. Their Black MAX dual stabilizer kits for the Wrangler JK were developed to address the widespread shimmy and death wobble issues that JK owners experience after building up their rigs with lift kits and large tires.

Related Parts on Our Site

• Skyjacker 8208 Jeep Wrangler JL High Clearance Dual Steering Damper Kit
• Skyjacker 8219 Jeep Wrangler TJ Dual Steering Damper Kit

Frequently Asked Questions

The Skyjacker 8203 is a Black MAX dual steering stabilizer kit for 2007-2018 Jeep Wrangler JK and JKU platforms. It installs two Black MAX twin-tube cylinders in an above-tie-rod inline configuration to control steering shimmy, reduce death wobble symptoms, and improve steering response on lifted JK builds.

Yes. The 2018 model year was the final production year for the JK generation, and the 8203 is compatible with all 2018 JK and JKU trims. The 2018 Wrangler JL launched as a separate model that year and uses the 8208 kit instead.

The 8203 is designed for JK Wranglers with 2 to 6-inch suspension lifts running 33-inch and larger tires. The above-tie-rod mounting position provides clearance for lifted JK axle geometry within this lift range.

Yes. The 8203 fits both the 2-door JK Wrangler and the 4-door JKU Wrangler Unlimited, as these share the same front axle and steering layout.

The 8203 significantly reduces shimmy and wobble symptoms by providing dual-cylinder damping. However, death wobble is typically triggered by worn tie rod ends, loose track bar bolts, or misaligned caster. Replacing worn components alongside the 8203 installation provides the most complete solution.

Yes. The Rubicon-spec front Dana 44 axle with factory lockers uses the same steering geometry and mounting points as the standard JK Dana 30 front axle. The 8203 is compatible with all JK trim levels including Rubicon.

Yes. The 8203 replaces the factory single stabilizer with a new dual-cylinder kit using its own center axle bracket and tie rod brackets. The factory unit and its mounting hardware are removed as part of the installation.

The 8203 is covered by Skyjacker's limited manufacturer warranty against defects in materials and workmanship. Contact Skyjacker Suspensions for full warranty terms and claim procedures.

Installation Overview

1. Chock the rear wheels, engage the parking brake, and center the steering wheel.
2. Remove the factory steering stabilizer and brackets from the front axle and tie rod.
3. Press greased hourglass bushings into the body eyes of both Black MAX cylinders.
4. Mount the center axle bracket to the front axle housing with the supplied U-bolts. Do not fully tighten.
5. Position the above-tie-rod brackets on both sides of the tie rod and secure with U-bolts.
6. Install washers and poly stem bushings on each stabilizer shaft end. Connect to the tie rod brackets. Tighten until bushings swell slightly.
7. Extend each stabilizer to half travel. Torque center axle U-bolts to 30 ft-lbs and tie rod bracket U-bolts to 240 in-lbs.
8. Cycle the steering lock to lock. Confirm clearance and no binding. Re-check torque after the first 100 miles.
