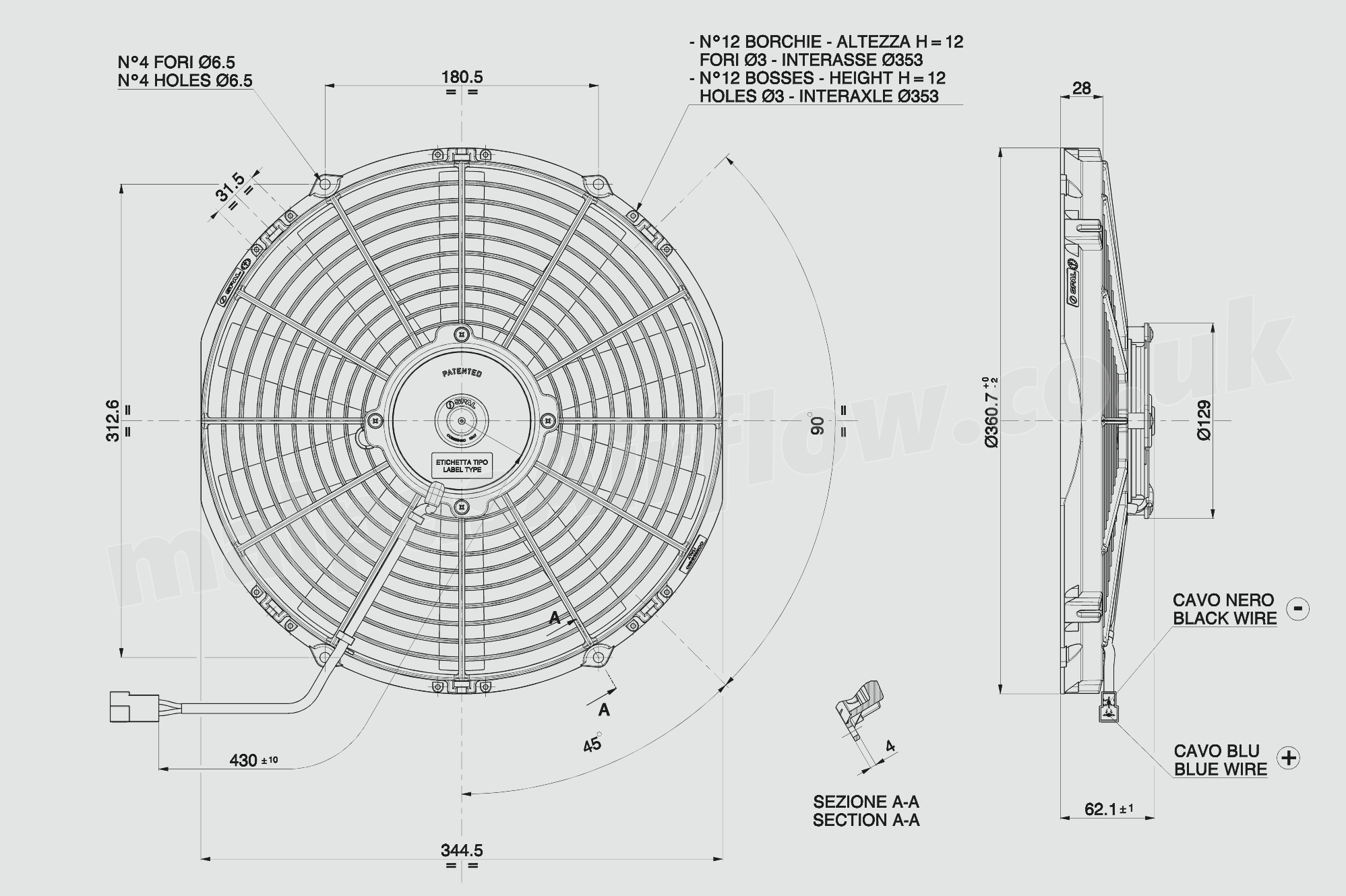

Size Chart
×
Part / Product Specification and Notes
| Static Pressure
mm H2O
|
Airflow
m3/h
|
Current Input
A
|
Airflow
CFM
|
Static Pressure
in H2O
|
|---|---|---|---|---|
|
0.0
|
1980
|
8.7
|
1168
|
0.0
|
|
2.5
|
1850
|
9.0
|
1092
|
0.1
|
|
5.0
|
1720
|
9.4
|
1015
|
0.2
|
|
7.5
|
1510
|
9.7
|
891
|
0.3
|
|
10.0
|
1300
|
10.0
|
767
|
0.4
|
|
12.5
|
970
|
9.3
|
572
|
0.5
|
|
15.0
|
670
|
9.3
|
395
|
0.6
|
|
17.5
|
510
|
9.8
|
301
|
0.7
|
|
20.0
|
360
|
9.6
|
212
|
0.8
|
|
25.0
|
0
|
9.4
|
0
|
1.0
|
| Maximum Airflow (at zero Static Pressure) | 1168CFM (1980m³/h) |
| Fan Blade Ø | 330mm (13") |
| Standard Features | Waterproof motor, IP 68 |
| Long life | |
| 36 Months Guarantee | |
| Operating Voltage | 12v (tested at:13v) |
| IP Rating | IP68 |

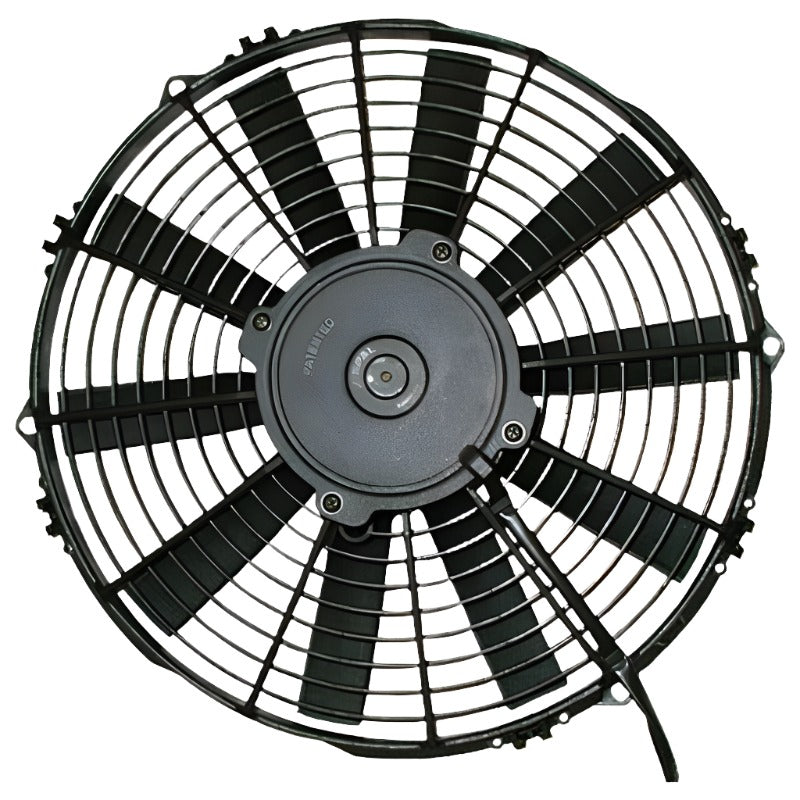

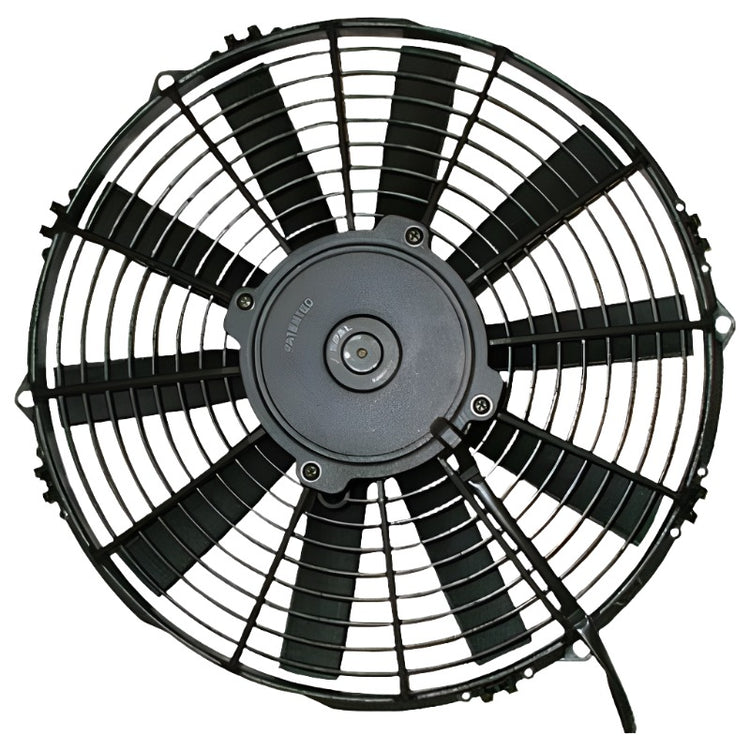

| SPAL Type/Description | VA13-AP51/C-35A |
| /C: C Class 5000hr motor | |
| Airflow Direction | Suction |
| Mounting Bolt/Screw | M5 bolt |
| Mounting Torque | 3(+1/-0) Nm |
| Certifications | UNI EN ISO 9001:2008 |
| ISO TS 16949 | |
| ISO 14001 |
