500W Brushless Performance Packed into a 14-Inch Drop-In Fan

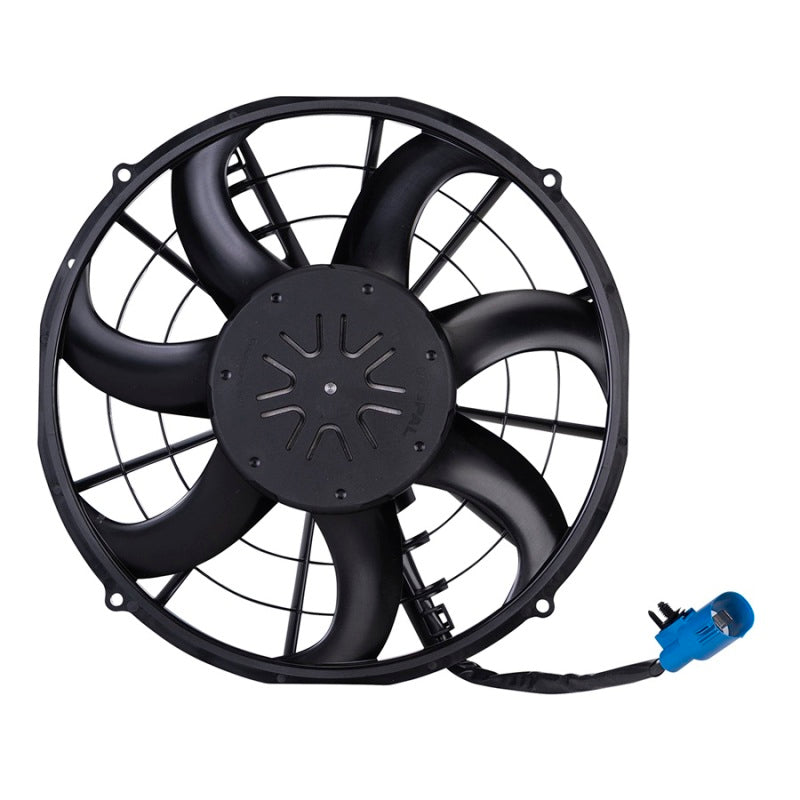

The SPAL SPL30107102-PKG is a 500-watt brushless puller fan in a 14-inch drop-in configuration, delivering 2,395 peak CFM with the full SPAL Plus Series feature set. Designed for custom shroud builds with moderate depth clearance, SPL30107102-PKG combines sealed IP68 and IP6K9K motor protection with automatic variable-speed control to efficiently manage cooling loads from street to track. The included jumper harness simplifies integration with the SPAL Plus Series sensor and harness system.
Key Features
- 500-watt brushless motor with automatic variable-speed control
- 2,395 peak CFM at full operating temperature
- 14-inch diameter, drop-in mount design sits partially inside the shroud
- IP68 and IP6K9K sealed motor for total protection against water and dust
- Includes jumper harness for SPAL Plus Series sensor system
- Curved blade design for high airflow efficiency across all speeds
- Integrated EMC filters and built-in electrical protection
- Requires SPAL Plus Series temperature sensor and SBL-YAZ-PT10 pigtail harness (sold separately)
Specifications
| Detail | Value |
|---|---|
| Part Number | SPL30107102-PKG |
| Brand | SPAL |
| Series | Plus Series |
| Motor Type | Brushless |
| Motor Wattage | 500W |
| Fan Diameter | 14 inches |
| Peak Airflow | 2,395 CFM |
| Mount Style | Drop-In (sits inside shroud) |
| Blade Style | Curved |
| Voltage | 12V DC |
| Max Amp Draw | ~41.67A at peak |
| IP Rating | IP68 and IP6K9K |
| Flow Direction | Puller |

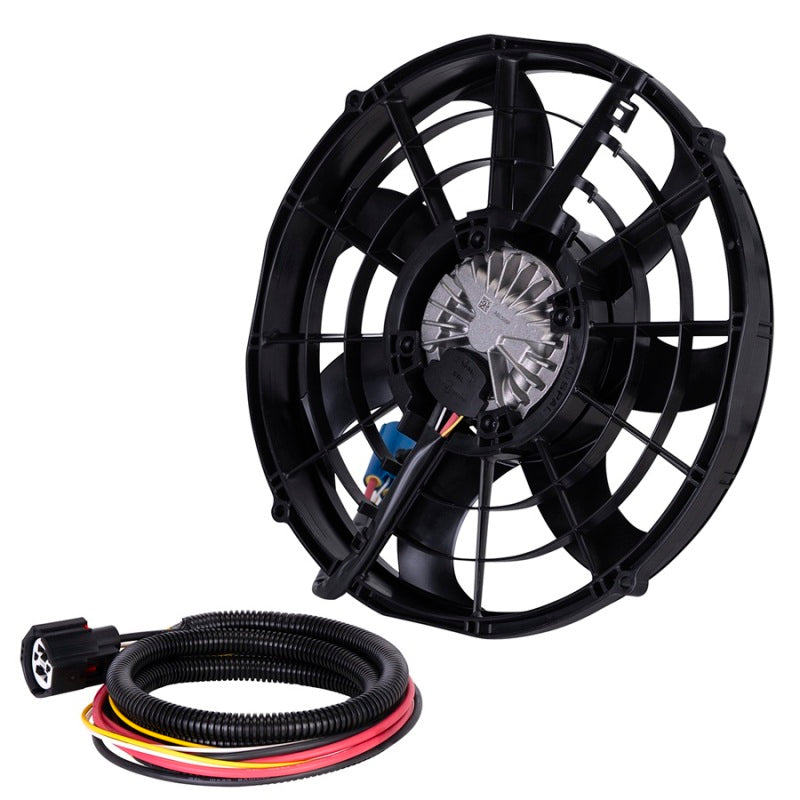

| Includes | Fan and Jumper Harness |
What's Included
- 1x SPAL SPL30107102-PKG 500W 14-inch Plus Series brushless puller fan

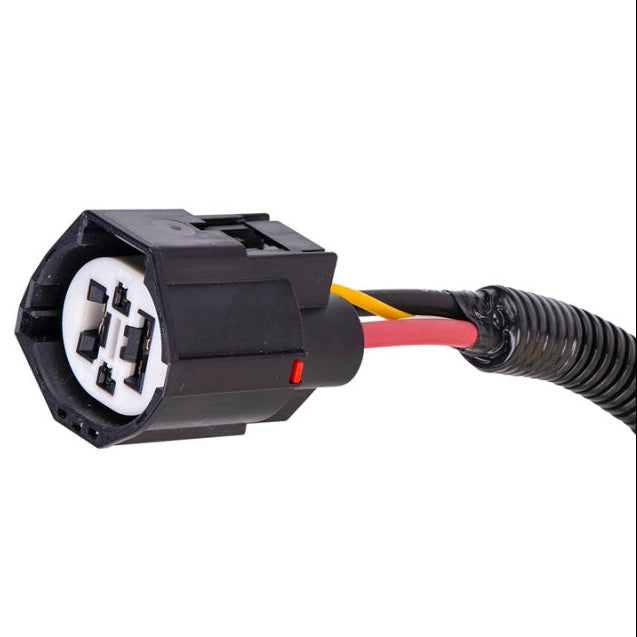

- Jumper harness for SPAL Plus Series sensor wiring
About SPAL
SPAL Automotive has been engineering high-performance electric fans for OEM and aftermarket applications since 1959. Based in Italy with manufacturing operations worldwide, SPAL supplies cooling solutions to automotive, motorsport, and industrial markets across the globe. The Plus Series brushless fan line represents SPAL's most advanced offering for custom cooling builds, combining sealed motor technology with variable-speed control for efficiency and reliability unmatched by conventional brushed fans.
Frequently Asked Questions
How does the SPAL 500W 14-inch brushless fan differ from the 300W 14-inch model?The SPL30107102-PKG produces 2,395 peak CFM versus 2,036 CFM for the 300W 14-inch drop-in version. The 500W motor draws approximately 41.67 amps at peak versus 25 amps for the 300W version. Choose the 500W model for applications that demand maximum airflow and can support the higher electrical load.
What temperature sensor is compatible with the SPL30107102-PKG?The SPL30107102-PKG requires a SPAL Plus Series temperature sensor. Common options are the SBL-TS-165P (140F off, 165F on), SBL-TS-185P, SBL-TS-195P, or SBL-TS-215P. The correct choice depends on your target coolant operating temperature. All Plus Series sensors are sold separately.
What harnesses are required to wire the SPAL 500W 14-inch brushless fan?You need the SBL-YAZ-PT10 pigtail harness (plugs into the fan connector) and the SBL-TS-HARN harness (connects temperature sensor to the pigtail). Both are required for each fan installed and are sold separately.
Does the 14-inch SPAL brushless fan fit inside most factory radiator shrouds?The SPL30107102-PKG is not designed to replace OEM factory fan blades. It is engineered for custom-built or aftermarket shroud applications. Factory OEM plastic fan shrouds are typically not compatible with SPAL drop-in brushless fans without modification.
Can I use the SPL30107102-PKG on a 24-volt system?No. This fan is rated for 12V DC operation only. SPAL offers 24V brushless models for commercial and heavy-duty applications. Using a 12V fan on a 24V system will damage the motor and void the warranty.
What is the IP68 rating on the SPAL Plus Series motor?IP68 means the motor is rated for continuous submersion in water beyond 1 meter depth for extended durations, as specified by the manufacturer. IP6K9K provides additional protection against high-pressure, high-temperature water spray. Together these ratings ensure the motor survives underhood environments, water crossings, and pressure washing.
How do I size my fuse and wiring for the SPAL 500W brushless fan?A minimum 50-amp fuse is recommended for the SPL30107102-PKG. Use 8-gauge or heavier wire for power and ground runs to minimize voltage drop and ensure the fan operates at full output. Route wiring away from exhaust heat and use weatherproof connectors.
Is the SPAL brushless fan louder than a standard electric fan?SPAL Plus Series brushless fans are generally quieter than comparable brushed fans at low and medium speeds because the motor ramps up gradually with temperature rather than switching on at full speed. At maximum output the fan produces noticeable airflow noise, but motor noise itself is minimal due to the brushless design.
Installation Instructions
- Confirm your shroud has sufficient depth from the radiator core to accommodate the drop-in fan body.
- Position the fan in the shroud opening with the motor facing away from the radiator.
- Secure the fan to the shroud using the fan's mounting tab pattern and appropriate hardware.

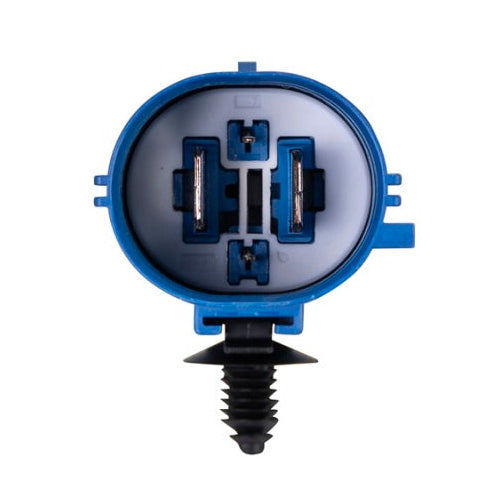

- Connect the SBL-YAZ-PT10 pigtail harness to the fan connector.
- Connect the SBL-TS-HARN harness between the pigtail and the temperature sensor.
- Install the temperature sensor in a 3/8-inch NPT port in the radiator or an inline fitting.
- Route all wiring clear of exhaust, moving parts, and heat sources.
- Run power and ground in a minimum 8-gauge wire with a 50-amp inline fuse close to the battery.
- Verify all connections, start the engine, and confirm fan activates at the correct coolant temperature.
- Retighten all mounting fasteners and inspect wiring after the first drive cycle.
