SPL Parts Eccentric Lockout Kit for BMW F8X and G8X M2, M3, and M4
SPL EL F8X eliminates the stock BMW rear eccentric bolts at both the toe arm and camber arm positions so rear alignment stays where it is set under high cornering loads. Adjustable rear toe arms and rear upper arms are required to retain toe and camber adjustment after the stock eccentric bolts are removed.
Key Features
- Eliminates stock eccentric bolt slip that causes rear alignment drift under load
- Locks both the rear toe arm and rear camber arm eccentric positions in a single kit
- CNC machined from 6061-T6 aluminum for a zero slip fit
- Zinc plated grade 10.9 bolts and lock nuts for corrosion resistance and high clamping strength
- Made in the USA
Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2014-2021 | BMW | M2 | F87 |
| 2014-2021 | BMW | M3 | F80 |
| 2014-2021 | BMW | M4 | F82, F83 |
| 2021-2025 | BMW | M2 | G87 |
| 2021-2025 | BMW | M3 | G80 |
| 2021-2025 | BMW | M4 | G82, G83 |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | SPL EL F8X |
| Lockout plate material | 6061-T6 aluminum, CNC machined |
| Hardware | Zinc plated grade 10.9 bolts and lock nuts |
| Country of origin | United States |
What's Included

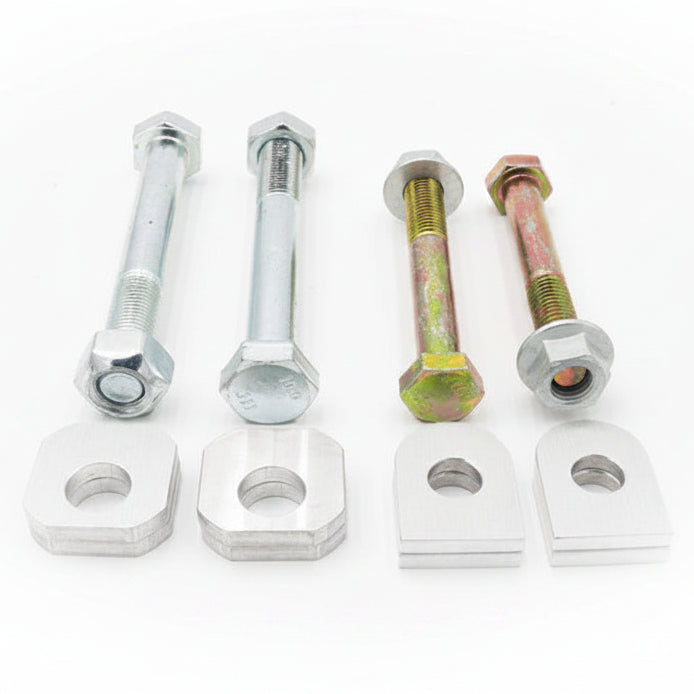

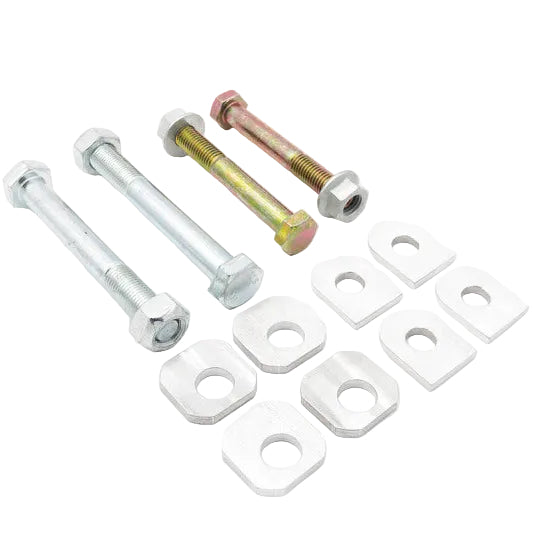

- Rear toe arm and rear camber arm eccentric lockout plates for both rear corners
- Grade 10.9 bolts, lock nuts, and washers for toe and camber arm positions
About SPL Parts
SPL Parts engineers CNC machined suspension hardware for BMW and Mazda MX-5 platforms, focused on eliminating factory bushing deflection and slip points to keep alignment settings stable under sustained track and autocross loads.
FAQ
Do I need adjustable control arms to use this kit?Yes. Adjustable rear toe arms and rear upper arms are required to set toe and camber after the stock eccentric bolts are eliminated.
Does one part number cover both the F8X and G8X chassis?Yes. The rear eccentric bolt configuration is consistent across both generations, so this single kit fits F8X and G8X M2, M3, and M4 models.
Does this kit lock the toe position, the camber position, or both?This kit locks both the rear toe arm and rear camber arm eccentric positions in one combined purchase.
What material are the lockout plates made from?The plates are CNC machined from 6061-T6 aluminum.
Is this kit for one side of the car or the full car?The kit is sold as a complete set for both rear corners of one car.
Can this kit be installed without adjustable arms already on the car?The kit can be installed at the same time as adjustable rear toe and camber arms, but the stock eccentric bolts should not be removed without adjustable arms in place to retain alignment range.
What hardware grade is used?The kit uses zinc plated grade 10.9 bolts and lock nuts for a zero slip clamping force.
Is this kit made in the USA?Yes. SPL Parts manufactures this kit in the United States.
Installation Instructions
- Raise and safely support the vehicle, then remove the rear wheels.
- Remove the factory eccentric bolts at the rear toe arm and rear camber arm positions.
- Install adjustable rear toe arms and rear upper arms if not already installed.
- Position the SPL lockout plates at the toe and camber arm mounting points and install the included grade 10.9 bolts, washers, and lock nuts.
- Set rear toe and camber using the adjustable arms, torque all hardware to specification, and have the vehicle professionally aligned.
