SPL Parts SPL ELF R35 is a front camber-and-caster eccentric lockout kit for the supported Nissan GT-R. Offset washer positions provide minimum, middle, or maximum settings while preventing the factory eccentrics from slipping under cornering load.
Key Features
- CNC-machined 6061-T6 aluminum lockout plates
- Grade 10.9 metric hardware
- Prevents factory eccentric movement under cornering load
- Requires adjustable arms for post-installation alignment adjustment
- Complete kit for one vehicle
- Made in the USA
Fitment
| Years | Make | Model |
|---|---|---|
| 2009-2024 | Nissan | GT-R |
Fits the listed Nissan GT-R model years. R35 is a platform reference and is intentionally excluded from Convermax model tags. Adjustable upper control arms are required to retain front camber and caster adjustment.
Specifications
| Brand | SPL Parts |
|---|---|
| Manufacturer Part Number | SPL ELF R35 |
| Product Type | Eccentric lockout kit |
| Plate Material | 6061-T6 aluminum |
| Hardware Grade | 10.9 metric |
| Quantity | Complete kit for one vehicle |
| Position | Front camber and caster |
| Washer Positions | Minimum, middle, or maximum |
What's Included

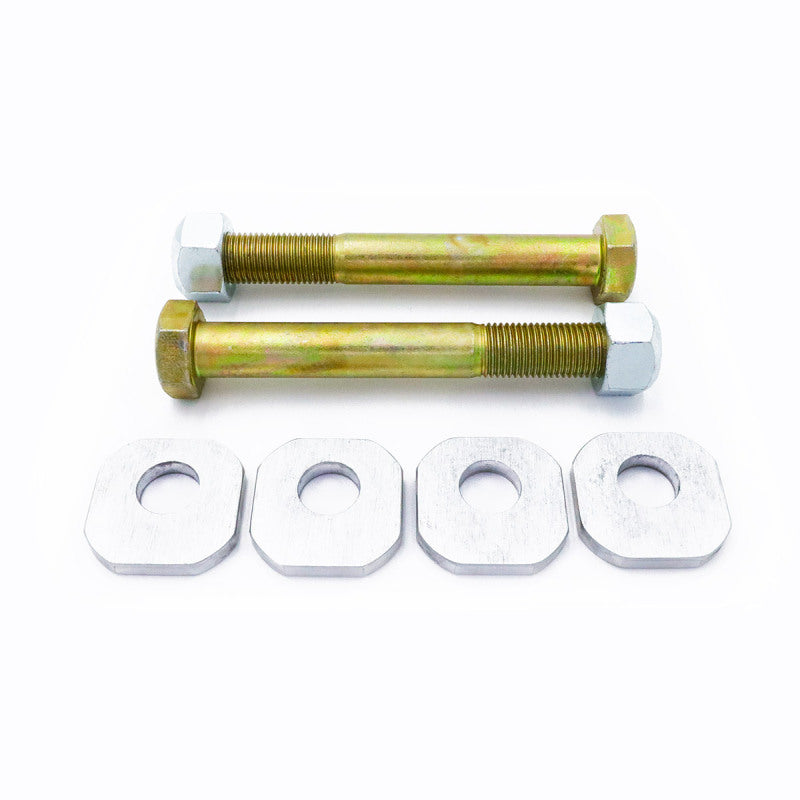

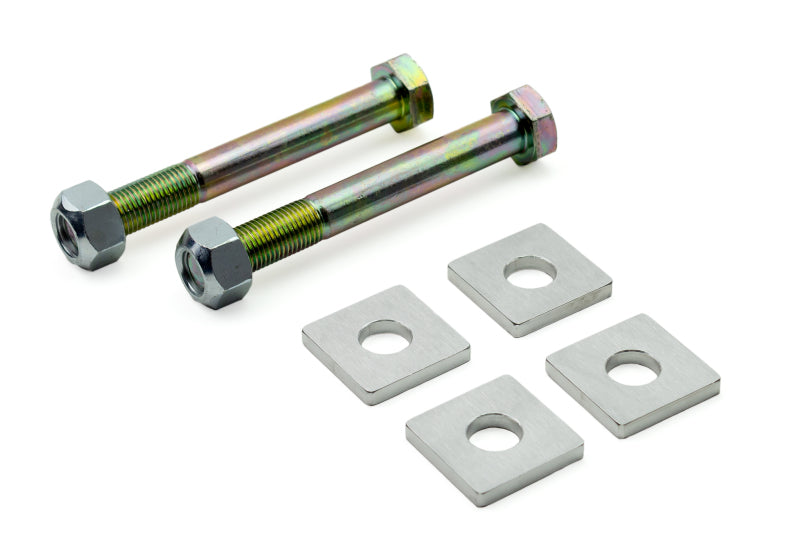

CNC-machined lockout plates with zinc-plated grade 10.9 bolts and lock nuts for both front lower control arms on one vehicle.
About SPL Parts
SPL Parts designs and manufactures precision suspension components for street, track, and motorsport alignment applications. Product selection must follow the current manufacturer application and installation information.
Related SPL Parts Products
- Shop all SPL Parts products
- SPL Nissan GT-R eccentric lockout kit
- SPL Nissan 370Z eccentric lockout kit
- SPL Ford Mustang toe eccentric lockout kit
Frequently Asked Questions
Does SPL ELF R35 preserve factory eccentric adjustment?
No. It replaces the specified factory eccentric adjustment point, so compatible adjustable suspension arms are required for subsequent alignment changes.
Is this kit sold for one vehicle?
Yes. SPL Parts identifies it as a complete lockout kit for one vehicle.
Is a professional alignment required?
Yes. Install the compatible adjustable components first, then complete a professional alignment and clearance check.
Installation
Follow the current SPL Parts instructions for this exact manufacturer part number. Confirm component orientation, adjustment range, clearances, fastener condition, torque specifications, and final alignment settings before driving.
