SPL Parts 2008+ Nissan GTR (R35) Front Upper Camber/Caster Arms

SPL FUA R35 Front Upper Camber and Caster Arms for 2008+ Nissan GT-R (R35)

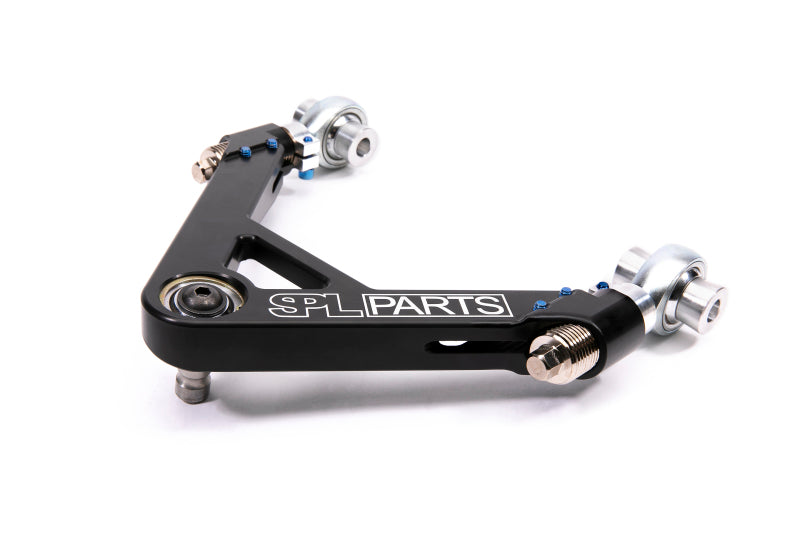

The SPL FUA R35 Front Upper Camber/Caster Arms are engineered for the 2008+ Nissan GT-R R35, providing simultaneous camber and caster adjustment without disconnecting the arm from the chassis. Dual chassis-mount Double Adjusters replace traditional jam nuts with a slotted hex-cap system: turn the adjuster to set arm length, then lock alignment settings with a simple allen wrench. The result is faster, more repeatable alignment changes on the track or in the shop. An encapsulated FK Spherical Bearing at the upright mount provides exceptional strength and eliminates the rod-end bending risk found in single-pivot designs. Whether you are correcting camber on a lowered street R35 or chasing maximum front grip on circuit, SPL FUA R35 delivers the precision and range required.

Features and Benefits

• Dual Double Adjuster design allows independent camber and caster tuning while arms remain bolted to the car
• CNC-milled 6061-T6 billet aluminum arms designed with FEA analysis to exceed OEM strength
• 4130 Chromoly electroless nickel-plated Double Adjuster with 6061-T6 aluminum clamps for corrosion resistance and light weight
• 3/4 inch 3-piece Teflon-lined FK Spherical Bearings made in the USA: self-lubricating, self-cleaning, operating from -65 to 325 degrees F
• Encapsulated spherical bearing at knuckle mount eliminates rod-end bending under load
• Blue anodized titanium socket-head cap screws reduce unsprung weight
• Black anodized finish for long-term corrosion protection
• Sold as a pair, made in the USA

Fitment

Specifications

What Is Included

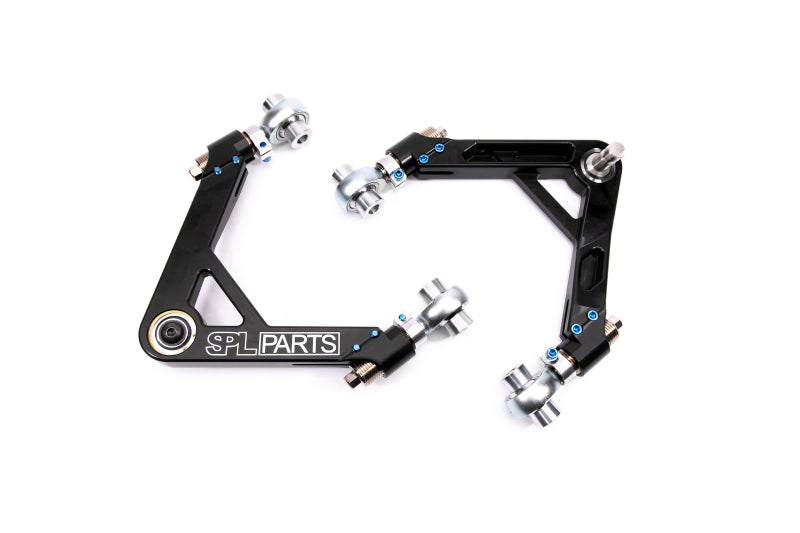

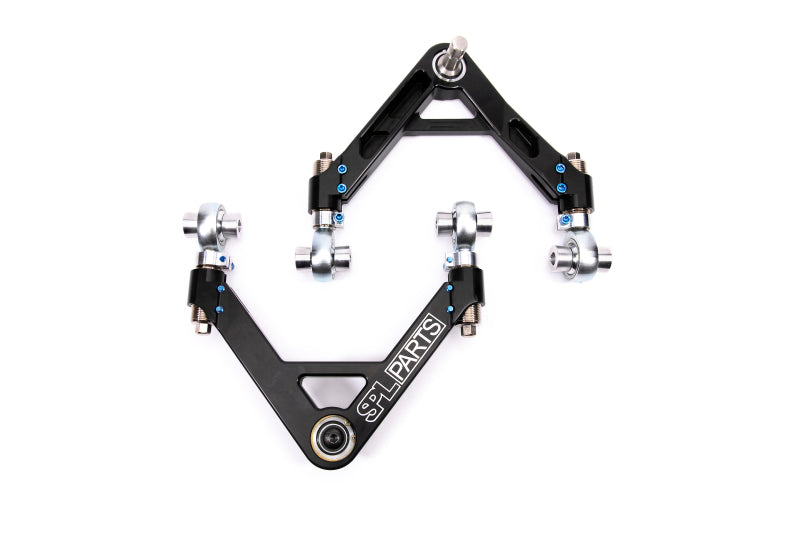

• 2 x SPL FUA R35 Front Upper Camber/Caster Arms (one per side)
• Blue anodized titanium socket-head cap screws
• 4130 Chromoly Double Adjusters with 6061-T6 aluminum clamps
• 3/4 in. Teflon-lined FK Spherical Bearings pre-installed
• Installation instructions

Frequently Asked Questions

What camber and caster range does the SPL FUA R35 provide on a 2008+ Nissan GT-R?
On a test GT-R lowered 1 inch, the SPL FUA R35 achieved a range from 0 degrees camber (5.8 degrees caster) to -5 degrees camber (5.9 degrees caster). At -4 degrees camber, up to 8 degrees caster is possible; at -3.5 degrees camber, up to 7.7 degrees caster is achievable.

Can I adjust camber and caster independently?
Yes. The SPL FUA R35 dual-adjuster design allows each adjuster to be lengthened or shortened independently. Changing both equally adjusts camber; changing only one side changes caster without removing the arm from the vehicle.

Is the SPL FUA R35 street-legal and safe for daily driving?
Yes. The Teflon-lined FK Spherical Bearings are self-lubricating and self-cleaning, rated from -65 to 325 degrees F, and engineered for combined street and track use. After installation and alignment, the SPL FUA R35 is fully suitable for daily-driven R35 GT-Rs.

Does installing aftermarket suspension void my Nissan GT-R warranty?
Under the Magnuson-Moss Warranty Act, a dealer cannot void your vehicle warranty simply because you installed an aftermarket part. The dealer must demonstrate that the aftermarket part directly caused the failure in question. Installing the SPL FUA R35 does not automatically void unrelated warranty coverage on your GT-R.

Do I need an alignment after installing the SPL FUA R35?
Yes. A professional four-wheel alignment is required after installation to dial in camber and caster to your target specification. Bring the SPL installation instructions to the alignment shop.

Will the SPL FUA R35 fit xDrive or AWD variants of the R35 GT-R?
The R35 GT-R is AWD from the factory, and the SPL FUA R35 is specifically designed for the R35 platform. It is compatible with all GT-R trims from 2008 onward, including Premium, Nismo, Black Edition, Track Edition, Pure, and 50th Anniversary Edition.

What is the rod end replacement procedure?
SPL Parts offers replacement FK rod ends separately. Contact SPL Parts at tech@splparts.com or 512-691-9002 for replacement rod end part numbers compatible with the SPL FUA R35.

Do these arms require any drilling or modification to the chassis?
No. The SPL FUA R35 bolts directly into the OEM upper control arm mounting locations on the 2008+ Nissan GT-R. No drilling, welding, or chassis modification is required.

Installation Overview

1. Raise and support the front of the vehicle; remove front wheels.
2. Disconnect and label any brake line or ABS sensor clips near the upper arm.
3. Remove the OEM upper control arm bolts at both chassis mount points and at the knuckle.
4. Note the OEM arm length and pre-set the SPL FUA R35 to match by threading both adjusters equally.
5. Set desired caster offset by adjusting the front or rear adjuster independently before installing.
6. Install the SPL FUA R35 at the chassis mounts; torque inner bolts to 44 ft-lb.
7. Connect the knuckle end; torque the 15/16 in. nut to 40 ft-lb.
8. Lock the Double Adjuster clamp screws with the allen wrench to secure the alignment setting.
9. Reinstall wheels and lower the vehicle to ride height.
10. Perform a professional four-wheel alignment to final specification.
11. Re-check all fastener torques after the first 100 miles and again after the first 500 miles.
