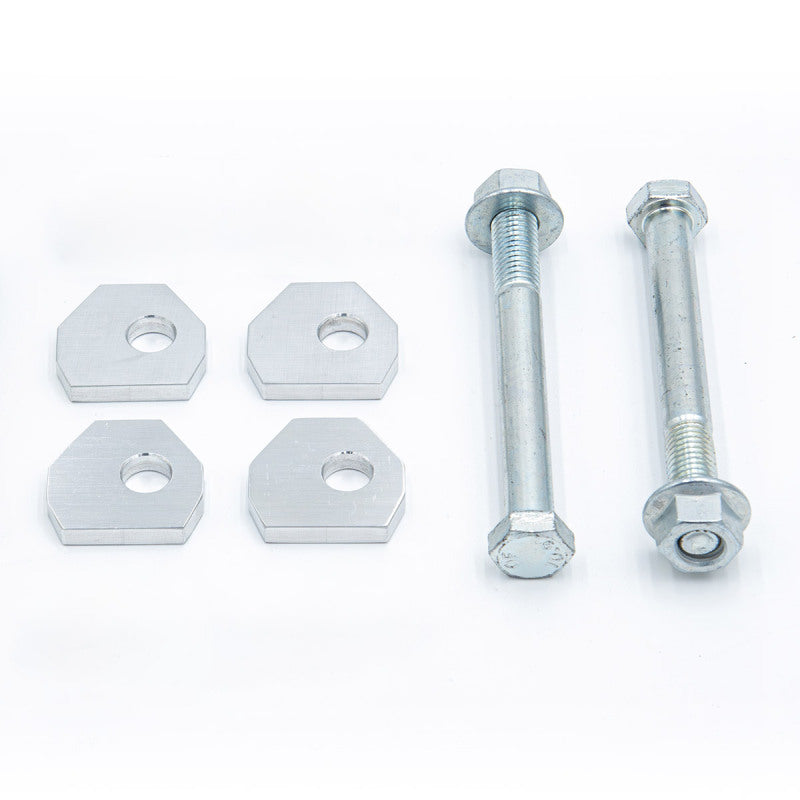

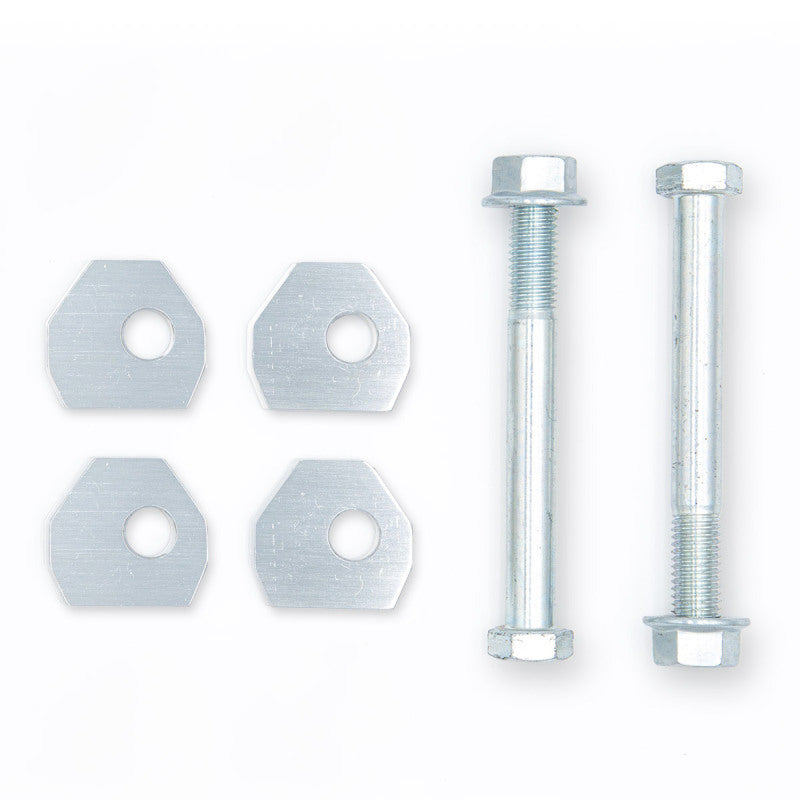

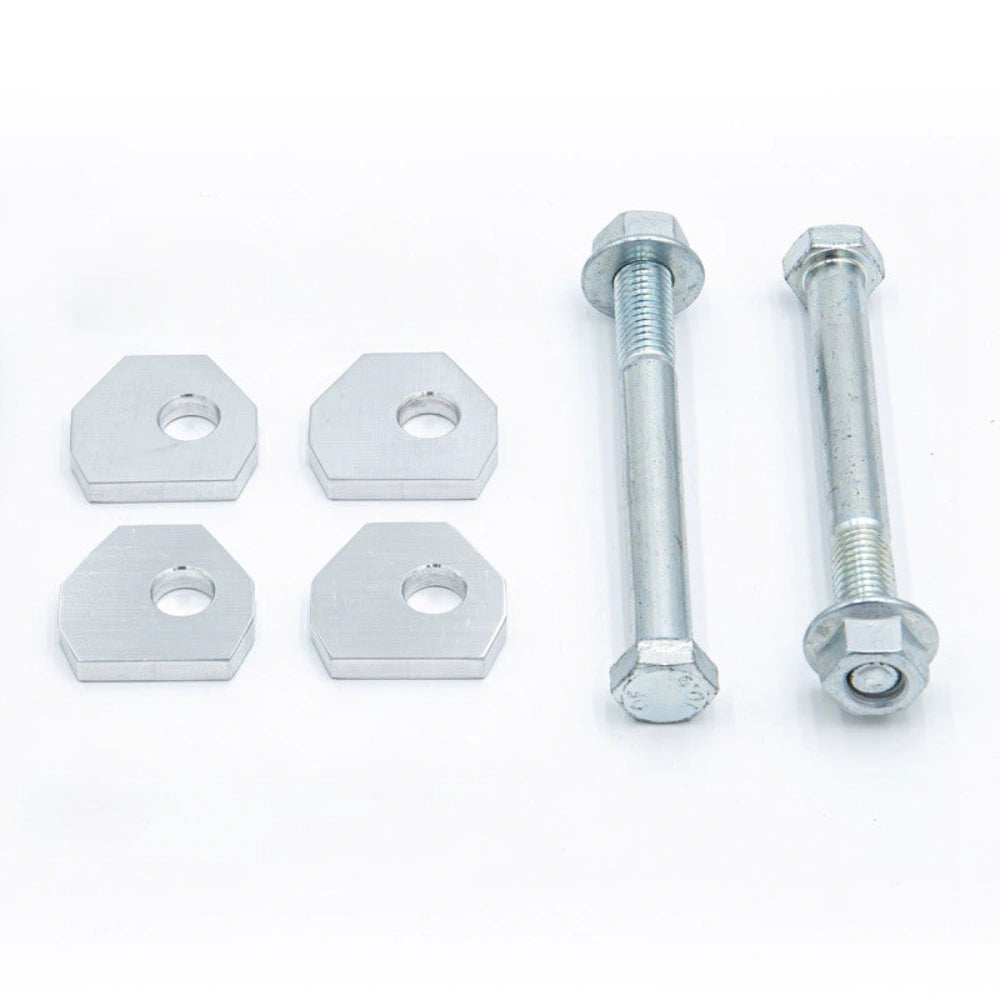

SPL Parts SPL ELC 996 is a rear camber-only eccentric lockout kit for supported Porsche 911 applications. It replaces the rear lower-control-arm camber eccentrics to prevent alignment movement during sustained cornering.
Key Features
- You will need adjustable camber arms to retain the ability to adjust the rear alignment.Sold as a complete kit for one car.Made in the USA.
Fitment
| Years | Make | Model |
|---|---|---|
| 1999-2012 | Porsche | 911 |
Fits 1999-2012 Porsche 911 models supported by SPL Parts. The 996 and 997 designations are platform references and are intentionally excluded from Convermax model tags. Adjustable camber arms are required to retain rear camber adjustment.
Specifications
| Brand | SPL Parts |
|---|---|
| Manufacturer Part Number | SPL ELC 996 |
| Product Type | Eccentric lockout kit |
| Plate Material | 6061-T6 aluminum |
| Hardware Grade | 10.9 metric |
| Quantity | Complete kit for one vehicle |

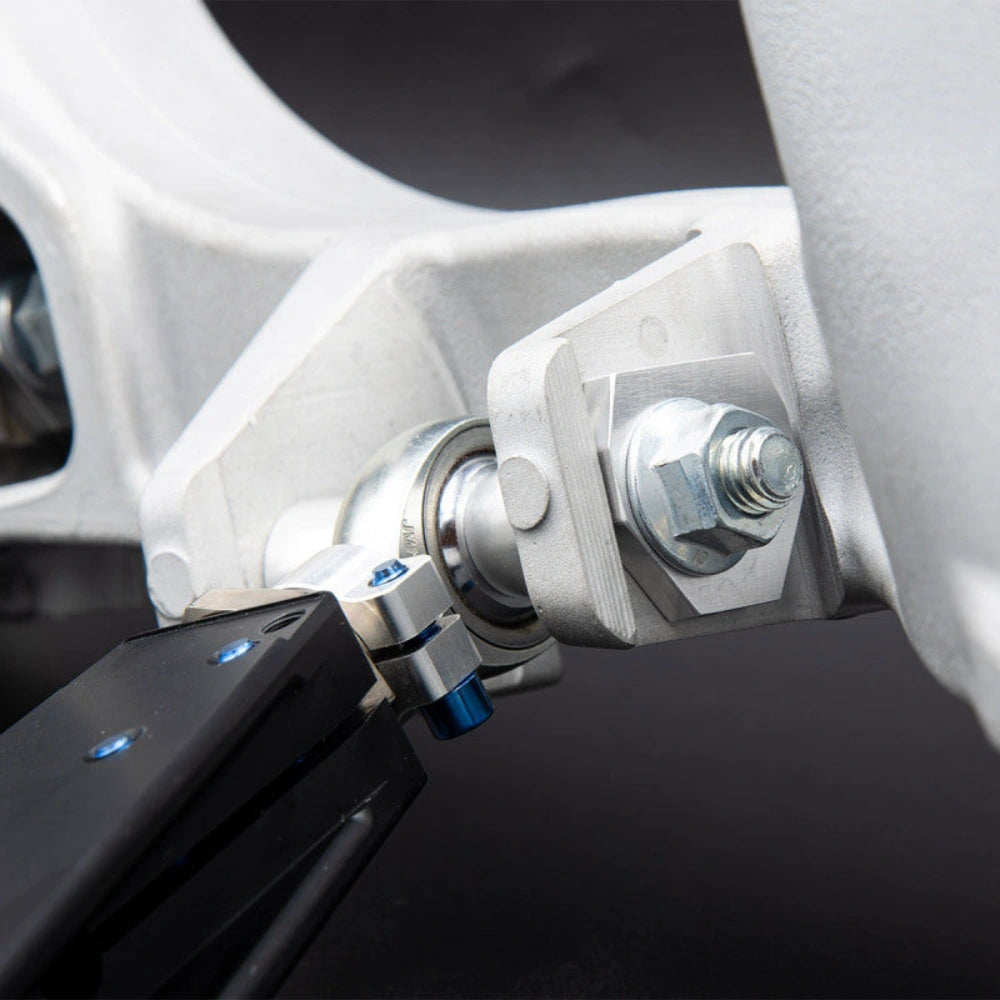

| Position | Rear lower control-arm camber |
What's Included
Rear camber lockout plates and class 10.9 metric hardware for both rear corners of one vehicle.
About SPL Parts
SPL Parts designs and manufactures precision suspension components for street, track, and motorsport alignment applications. Product selection must follow the current manufacturer application and installation information.
Related SPL Parts Products
- Shop all SPL Parts products
- SPL Nissan GT-R eccentric lockout kit
- SPL Nissan 370Z eccentric lockout kit
- SPL Ford Mustang toe eccentric lockout kit
Frequently Asked Questions
Does SPL ELC 996 preserve factory eccentric adjustment?
No. It replaces the specified factory eccentric adjustment point, so compatible adjustable suspension arms are required for subsequent alignment changes.
Is this kit sold for one vehicle?
Yes. SPL Parts identifies it as a complete lockout kit for one vehicle.
Is a professional alignment required?
Yes. Install the compatible adjustable components first, then complete a professional alignment and clearance check.
Installation
Follow the current SPL Parts instructions for this exact manufacturer part number. Confirm component orientation, adjustment range, clearances, fastener condition, torque specifications, and final alignment settings before driving.
