Superlift 04-22 Nissan Titan 2WD/4WD 3in Lift Kit

Superlift 6210 3-Inch Upper Control Arm Lift Kit for 2004-2022 Nissan Titan 2WD and 4WD (Excludes XD)

The Superlift 6210 is a comprehensive 3-inch lift kit engineered for the 2004-2022 Nissan Titan in both 2WD and 4WD configurations. At the core of this kit are die-formed solid steel upper control arms with pre-installed ball joints and bushings, paired with rear Shadow shocks and a rear block and U-bolt kit. Part number 6210 corrects front control arm geometry after lifting, delivers a factory-like ride quality, and opens up clearance for 33-inch tires on stock or aftermarket wheels. The 6210 does not fit Titan XD models.

Features and Benefits

• 3-inch lift height for 2004-2022 Nissan Titan 2WD and 4WD
• Die-formed solid steel upper control arms with beefy gussets for durability
• UCA design corrects ball joint and control arm angles for superior ride quality
• CNC machined ball joint socket and bushing eye ring for precise fit
• UCAs include pre-installed ball joints and bushings for fast installation
• Rear lift via block and U-bolt kit with Superlift Shadow shocks
• Adds clearance for 33-inch tires
• Fits both 2WD and 4WD Titan models
• Preserves use of stock 17-inch through 22-inch factory wheels
• Simple bolt-on installation, no welding required
• Backed by Superlift Limited Lifetime Warranty

Fitment

Specifications

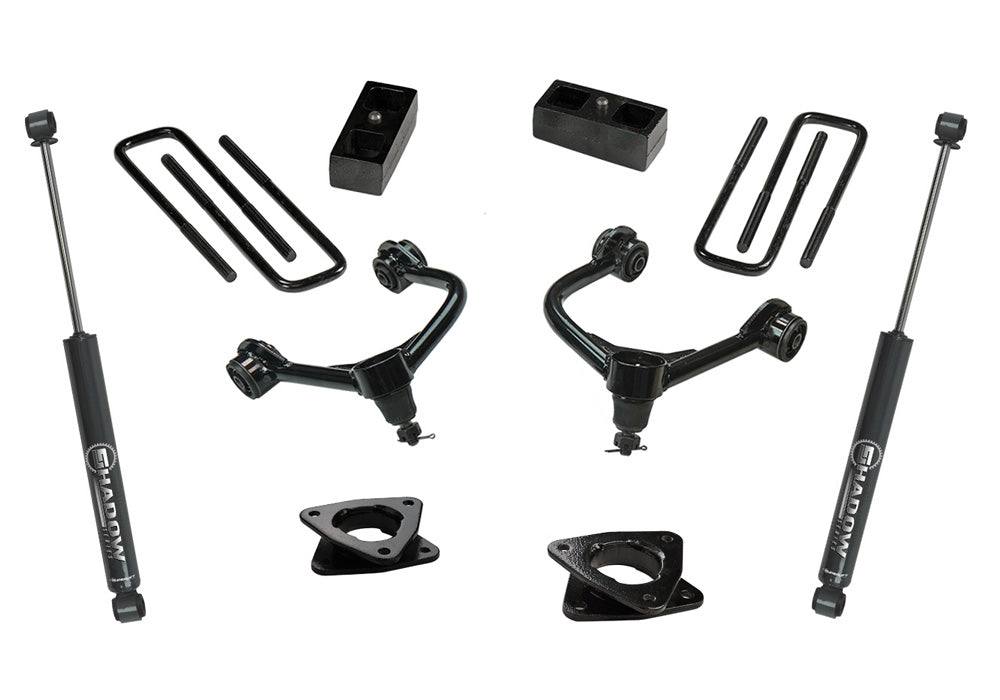

What Is Included

• Front upper control arms (pair) with pre-installed ball joints and bushings
• Front strut spacers
• Rear cast iron block and U-bolt kit
• Rear Superlift Shadow shocks (pair)
• All hardware and fasteners
• Step-by-step installation instructions

Frequently Asked Questions

Does the 6210 fit the Nissan Titan XD?
No. The Superlift 6210 is not compatible with the Nissan Titan XD, which has a different frame and suspension architecture. It is designed for standard Titan models from 2004 to 2022.

Will the 6210 work on my 2WD Nissan Titan?
Yes. The 6210 is engineered for both 2WD and 4WD configurations of the Nissan Titan from 2004 through 2022.

What is the maximum tire size I can fit with the Superlift 6210?
Superlift rates the 6210 for up to 33-inch tires. Recommended wheel and tire combinations include 285/70R17 on 17x9, 285/65R18 on 18x9, and 285/55R20 on 20x9 wheels with 0 to +20mm offset.

Can I keep my factory wheels with the 6210 lift?
Yes. Stock 17-inch, 18-inch, 20-inch, and 22-inch factory wheels will fit back on the Titan after installing the 6210 lift kit.

Will installing the Superlift 6210 void my Nissan factory warranty?
Under the Magnuson-Moss Warranty Act, the dealer must prove the aftermarket part caused a specific failure before denying a warranty claim. Installing a lift kit alone does not allow the dealer to void your entire powertrain warranty. Consult your dealer with any specific warranty questions.

Does the 6210 include front shocks?
The standard 6210 uses front strut spacers that work with your existing factory front struts. Superlift Shadow shocks are included for the rear. Optional front shock upgrades may be available when paired with other kit combinations.

Is the installation of the 6210 a DIY job?
The 6210 is designed as a bolt-on kit with no welding or cutting required. It can be completed by a mechanically experienced DIYer with basic hand tools, though professional installation is always recommended for suspension work.

Does the Superlift 6210 change the front alignment on my Titan?
Yes. A professional alignment is required after installing the 6210. The CNC machined ball joint socket on the UCAs allows proper geometry correction, but alignment must be performed by a qualified shop after installation.

Installation Instructions

1. Safely lift the vehicle and support it on jack stands at the frame. Remove all four wheels.
2. Remove the front factory upper control arms from the vehicle.
3. Install the Superlift replacement upper control arms, torquing hardware to spec with wheels on the ground.
4. Install the front strut spacers per the included instructions.
5. Remove the rear leaf spring U-bolts and rear shocks.
6. Install the cast iron rear lift blocks between the axle and leaf springs. Reinstall with new U-bolts and hardware provided.
7. Install the Superlift Shadow rear shocks in place of the factory units.
8. Reinstall wheels and lower the vehicle to the ground.
9. Torque all suspension fasteners to specification at ride height.
10. Have a professional four-wheel alignment performed immediately after installation.
