Keep the Rear Axle Located Under Load

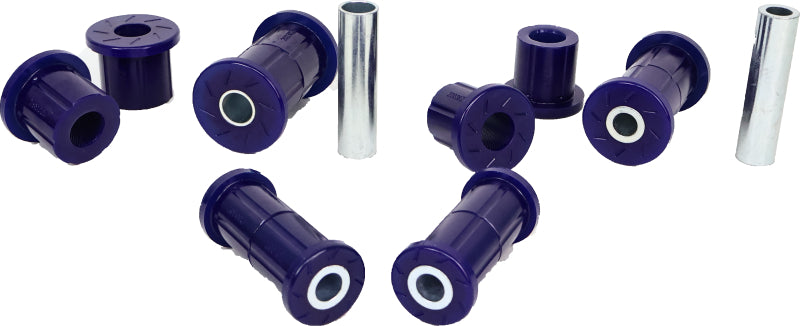

This SuperPro KIT304RK bushing kit replaces the rear leaf spring eye and shackle bushings on the 2009 to 2014 Ford F-150. It installs into the factory leaf spring and shackle locations and uses a proprietary polyurethane formula with replacement plated sleeves, so the rear axle stays located when the truck is towing, hauling or working off road.
Key Features
- Replaces the rear leaf spring and shackle bushings that locate the solid rear axle
- Made from a high quality proprietary SuperPro polyurethane formula
- Reduces unwanted axle movement, road wander and noise, vibration and harshness
- Helps keep rear axle alignment consistent under towing and hauling loads
- Grease retention technology holds lubricant in the bushing bore for a longer service life
- Includes replacement plated bushing and bolt sleeves so worn sleeves are renewed at the same time
- Bolts into the factory mounting locations with no bracket modification
- Backed by the SuperPro limited lifetime warranty to the original purchaser
- Exact manufacturer part number: KIT304RK
Fitment
| Vehicle Application | Position | Requirement |
|---|---|---|
| 2009-2014 Ford F-150 | Rear | Leaf spring eye and shackle bushing locations |
This kit covers the rear leaf spring and shackle bushings only. It does not fit the 2015 and later F-150, and it does not include leaf springs, shackles or replacement mounting bolts.
Specifications
| Detail | Value |
|---|---|
| Brand | SuperPro |
| Manufacturer part number | KIT304RK |
| Product type | Rear leaf spring and shackle bushing kit |
| Vehicle application | 2009-2014 Ford F-150 |
| Position | Rear |
| Bushing material | Proprietary polyurethane |
| Sleeves | Plated bushing and bolt sleeves included |
| Lubrication | Grease retention grooves in the bushing bore |
| Mounting | Factory leaf spring and shackle locations |
| Warranty | Limited lifetime to the original purchaser |
| Documentation | Installation manual included |

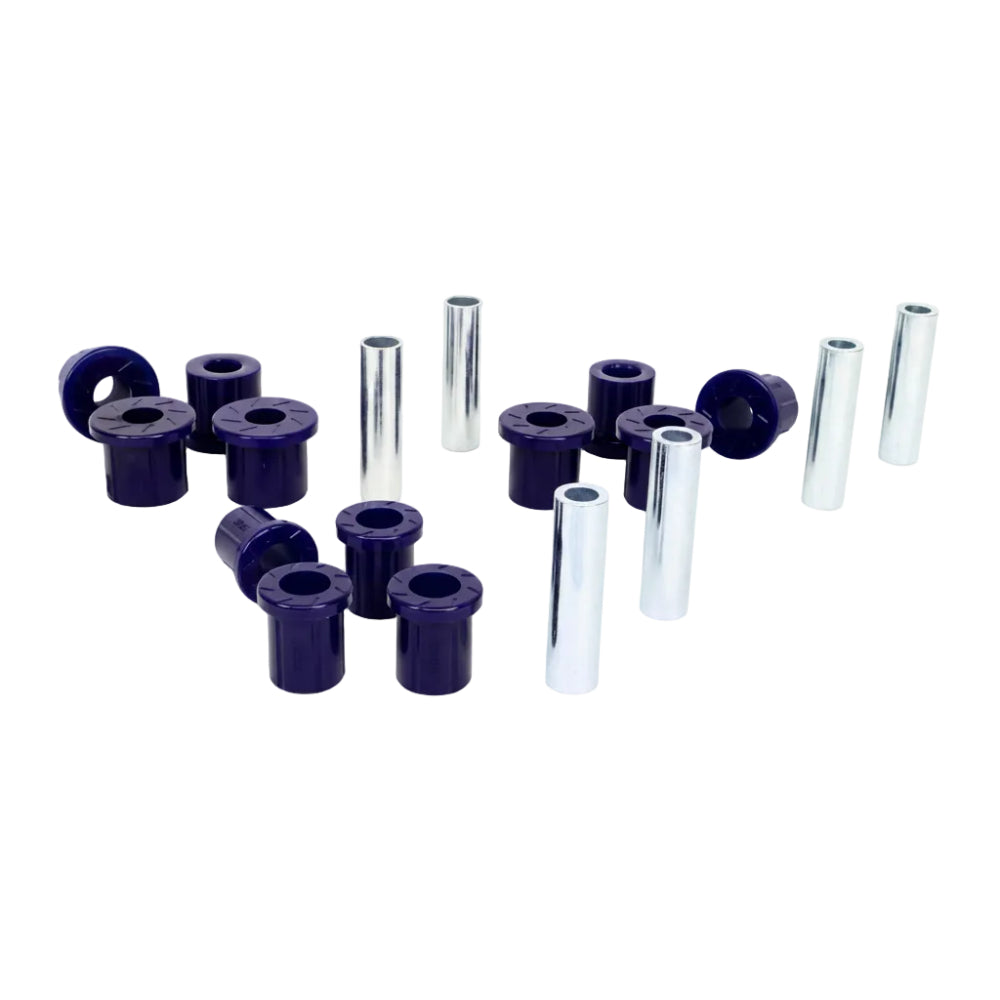

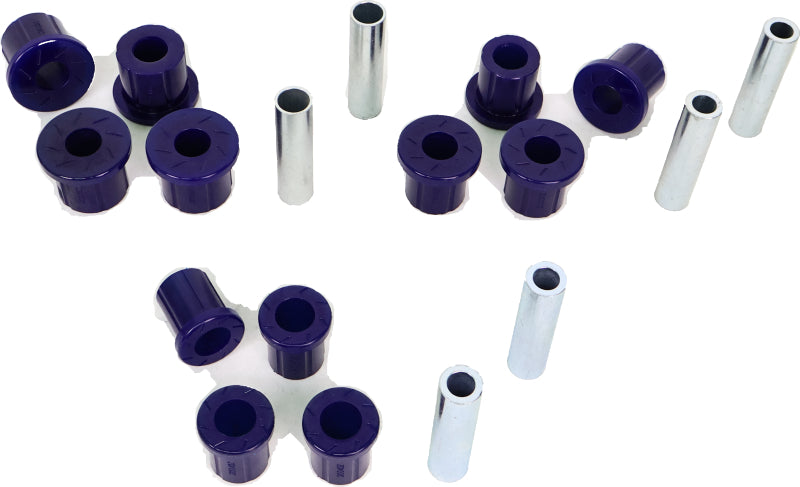

What's Included
- Rear leaf spring and shackle polyurethane bushings for the KIT304RK application
- Replacement plated bushing and bolt sleeves
- Installation manual
About SuperPro
SuperPro develops polyurethane suspension bushings and alignment components for road, off road and towing use. The range is built around application specific bushings that reuse factory mounting points, and the bushing formula is designed to resist deflection, oil, water and temperature change better than the original rubber.
Related Parts
FAQ
What is the KIT304RK?It is the SuperPro rear leaf spring and shackle bushing kit for the 2009 to 2014 Ford F-150, supplied with polyurethane bushings and plated sleeves.
Which F-150 model years does this kit cover?It covers the 2009 through 2014 F-150. The 2015 and later trucks use a different leaf spring bushing design and need a different kit.
Does the kit include the sleeves or only the bushings?Replacement plated bushing and bolt sleeves are supplied with the bushings, so the worn steel sleeves are renewed during the same repair.
Will this kit change ride height or spring rate?No. It only replaces the bushings that locate the leaf spring and shackle, so ride height and spring rate stay as built.
Why replace leaf spring bushings on a truck that still drives well?Worn bushings let the solid rear axle move under load, which shows up as rear steer, wander on the highway and instability under heavy braking, often while towing.
Do the bushings need grease at every service?No. The bushing bores use grease retention grooves that hold the supplied lubricant, so regular greasing is not part of normal maintenance.
Are the bushings usable off road and in competition?Yes. SuperPro places no limitation on the scope of use, so on road, off road and motorsport use remain covered.
What warranty applies to this kit?SuperPro covers this bushing range with a limited lifetime warranty to the original purchaser for manufacturing defects, excluding installation damage and impact damage.
What tools are needed for installation?A press or a suitable bushing removal tool is normally required to remove the original bushings from the spring eye and shackle, along with standard hand tools and a torque wrench.
Installation Instructions
- Park the truck on a level surface, chock the front wheels and support the rear of the vehicle safely on stands with the axle supported.
- Remove the rear wheels if additional access to the spring eye and shackle is required.
- Support the leaf spring with a jack so the spring does not drop when the fasteners are released.
- Remove the shackle and front spring eye fasteners and lower the spring far enough to expose the bushing bores.
- Press or drive the original bushings and steel sleeves out of the spring eye and shackle, then clean and inspect the bores for damage or ovality.
- Apply the supplied grease to the outer face of the new polyurethane bushings and to the plated sleeves.
- Press the new bushings into place, then fit the plated bushing and bolt sleeves so the bushing bore is fully supported.
- Reposition the leaf spring, refit the shackle and spring eye fasteners by hand and check that the KIT304RK bushings sit square in their mounts.
- Load the suspension back to normal ride height, then torque all fasteners to the Ford service specification.
- Refit the wheels, lower the vehicle and torque the wheel fasteners.
- Road test the truck, then recheck the fasteners and the bushing seating after the first short drive and again after towing or loaded use.
