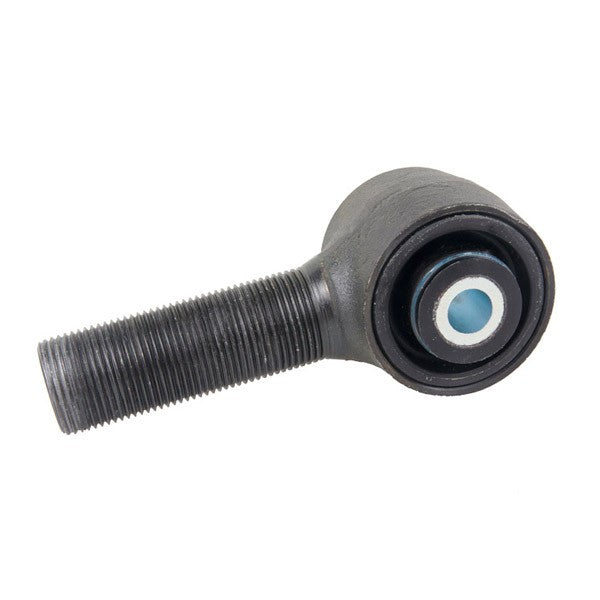

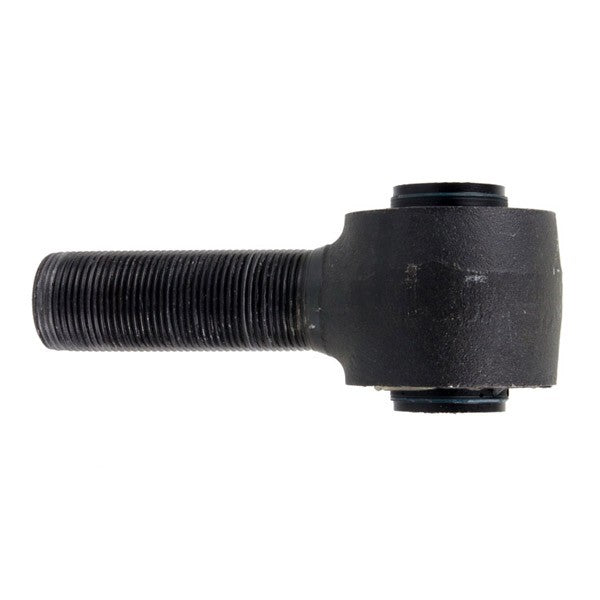

Synergy DDB Dodge Lower Control Arm Bushing 16MM 4800-02
Synergy DDB Dodge Lower Control Arm Bushing 16MM 4800-02
Synergy DDB Dodge Lower Control Arm Bushing 16MM 4800-02
Synergy DDB Dodge Lower Control Arm Bushing 16MM 4800-02
Click to zoom in

Synergy 00-13 Ram 1500/2500 4x4 LCA Dual Durometer Bushing In Forged Housing 16MM Bolt 2.618in Wide

Synergy Mfg
SYN4800-02
887753142375
Bushing Kits
Out of stock
$ 60.00

SKU: 4800-02

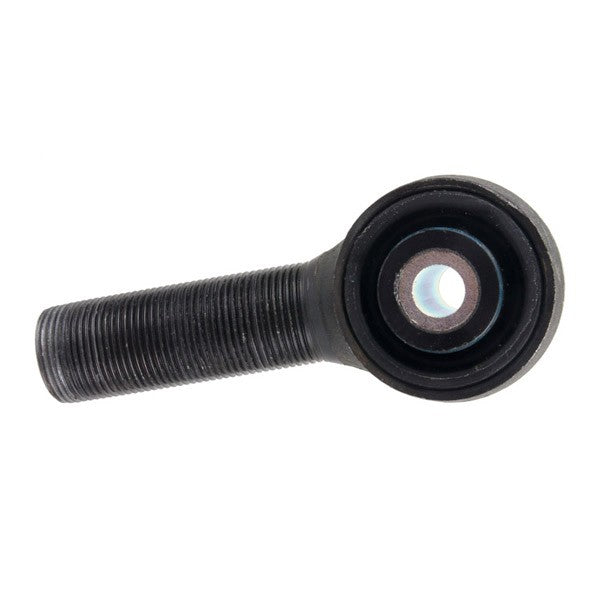

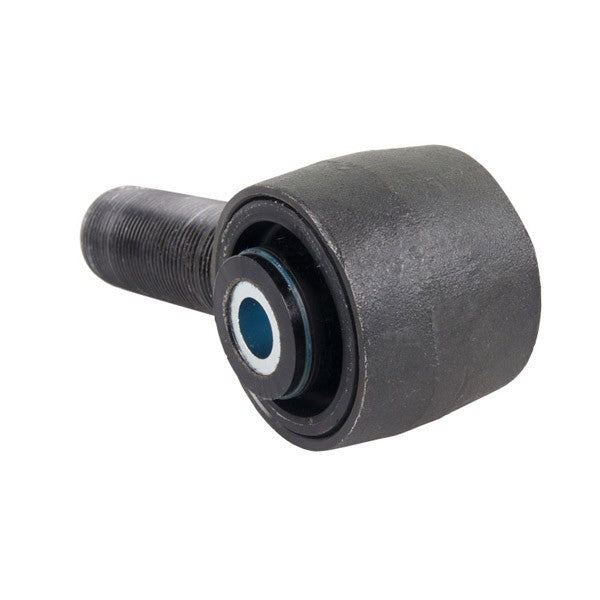

Synergy Dual Durometer Bushings (DDB) in Forged Housings

Weight: 2.55 lbs

Synergy Dual Durometer Bushings (DDB) in forged housings have all the benefits of our Dual Durometer Bushings in a forged housing package. These are available for all Synergy products that use a Johnny Joint or rod end. See table for applications and specs. May be compatible with other products.

Fitments:

Part #

Description

Mounting Width

Bolt Size

Shank

4800-01

LOWER CONTROL ARM JOINT

2.625"

9/16" / 14MM

1 1/4-12 LH

4800-02

DODGE LOWER CONTROL ARM JOINT

2.625"

5/8" / 16MM

1 1/4-12 LH

4801-21

UPPER CONTROL ARM JOINT

2.32"

9/16" / 14MM

1-14 LH

4801-22

JEEP JK REAR UPPER CONTROL ARM FRAME SIDE JOINT

2.625"

9/16" / 14MM

1-14 LH

4802-31

JEEP TRACK BAR JOINT

1.60"

9/16" / 14MM

3/4-16 LH

4802-32

JEEP TRACK BAR JOINT

1.60"

1/2" / 12MM

3/4-16 LH

4803-41

DODGE TRACK BAR JOINT

1.60"

9/16" / 14MM

7/8-14 LH

4803-42

DODGE TRACK BAR JOINT

1.60"

5/8" / 16MM

7/8-14 LH

4803-62

FORD BRONCO REAR TRACK BAR JOINT

2.188"

5/8" / 16MM

7/8-14 LH

4804-21

DODGE FRONT UPPER LONG ARM JOINT

2.32"

9/16" / 14MM

1 1/4-12 LH

4805-12

JEEP TJ REAR UPPER CONTROL ARM JOINT

2.00"

10MM

7/8-14 LH

4807-01

JEEP JK FRONT LOWER SHORT ARM FRAME SIDE JOINT

2.625"

9/16" / 14MM

1 1/4-12 LH @ 6.3 DEG ANGLE

4807-02

JEEP JL FRONT LOWER SHORT ARM FRAME SIDE JOINT

2.625"

5/8" / 16MM

1 1/4-12 LH @ 6.3 DEG ANGLE

4807-04

BONCO REAR LOWER CONTROL ARM

2.91"

5/8" / 16MM

1 1/4-12 LH @ 6.3 DEG ANGLE

4807-05

BRONCO REAR UPPER CONTROL ARM

2.76"

5/8" / 16MM

1 1/4-12 LH @ 6.3 DEG ANGLE

4808-21

JEEP JK REAR UPPER SHORT ARM AXLE SIDE JOINT

2.32"

9/16" / 14MM

1-14 LH @ 6.3 DEG ANGLE

4810-02

14+ RAM TRACK BAR JOINT

1.63"

18MM

1-14 LH @ 12 DEG ANGLE

4810-11

14+ RAM TRACK BAR JOINT

1.63"

18MM

1-14 LH @ 13 DEG ANGLE

4811-01

JEEP TRACK BAR JOINT

1.60"

9/16" / 14MM

7/8-14 LH

4812-01

JEEP TRACK BAR JOINT

1.60"

9/16" / 14MM

7/8-14 LH @ 12 DEG ANGLE

4812-02

94 - 13 RAM TRACK BAR JOINT

1.60"

9/16" / 14MM

7/8-14 LH @12 DEG ANGLE

Features:

  • Dual Durometer Bushings (DDB) feature a maintenance free, grease less design
  • Housings are forged from high strength 1045 steel and treated for corrosion resistance
  • Control arm bushings are self centering with 30 degrees of misalignment
  • Outer "soft" durometer acts as bushing cushion and flex material
  • Inner "hard" durometer lining acts as the bearing surface to allow free floating inner sleeve to rotate.
  • Provides for a maintenance free "zero bind" bushing
  • Internal bushing ring separates inner and outer materials to prevent inner sleeve gaping at extreme flex
  • Direct replacement available for Synergy products using a Johnny Joint or rod end
  • Available complete with bushing installed

Notes:

  • For 94-02 Ram track bar applications, the track bar conversion bracket part number 8554-02 is required to be used

Manufacturer: Synergy Mfg

Description: Synergy 00-13 Ram 1500/2500 4x4 LCA Dual Durometer Bushing In Forged Housing 16MM Bolt 2.618in Wide

Product Name: SYN Bushings

Box 1 Dims (LxWxH-W): 7 x 6 x 3 - 2.8

Born On Date: 09-30-2021
