Synergy Jeep JL/JT Front Lift Springs JL 2 DR 3.0in JLU 4 DR 2.0 Inch

SKU: 8863-40

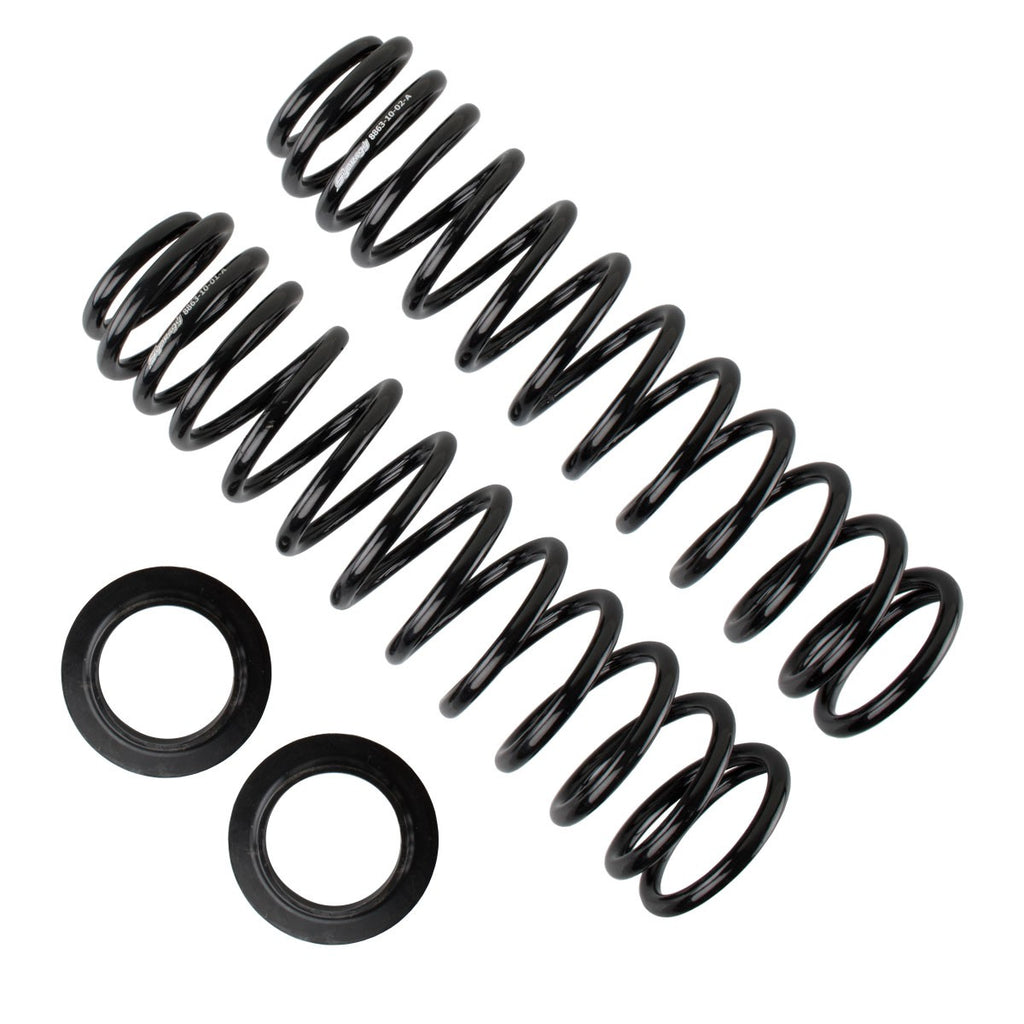

Synergy Jeep JL / JLU / JT Front Lift Coil Springs

Synergy MFG Jeep JL / JLU / JT Multi-Rate Front Lift Coil Springs. Synergy MFG has designed these springs from a clean sheet for the new Wrangler platform. All springs are multi-rate and have been designed to make a great platform even better. These springs are unique to the JL and not shared with the JK or other vehicles. Like OEM, Synergy coil springs are unique lengths to account for load differences on each corner of the vehicle. There are right and left specific springs front and rear to guarantee the vehicle will sit level. Springs are designed to be used with up to .75 inch of front spring spacer without requiring additional bump stop spacing. Multi-rate design has a softer initial rate which prevents the spring from coming loose in the coil tower, even with long travel shocks. The ride rate is slightly stiffer than the OEM springs to account for additional weight from bumpers, winches, skid plates and gear. Springs are proudly manufactured in the United States of the highest quality steel. Springs are designed to be able to set solid (fully collapse) without overstressing the material and are pre-set from the factory meaning the springs will never sag or set.

Fitments:

Ride Height Chart for Jeep JL / JT Models:

Note:

• Lift heights are based off the Rubicon 3.6L model with HD front / rear bumpers, winch, and full size spare
• If you have an XR equipped Jeep the lift height will be 1" less than the posted ride height in the table below

Benefits:

• Increased ride quality
• Increased wheel travel/articulation/traction
• No spring bowing
• Lifetime warranty/guarantee against sagging and breakage

Features:

• Multi-Rate coil springs allow for longer spring lengths and increased travel
• Spring rates are only 5-10 percent stiffer than stock for superior ride quality
• Coil spring block heights designed around common bump stop spacings to optimize wheel travel
• Ground and closed lower spring ends to prevent bowing

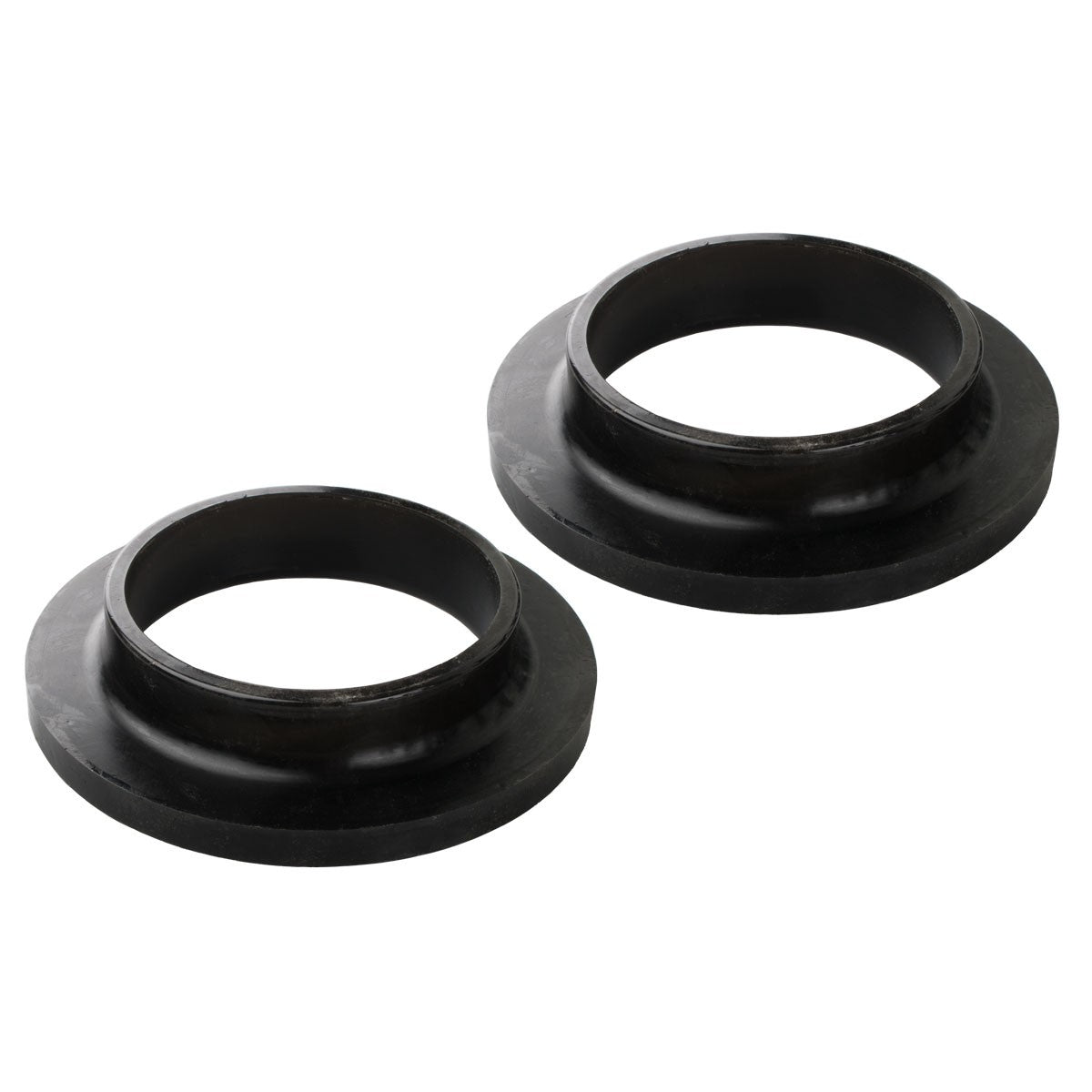

• Includes front lower coil spring isolators to match the ground and closed spring ends
• Unique spring lengths for each corner of the vehicle so it will sit level side to side
• Frequency balanced and tuned spring rates to maximize suspension performance on and off road
• Abrasion-resistant black powder coat finish for maximum durability and corrosion resistance
• Sold in pairs

Notes:

• Coil springs require proper bump stop spacing with Synergy 8057-10 Bump Stop Spacers.
• Lift heights are based off fully loaded Rubicon 3.6L models with HD front and rear bumpers and winch. Other models will see more lift.
• Coil springs retain the stock rake of the vehicle.
• For a level ride unloaded in a JT Gladiator, a 1 or 2 inch taller spring in the front compared to the rear is needed depending on model.
• Up to .75 inch of front coil spring spacer can be added to level the vehicle as well using 8017-075 front coil spring spacers.
• Min bump stop spacing listed is the minimum amount of bump stop spacing required to prevent the springs from going into coil bind. Do not use less bump stop spacing.

Installation Instructions

Additional Information:

The Jeep JL / JT platform required a new approach to coil springs. We could have re-used existing coil springs already in our portfolio, and they would be close, but close wasn't good enough. Instead, we designed our JL / JT coil springs from the ground up, to account for all of the differences in this new platform. We have gone through many iterations of spring rates, lengths and designs. Each of these prototypes was tested on road and off, all the way from the Rubicon to Colorado. These springs were not considered done until we were confident we had a part that is measurably better than anything else on the market.

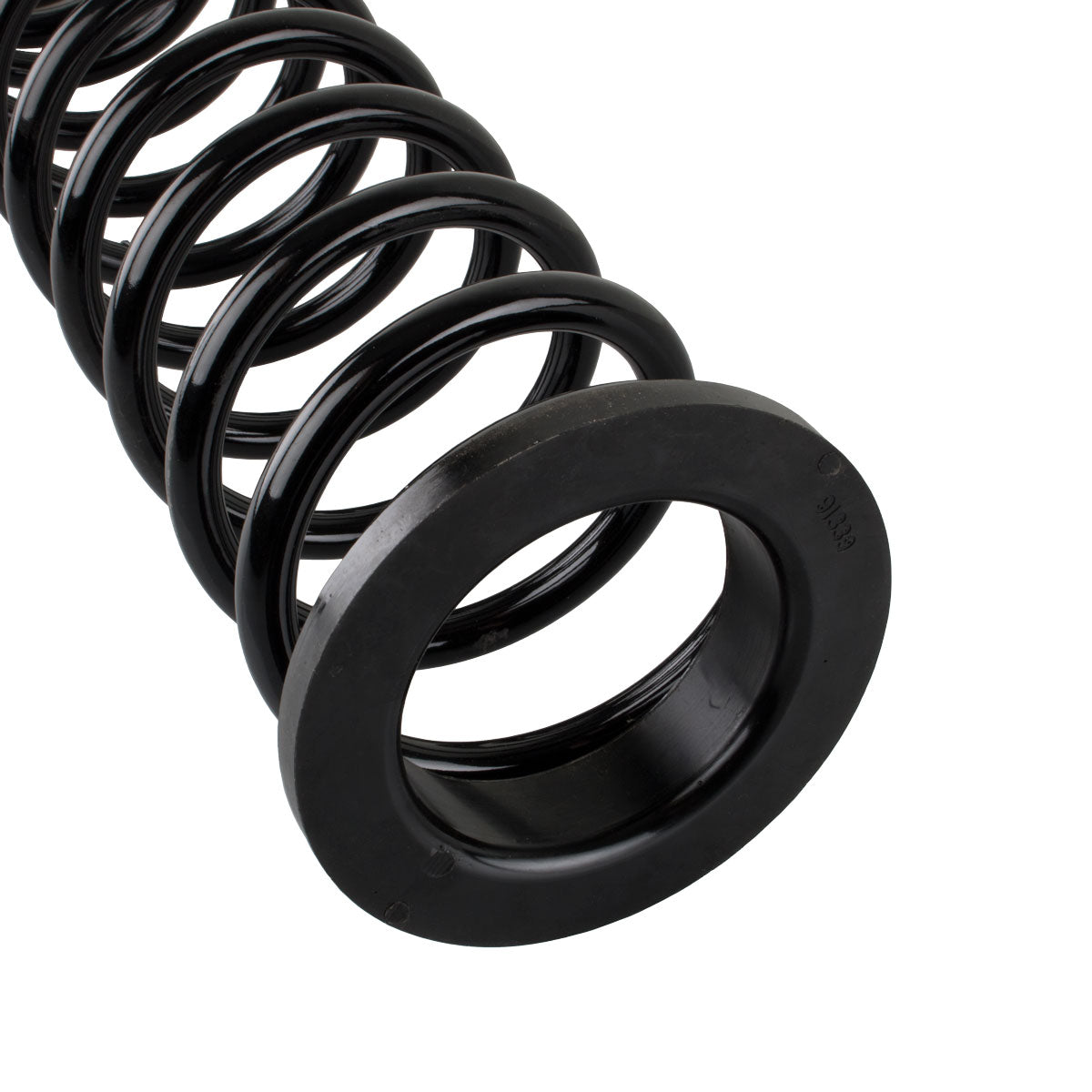

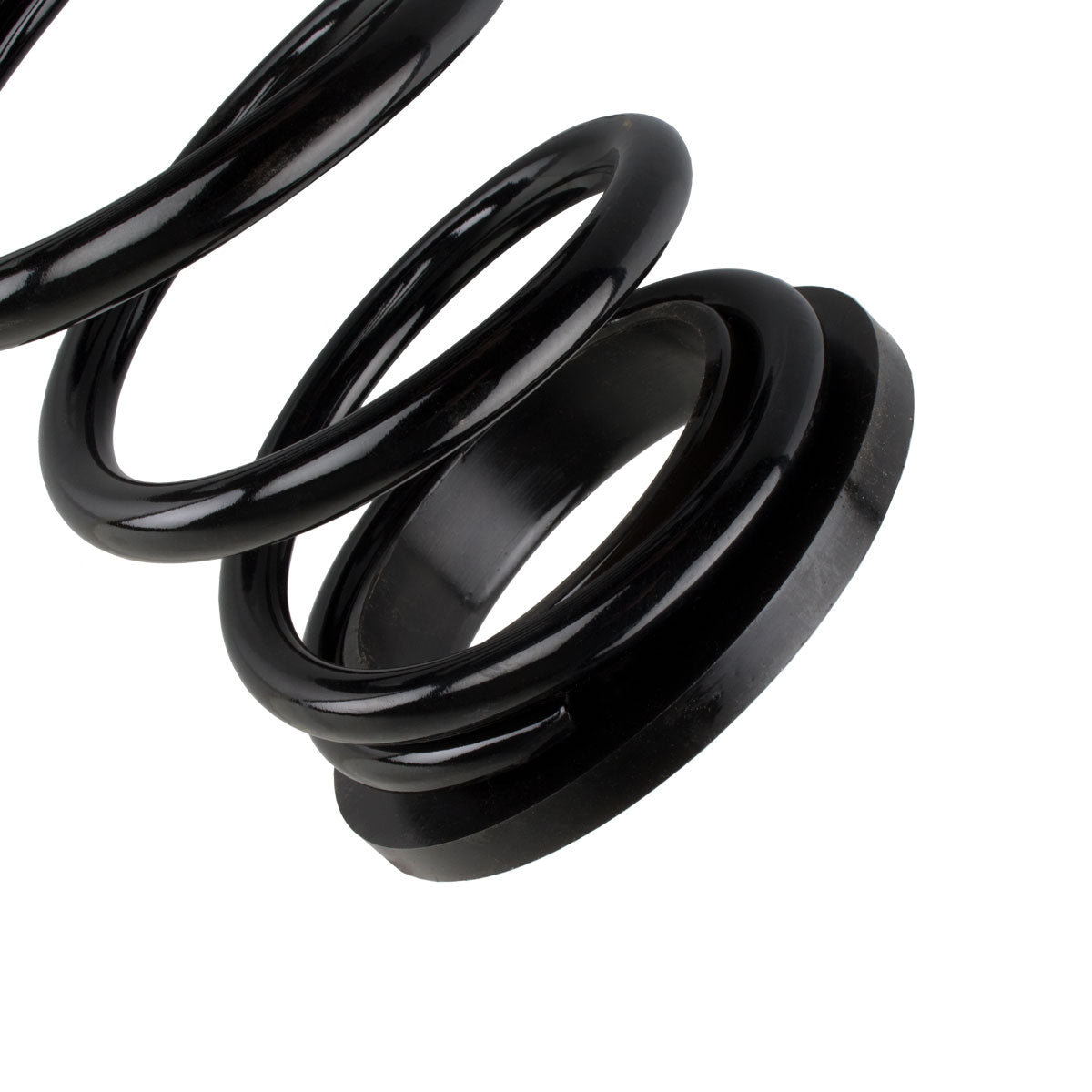

There have been a multitude of accounts of front coil springs bowing with lift kits installed since the JL was released and they spanned Jeep's own Mopar lift kits and those available from the aftermarket. Through our own R&D it was obvious the OEM lower spring isolators were the culprit, they just weren't designed to be used with longer travel springs. Our take on this is a novel one for direct fit springs and we are the first to do it. Instead of leaving the bottom of the coil spring in an open pigtail that has to correctly key into the lower isolator, we have instead added a manufacturing process that closes and grinds the bottom of the coil spring to make it perfectly flat. We pair this with our included flat lower isolator and it results in a perfect fit-up every time with no opportunity for error. This spring interface is familiar if you have any experience with coil-overs where the coil-over springs must seat against a flat spring plate.

Like most other high-end long travel coil springs on the market, we take advantage of using multiple spring rates to increase the extended travel of the spring. Gone are the days where coil spring retainers are required to keep your springs from falling out on the trail. From our experience, there is a lot of misunderstanding on how multi-rate coil springs work, and why they would be preferred over linear-rate coil springs and vice-versa. In short, it depends on the application and what constraints we are working with. With the new JL platform we were able to design a dual rate coil spring with a softer initial rate that is effectively collapsed at ride height. This softer initial rate adds to the effective overall length of the spring without adding more lift to the ride height of the Jeep. This allows us to keep a lower ride height and lots of down travel. At ride height the spring rate is effectively linear, which is desirable for tunability (shock valving), and predictability (driving feel). The springs are designed to maintain as much up travel as stock while adding to the available down travel, which increases traction, stability, and safety off road.

Our spring rates were kept just above stock Rubicon spring rates in order to maximize flex and traction off road. We did increase the spring rate slightly (less than 10%) in order to accommodate for the added weight of the typical accessories and armor (winches, bumpers, skid plates, gear, etc.).

Due to variances between Jeeps and how they are used, we designed these springs to match the stock rake of a fully loaded Rubicon. If you want the vehicle to sit level (without the stock rake) when unloaded, our front coil springs will accommodate up to a .75 inch front coil spacer without requiring additional bump stop spacing (8017-075). This means that the ride height and rake of the Jeep can be fine-tuned in order to get the perfect ride height without compromise.

Synergy MFG Jeep JL front coil springs have very long free (extended) lengths. Due to this fact, we generally recommend that the end user make sure they are using the correct shocks in order to maximize available wheel travel. Our shortest springs will allow for around 12 inches of wheel travel front and rear. Taller springs will allow for more wheel travel. Generally, aftermarket shocks are spec’d short in order to prevent typical coil springs from falling out. We recommend at least one length longer shock for a given lift height (For example: use a 3.5-4 inch lift Fox shock with our 2 inch springs). Make sure the shock mounts and bump stops are setup to prevent the shock from bottoming out before the bump stops do. If using the stock front driveshaft, do not use shocks with an extended length greater than 29 inches. The driveshaft may contact the cross member and the stock Rzeppa joint will be damaged due to over-extension.

Manufacturer: Synergy Mfg

Description: Synergy Jeep JL/JT Front Lift Springs JL 2 DR 5.0in JLU 4 DR 4.0 Inch

Product Name: SYN Springs

Box 1 Dims (LxWxH-W): 23.9 x 12.3 x 6.4 - 33.8

Born On Date: 09-28-2021
