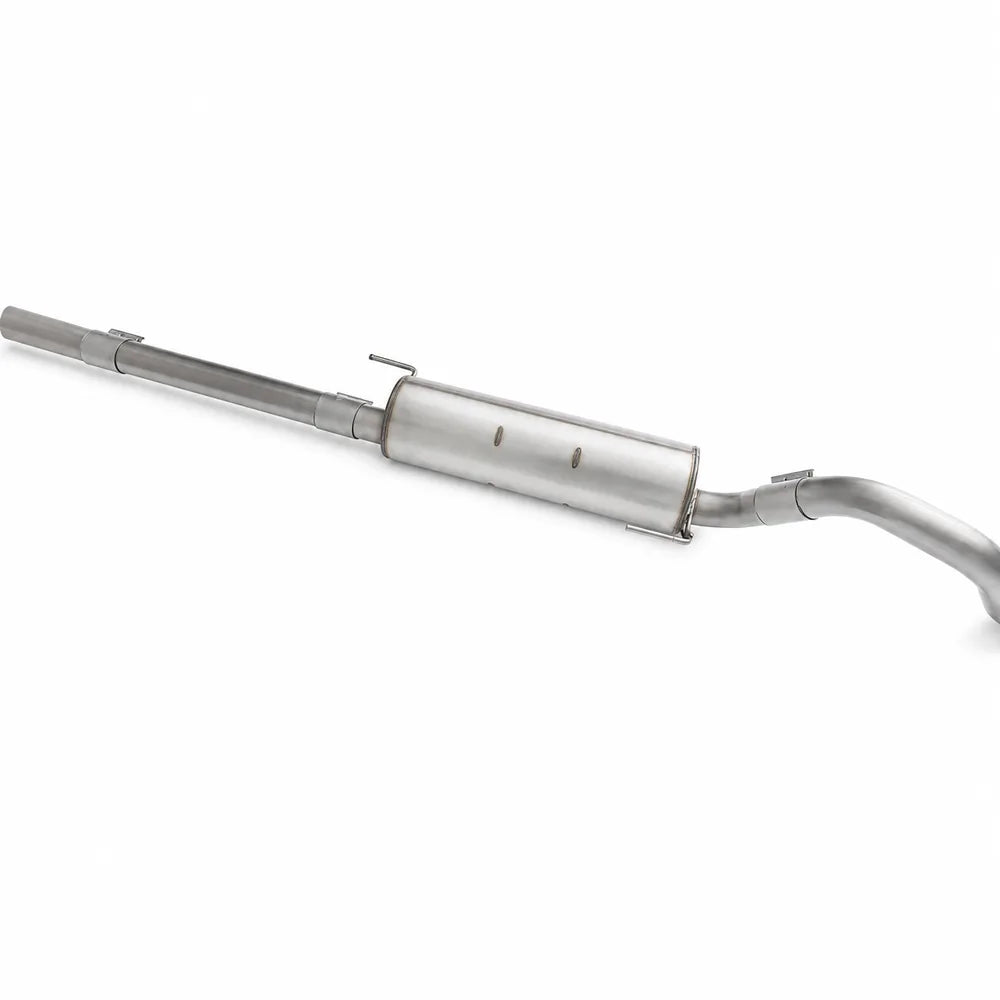

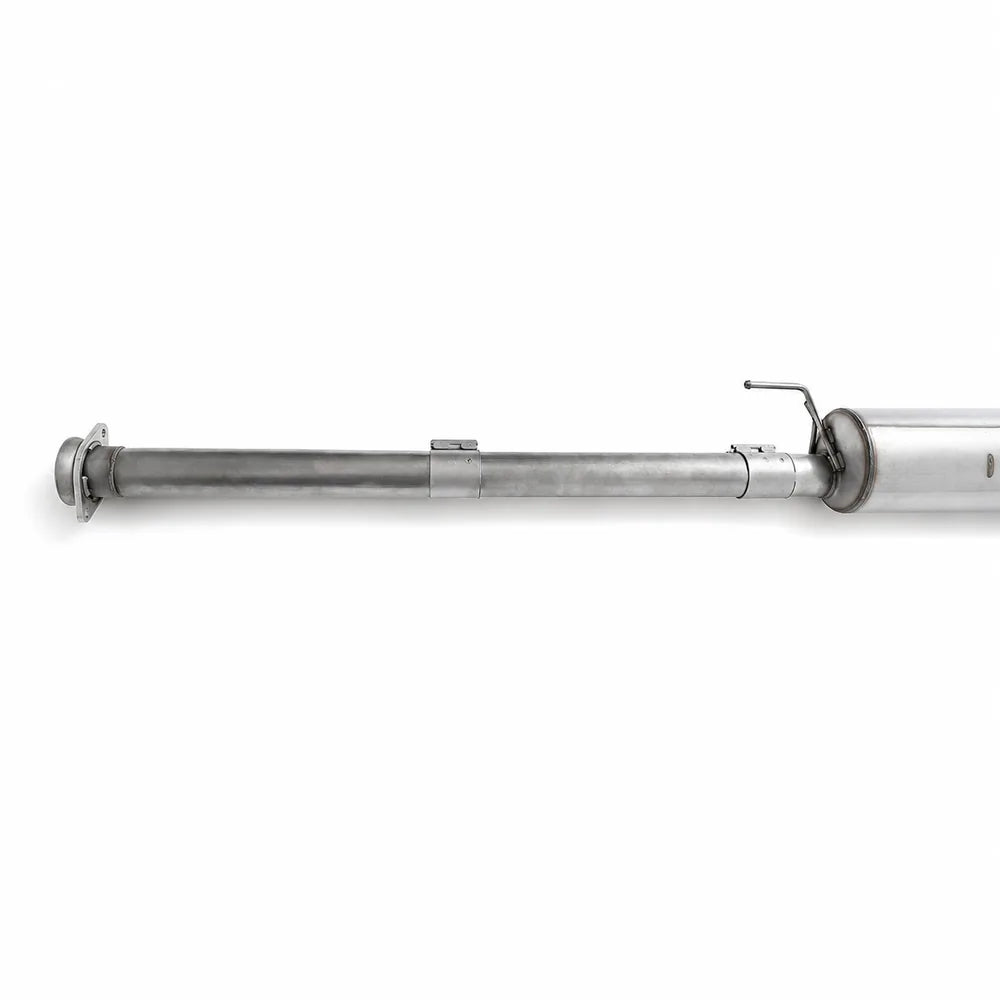

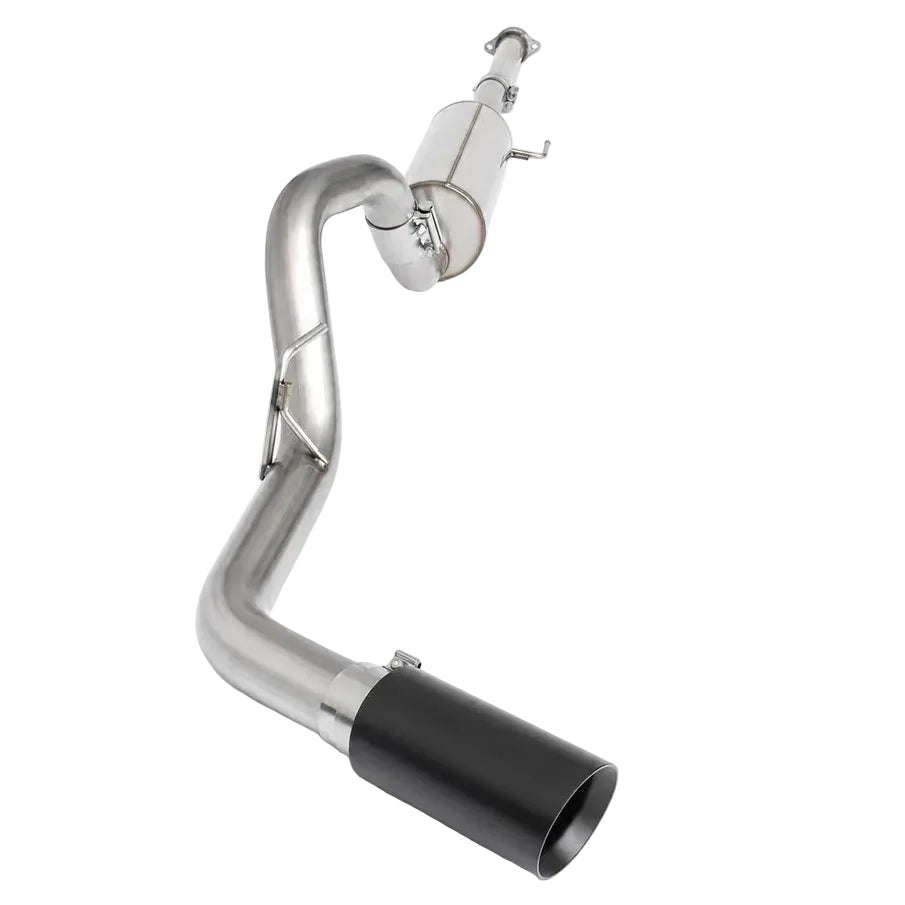

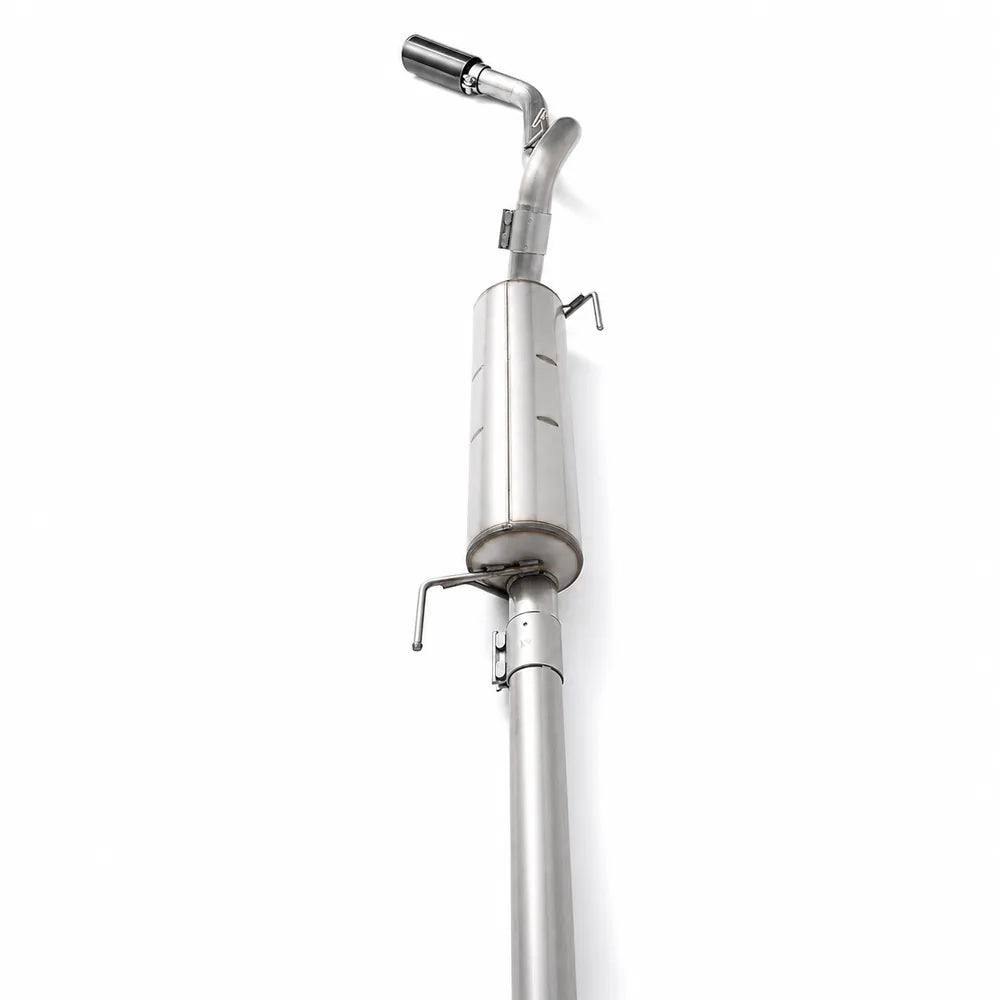

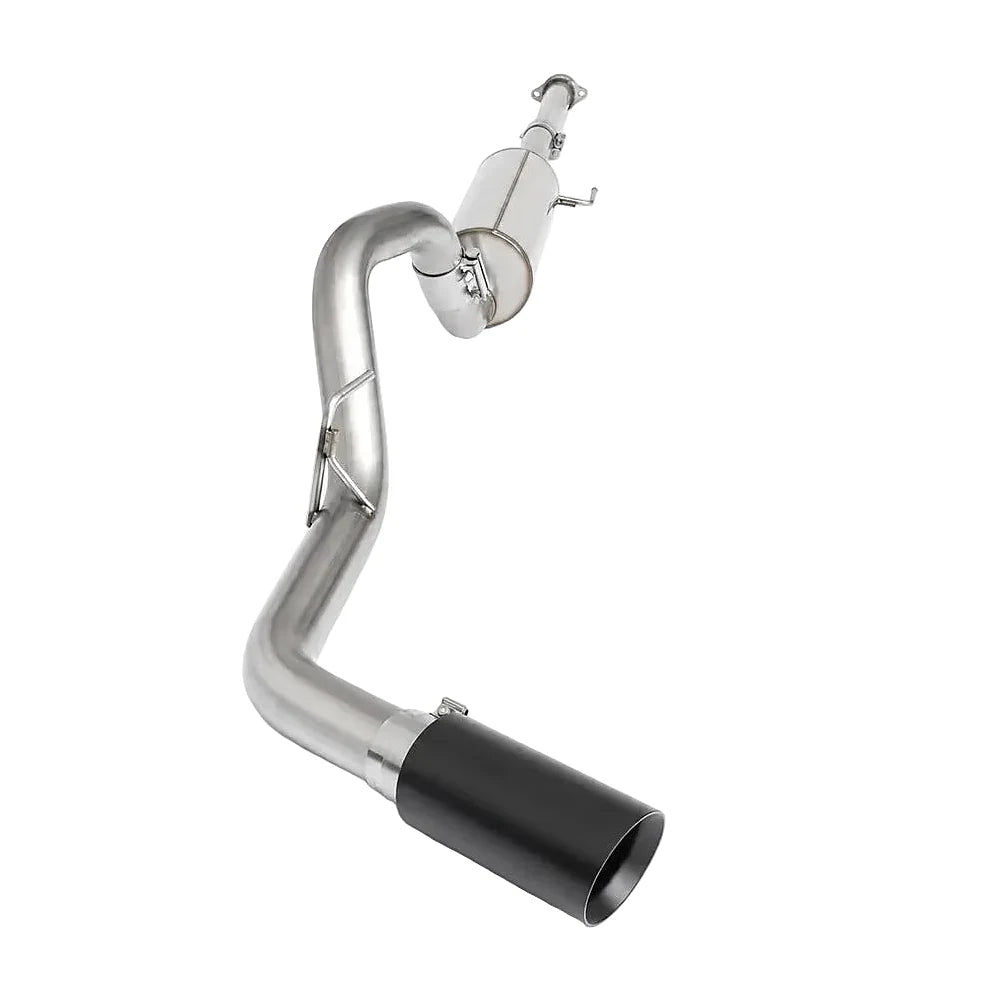

Thermal R&D 3" Single Exit Cat-Back Exhaust - Coated Tip

Drone-Free Power for Your 2015-2020 F-150 EcoBoost

Stop fighting cabin drone on the highway. The Thermal R&D 3" Single Exit Cat-Back Exhaust System uses True Helmholtz Technology to cancel out the resonant boom that plagues most aftermarket exhausts, giving you an aggressive tone at throttle and a quiet, comfortable cruise. Built specifically for SuperCrew 6.5ft Bed trucks on the 157" wheelbase, this direct bolt-on system installs in a weekend using your factory hangers, with no cutting or welding.

Key Features

• True Helmholtz Technology cancels drone without muffling performance sound
• 3" mandrel-bent T304 stainless steel tubing for maximum flow and corrosion resistance
• Single coated exhaust tip for a clean, blacked-out finish
• Direct bolt-on to factory OEM catalytic converter/downpipe connection
• Uses OEM hangers, no cutting or welding required
• Lifetime Manufacturer's Warranty
• Made in the USA

Fitment

Fits Super Crew cab trucks with a 6.5ft bed only. Please verify your cab/bed configuration and wheelbase before ordering. Thermal R&D produces separate part numbers for each configuration.

Specifications

What's Included

• 1x Thermal R&D 3" Cat-Back Exhaust System (mid-pipe to tip)
• 1x Coated Exhaust Tip
• All necessary hardware and clamps for bolt-on installation

About Thermal R&D

Thermal R&D specializes in performance exhaust systems engineered around True Helmholtz Technology, a patented approach to sound tuning that eliminates drone without sacrificing an aggressive exhaust note. Every system is mandrel-bent from T304 stainless steel and built in the USA to exacting tolerances, so it bolts on using your factory hangers with no cutting, welding, or fabrication needed.

Frequently Asked Questions

Will this fit my F-150 if I have a different bed length?
No. This specific part number (B928-C920-C) is engineered for Super Crew cabs with a 6.5ft bed and 157" wheelbase only. Thermal R&D makes separate part numbers for other cab/bed combinations.

Does this exhaust cause cabin drone?
No. True Helmholtz Technology is specifically engineered to cancel the resonant frequencies that cause drone, so you get a clean tone at all RPM ranges.

Do I need to cut or weld anything to install this?
No. This is a direct bolt-on system that connects to your factory catalytic converter/downpipe and uses your OEM exhaust hangers.

What tools do I need for installation?
A basic set of hand tools, a jack and jack stands (or a lift), penetrating oil for factory hardware, and about 1-2 hours of time.

Is this exhaust louder than stock?
Yes, it produces a noticeably more aggressive tone than the factory exhaust, especially under acceleration, while remaining civil at cruising speed thanks to the drone-cancelling design.

What is the tip finish?
This system comes with a single coated (black) exhaust tip.

Does this affect horsepower or towing capacity?
This system improves exhaust flow versus the factory system. It does not alter your truck's rated towing capacity.

Is there a warranty?
Yes, Thermal R&D backs this system with a Lifetime Manufacturer's Warranty against defects.

Installation Instructions

1. Raise the vehicle safely on a lift or jack stands and allow the exhaust to cool completely.
2. Apply penetrating oil to factory exhaust hanger rubber isolators and clamp bolts.
3. Disconnect the factory exhaust system at the catalytic converter/downpipe connection.
4. Remove the factory exhaust system from the hangers and set aside.
5. Position the Thermal R&D cat-back system and loosely secure it to the factory hangers.
6. Connect the new system to the catalytic converter/downpipe using the supplied clamp.
7. Align the tip for proper clearance from the bumper, then tighten all clamps and hardware.
8. Lower the vehicle and start the engine to check for leaks or rattles.
