Stop front end sag and add real load control to your 3500HD without air lines or maintenance

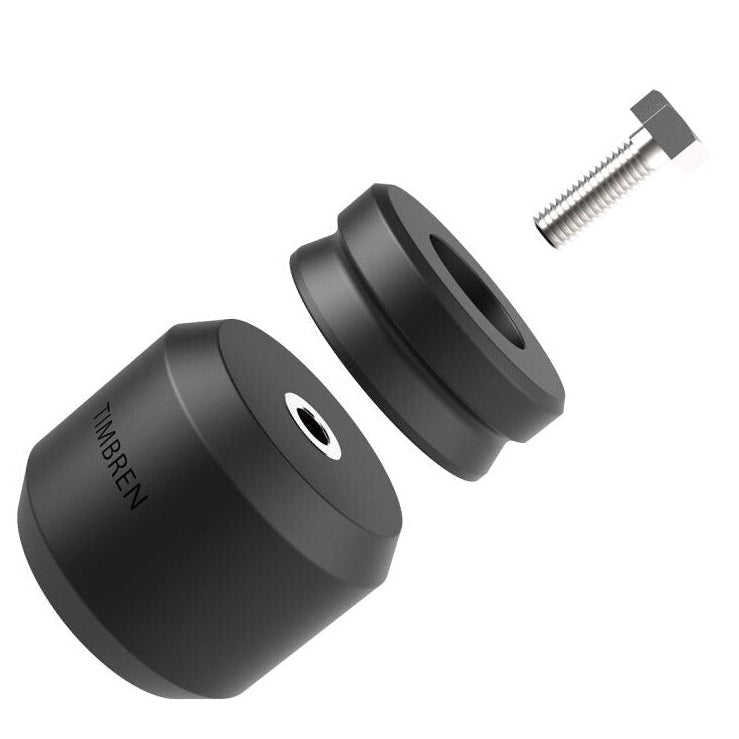

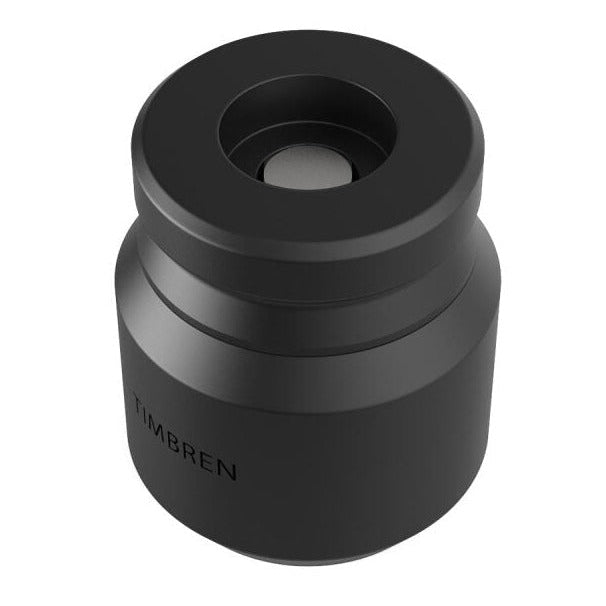

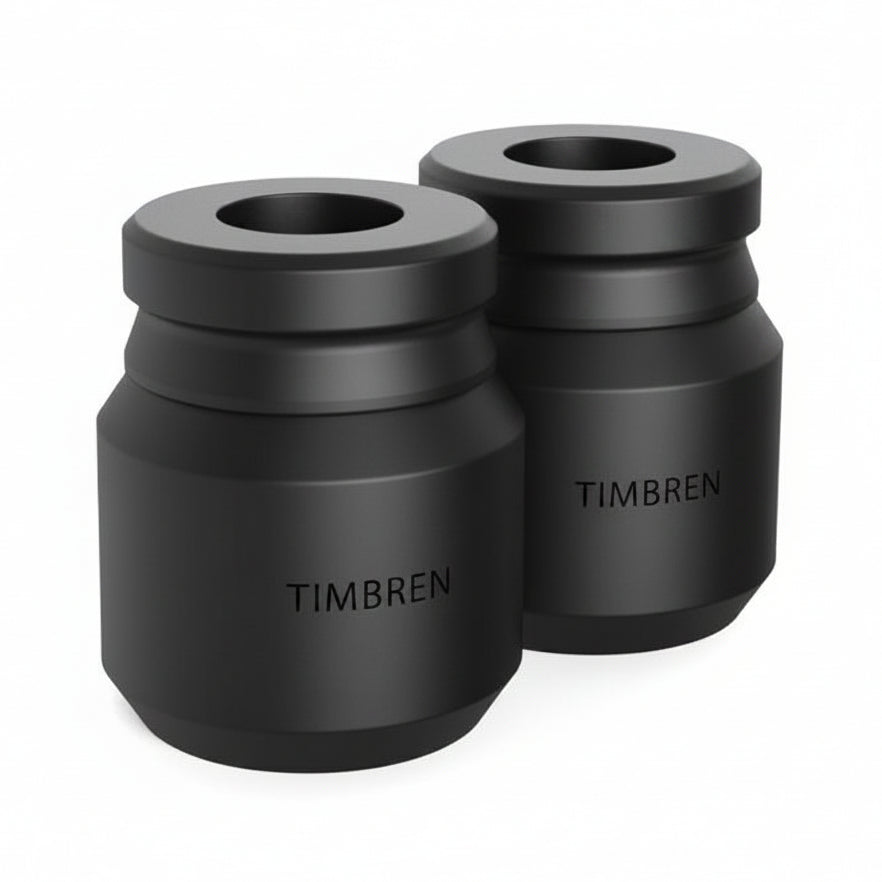

The Timbren GMFK25E front suspension enhancement system replaces the factory front bump stops on the 2024-2026 Chevrolet Silverado 3500HD and GMC Sierra 3500HD with a pair of Aeon rubber helper springs rated to a combined 8,600 lbs. GMFK25E delivers a progressive spring rate that pushes back harder as load increases, which reduces front-end sag and sway when a snowplow or heavy front-end accessory is mounted. The kit bolts directly to the factory mounting slots with no drilling, no air lines, and no welding required.
Key Features
- GMFK25E reduces front-end sag and sway under snowplow or heavy accessory loads.
- Progressive-rate Aeon rubber springs push back harder as load increases.
- Zero post-installation maintenance, unlike air bag systems that need line and pressure checks.
- Direct bolt-on install to factory mounting slots, no drilling or welding.
- Combined 8,600-lb capacity rating between the two springs.
- Does not raise the vehicle at factory ride height and does not increase GVWR.
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2024-2026 | Chevrolet | Silverado 3500 HD | WT |
| 2024-2026 | Chevrolet | Silverado 3500 HD | LT |
| 2024-2026 | Chevrolet | Silverado 3500 HD | LTZ |
| 2024-2026 | Chevrolet | Silverado 3500 HD | High Country |
| 2024-2026 | GMC | Sierra 3500 HD | Pro |
| 2024-2026 | GMC | Sierra 3500 HD | SLE |
| 2024-2026 | GMC | Sierra 3500 HD | SLT |
| 2024-2026 | GMC | Sierra 3500 HD | AT4 |
| 2024-2026 | GMC | Sierra 3500 HD | Denali |
| 2024-2026 | GMC | Sierra 3500 HD | Denali Ultimate |
Specifications
| Detail | Value |
|---|---|
| SKU | GMFK25E |
| Brand | Timbren |
| Axle Position | Front |
| Spring Type | Aeon rubber, progressive rate |
| Combined Capacity | 8,600 lbs |
| Installation | Bolt-on, no drilling or welding |
| Ride Height Change | None at factory height, unloaded |
| Warranty | Limited lifetime warranty against defects in material and workmanship |
| UPC | Not published |

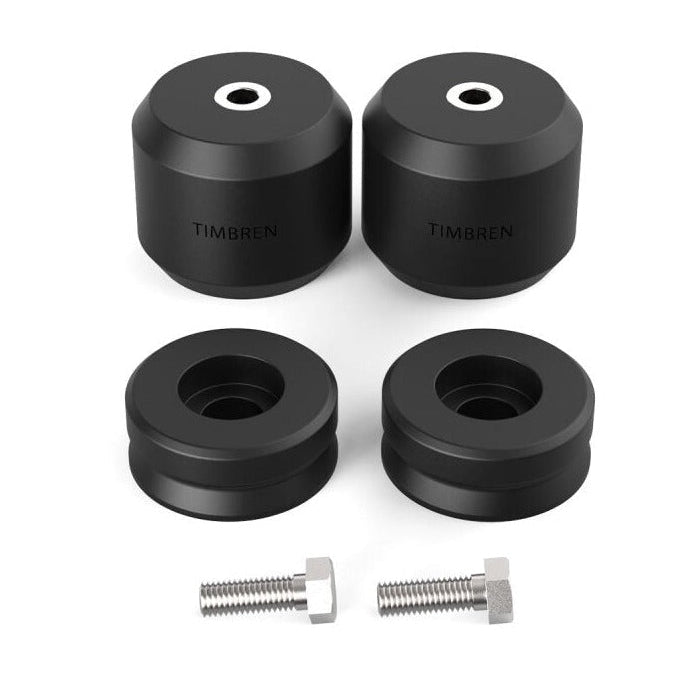

What's Included
- Two Aeon rubber helper springs (GMFK25E front kit)
- Vehicle-specific mounting brackets
- All hardware needed to bolt the kit to factory mounting slots
About Timbren
Timbren builds suspension enhancement systems for trucks, vans, and trailers that carry heavy loads or tow regularly. Its Aeon rubber spring technology is engineered to add load-carrying support without the maintenance requirements of air-ride systems.
Related Parts
Frequently Asked Questions
What is the GMFK25E?The GMFK25E is a Timbren front suspension enhancement kit that replaces the factory bump stops on the 2024-2026 Chevrolet Silverado 3500HD and GMC Sierra 3500HD with progressive-rate Aeon rubber springs rated to a combined 8,600 lbs.
Does this kit increase my truck's GVWR?No. This kit increases the spring rate to reduce sag and sway under load, but it does not raise the Gross Vehicle Weight Rating set by the manufacturer. Always stay within your truck's rated capacity.
Will this kit raise the front end of my truck?At factory ride height and with no load, the kit does not raise the front end. The rubber spring is designed to sit in contact with the front axle and only engages additional support as load increases.
Does installation require drilling or welding?No. The kit bolts directly to the factory front mounting slots using the included hardware and brackets, with no drilling or welding required.
How long does the install take?Most installers complete the front kit install in under 30 minutes per side using basic hand tools, right in the driveway.
What maintenance does the kit require after installation?None. Unlike air bag suspension systems, this kit has no air lines, fittings, or pressure to monitor once it is installed.
Is this kit compatible with a snowplow mount?Yes. It is commonly installed on trucks running a front snowplow or heavy front-end accessories to counter the added front-end weight and reduce sag.
What is covered under the warranty?Timbren covers GMFK25E under a limited lifetime warranty against defects in material and workmanship for the life of the vehicle it was originally installed on.
Install Instructions
- Raise the front of the vehicle with a jack until the front axle hangs freely, and remove the wheels if needed for access.
- Use a screwdriver or pry bar to remove the factory bump stop from each side of the front bump stop cup.
- Position each Timbren Aeon spring assembly with the rubber spacer facing up toward the cup.
- Apply soapy water to the rubber spacer, then push and twist the assembly until it is fully seated in the cup.
- Bolt the vehicle-specific bracket to the factory mounting slots using the supplied hardware.
- Lower the vehicle and confirm the rubber spring makes contact with the front axle at ride height.
- Repeat the process on the opposite side, then reinstall the wheels if removed.
