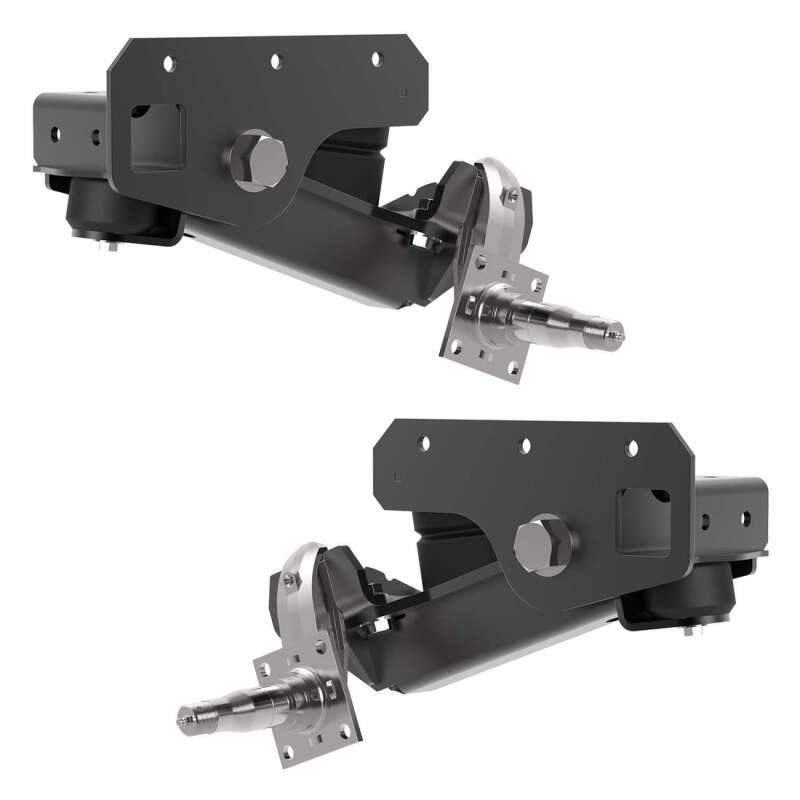

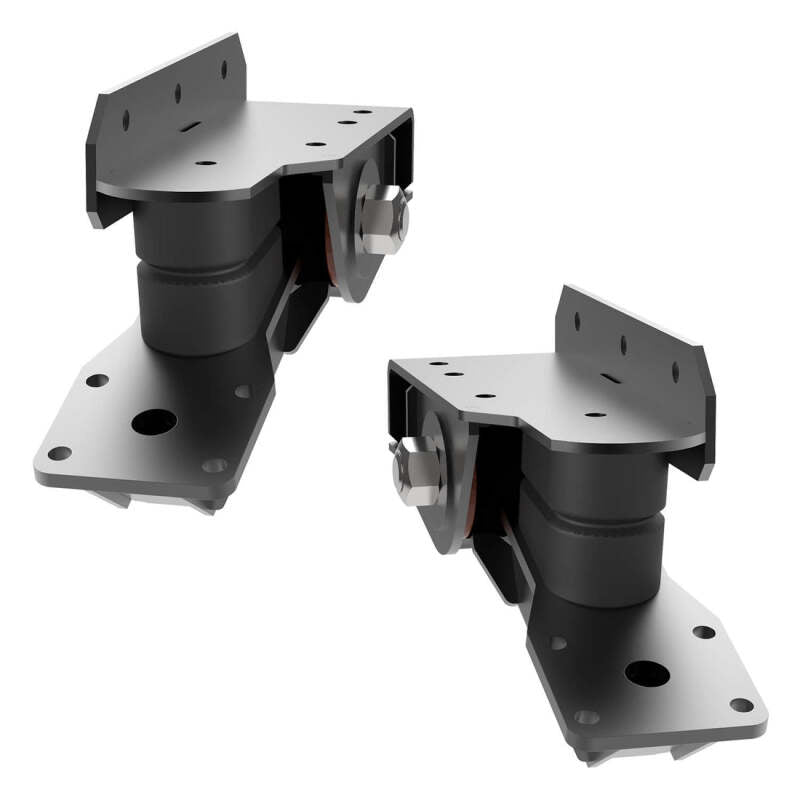

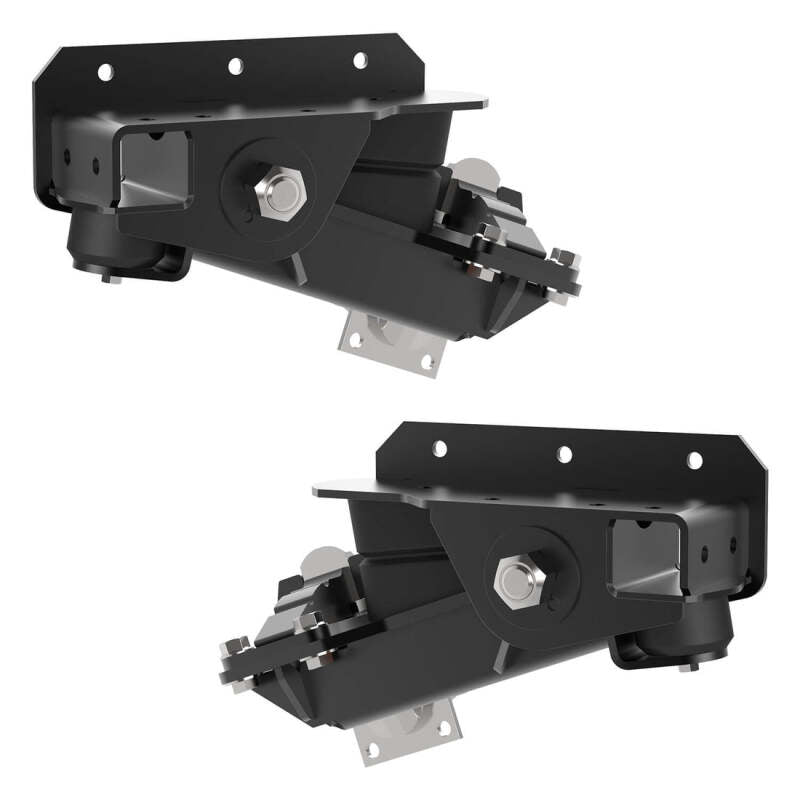

Independent Trailer Suspension with Four Inches of Lift
Timbren ASR3500S06 replaces a conventional through axle with two independent bolt-on suspension units rated together at 3,500 lb. The system combines 4-inch lift arms, standard E-Z Lube spindles, Aeon rubber springs, and brake mounting flanges for custom and retrofit trailer builds.
Key Features
- Axle-less design removes the through axle and increases under-trailer clearance.
- Two independent suspension units provide a combined 3,500 lb capacity.
- Four-inch lift outboard arms increase deck and ground clearance.
- Standard-length tapered E-Z Lube spindles support tires up to ST215/75R15.
- Four-bolt brake mounting flanges allow compatible brakes to be installed separately.
- Aeon natural-rubber jounce and rebound springs reduce shock, rattle, and bounce.
- Polyurethane pivot bushings help maintain controlled alignment.
- Black powder-coated construction and Grade 8 zinc-coated mounting hardware.
- Bolt-on installation with alignment shims supplied.
Fitment
| Application | Detail |
|---|---|
| Trailer type | Universal custom or retrofit trailer application |
| Frame width | Fits varying frame widths when the frame is square and properly reinforced |
| Capacity | 3,500 lb per complete pair |
| Maximum tire size | ST215/75R15 with a standard trailer wheel and zero offset |
| Brakes | Compatible brake assemblies sold separately |
Specifications
| Detail | Value |
|---|---|
| Brand | Timbren |
| MPN | ASR3500S06 |
| Product type | Axle-less trailer suspension kit |
| Capacity | 3,500 lb per pair |
| Ride height | 4-inch lift |

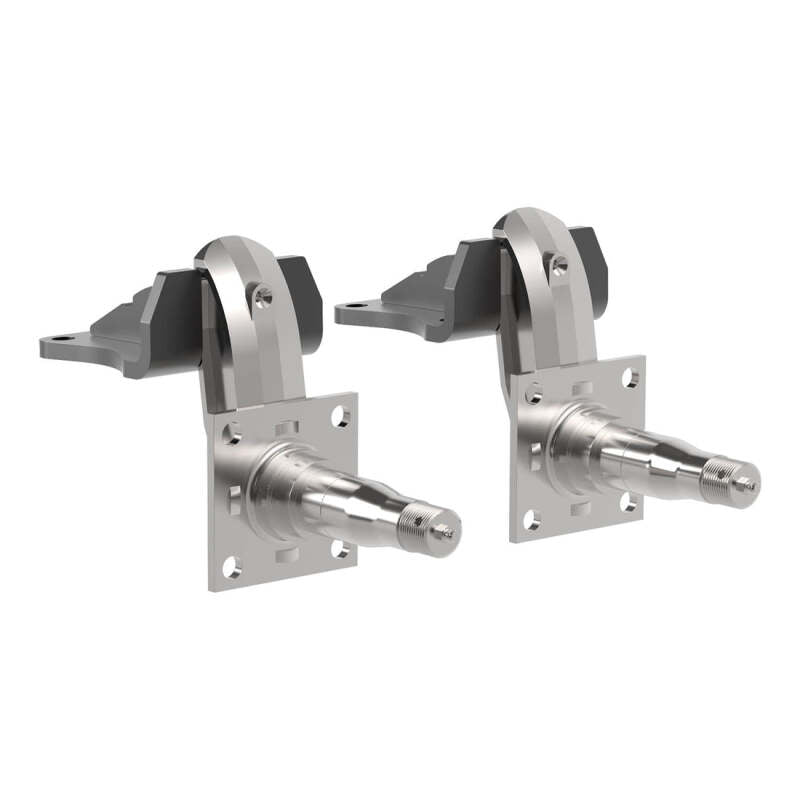

| Spindle | Standard-length tapered E-Z Lube |
| Brake flange | 4-bolt |
| Maximum tire size | ST215/75R15 |
| Spring type | Aeon natural rubber jounce and rebound springs |
| Pivot bushing material | Polyurethane |
| Finish | Black powder coat |
| Installation | Bolt-on; welding is not required |
| UPC | 809933009759 |
| Warranty | 3 years |
What's Included
- Driver-side and passenger-side suspension units
- Two 4-inch lift outboard arms with spindles and brake flanges
- Aeon jounce and rebound springs
- Polyurethane pivot bushings
- Grade 8 zinc-coated mounting hardware
- Eight alignment and camber shims
About Timbren
Timbren develops suspension products around its Aeon hollow-rubber spring technology. Its Axle-Less systems place a self-contained arm and spring assembly on each trailer frame rail, allowing independent movement without a conventional axle tube.
Related Parts
- Compatible trailer hubs, bearings, seals, and brake assemblies are required and sold separately.
- Select related components by spindle dimensions, bolt pattern, brake-flange pattern, and trailer load requirements.
FAQ
What is the ASR3500S06?
It is a complete 3,500 lb axle-less trailer suspension pair with 4-inch lift arms, standard E-Z Lube spindles, and brake mounting flanges.
Is the 3,500 lb rating for each side?
No. The rating applies to the complete driver-side and passenger-side pair.
Are hubs and brakes included?
No. The suspension includes spindles and brake flanges, while compatible hubs and brake assemblies are purchased separately.
What is the maximum tire size?
Timbren specifies up to ST215/75R15 when using a standard trailer wheel with zero offset.
Does the system fit every trailer width?
The independent units accommodate varying frame widths, but the frame must be square and provide suitable mounting and reinforcement.
Is welding required?
No. The system is designed for bolt-on installation.
What load range provides the best ride?
Timbren recommends an average operating load of approximately 60 to 80 percent of the rated capacity while still accounting for every maximum-load condition.
What maintenance is required?
Lubricate the pivot bushings and wheel bearings according to the supplied maintenance instructions and inspect mounting hardware regularly.
Install Instructions
- Confirm the trailer frame is square, structurally suitable, and able to accept vertically installed mounting bolts.
- Verify the 3,500 lb capacity, 4-inch lift height, tire size, and planned hub and brake components.
- Position the driver-side and passenger-side suspension units symmetrically on the frame rails.
- Mark and drill the mounting locations according to Timbren instructions.
- Install both units with the supplied Grade 8 hardware and any required frame reinforcement.
- Use the supplied shims to fine-tune camber and alignment.
- Install compatible brake assemblies, hubs, bearings, seals, wheels, and tires.
- Lubricate the pivot bushings and wheel bearings.
- Verify clearances, alignment, wiring, fastener torque, and loaded ride height before road use.
- Reinspect and re-torque the installation after the initial shakedown period.
