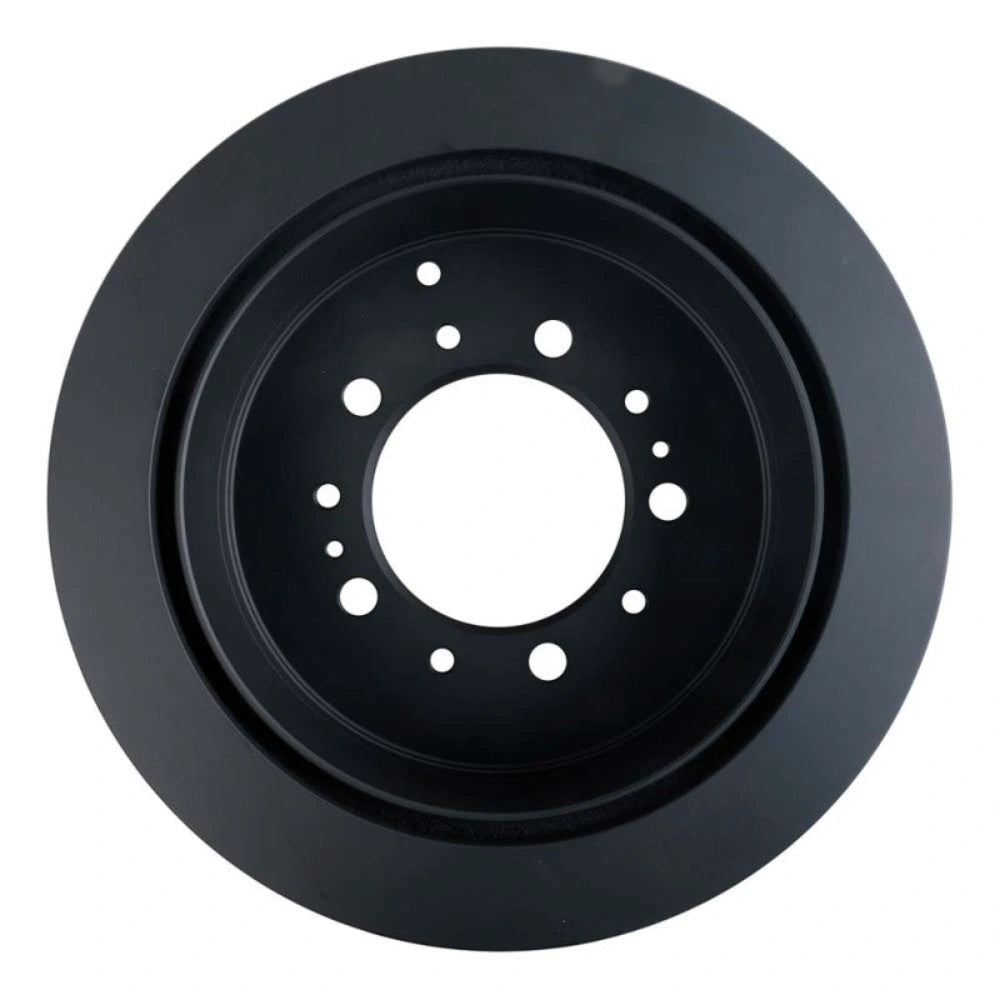

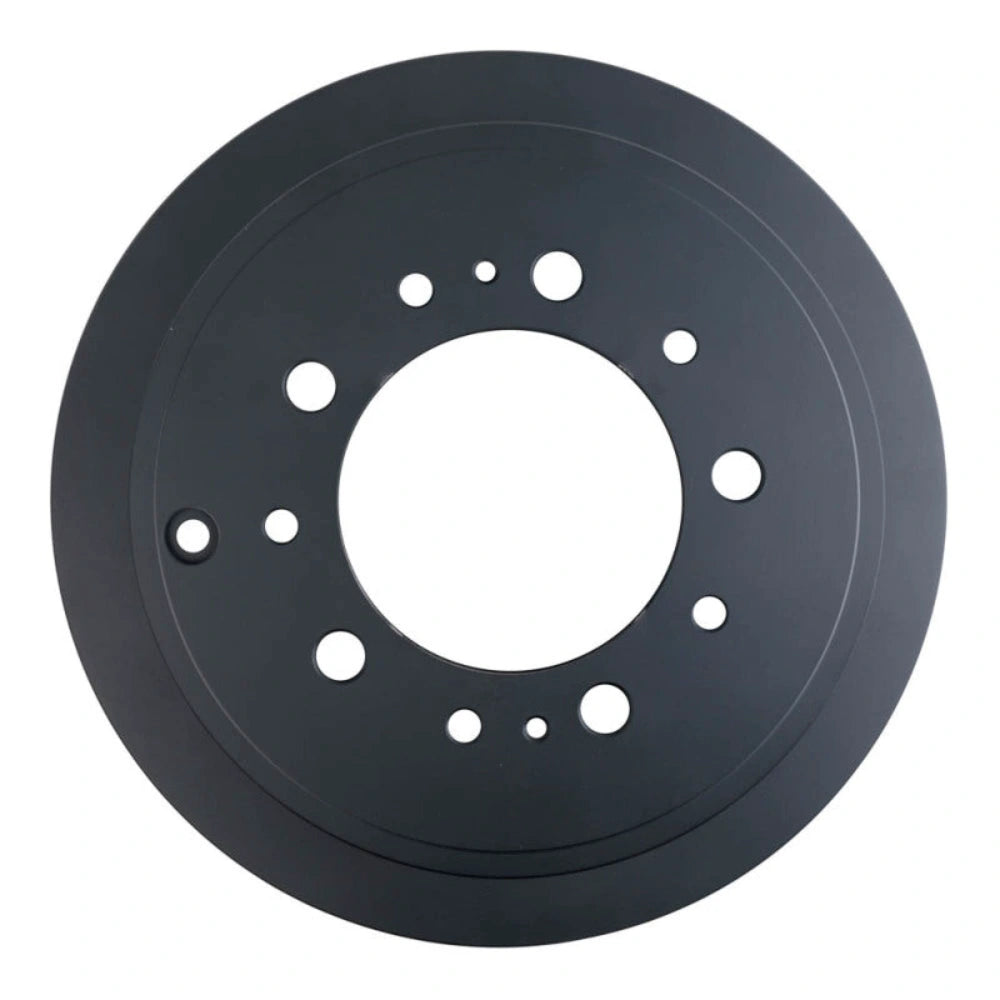

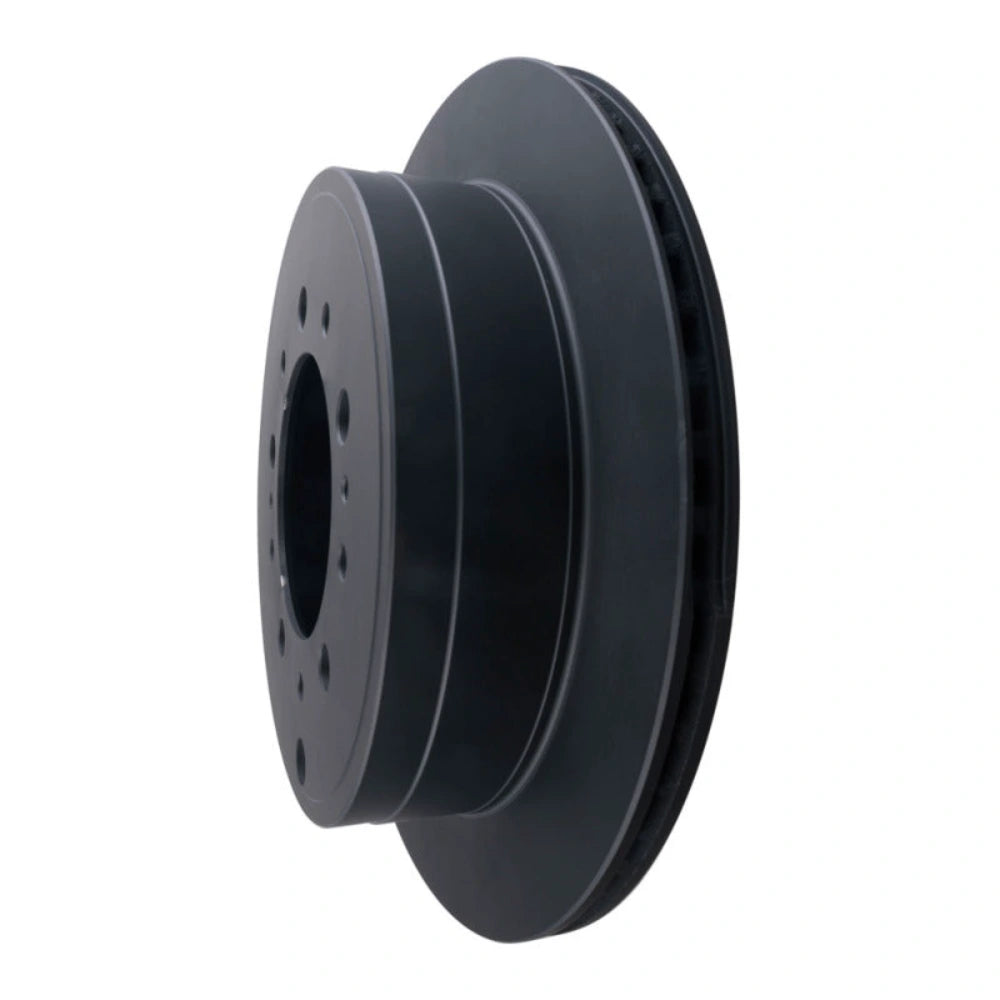

Timbren TIM-R565177 is a rear BES brake rotor with an OnyxBond matte-black coating. It is supplied as one rotor. Match the exact application and equipment requirements in the fitment table before ordering.
Before ordering: match every drive-wheel, trim, rotor diameter, brake-caliper, parking-brake and rear-wheel requirement in the application table. Vehicle model alone does not establish fitment.
Every row applies only to its listed year range, drivetrain, trim or body configuration, and brake equipment. Match rotor diameter, caliper type, parking-brake design, and single or dual rear wheels wherever specified.
| Years | Make | Model | Required configuration |
|---|---|---|---|
| 2007-2021 | Toyota | Tundra | Drive Wheel: 2WD |
| 2007-2021 | Toyota | Tundra | Drive Wheel: 4WD |
| Brand | Timbren |
|---|---|
| Manufacturer part number | TIM-R565177 |
| Axle position | Rear |
| Friction surface | Smooth |
| Construction | Vented, full cast |
| Coating | OnyxBond matte black |
| Package quantity | 1 rotor |
One Timbren BES rotor. Brake pads, calipers, and other brake-kit components are not included with this rotor-only part.
Use the vehicle service procedure and current Timbren instructions for the selected application. Confirm rotor dimensions and brake-package equipment before installation, and follow the applicable bedding procedure.
