SKU: TS-UNI-588

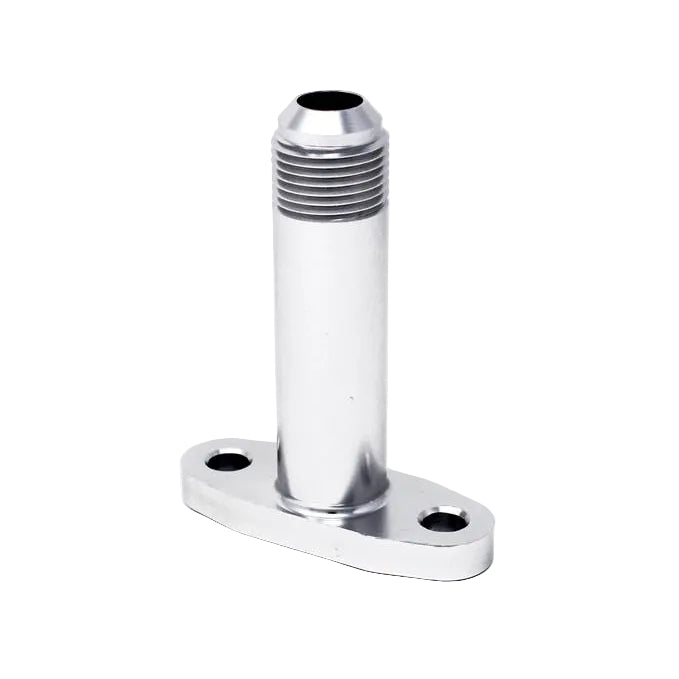

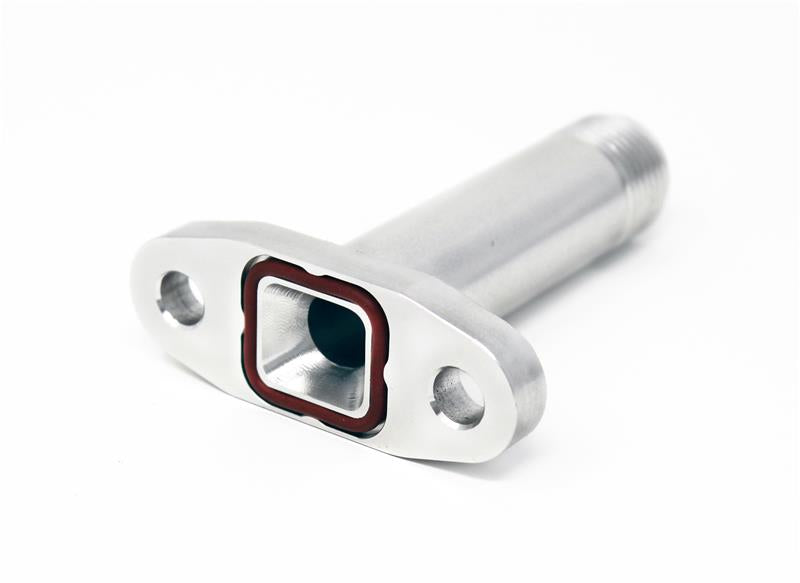

Torque Solution Extended Port Matched Oil Drain Flange -10AN for Universal T3/T4 PTE Turbonetics Turbos
This Torque Solution oil drain flange bolts onto T3/T4 housings from PTE and Turbonetics turbos for universal turbo setups. The extended design clears frame rails and exhaust while the port matched outlet links to -10AN oil lines for steady drainage. It maintains turbo efficiency and cooling during high boost demands.
Key Features
- Extended Reach: Adds 1 inch length to navigate tight chassis and exhaust in swapped or custom turbo applications
- Port Matched Inlet: Machined precisely to factory turbo drain ports for uninterrupted oil flow without ledges or turbulence
- -10AN Male Outlet: Handles high volume oil in powerful builds with standard AN hose and fittings
- 6061-T6 Billet Aluminum: Weighs just 0.2 lbs with strength for repeated heat and pressure exposure
- Black Anodized Finish: Shields against corrosion and wear in harsh engine environments
Product Notes
- Confirm turbo housing drain port matches T3/T4 PTE or Turbonetics specifications before purchase
- Reuse factory o-ring or gasket or source compatible seal for leak free operation
- Packaged in protective foam insert to prevent shipping damage
Installation Notes
- Professional installation recommended.
- Bolts to turbo with four M8 x 1.25 bolts torque to 18-22 ft-lbs
- Compatible with all -10AN female fittings and braided hose assemblies
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | PTE | T3/T4 Turbochargers | All |
| Universal | Turbonetics | T3/T4 Turbochargers | All |
Why Choose Torque Solution?
- Established leader in affordable billet turbo accessories since 2005
- CNC machined in the USA for exact tolerances and consistent quality
- Backed by limited lifetime warranty on manufacturing defects
Frequently Asked Questions
-
Q: Will this flange fit my PTE T4 turbo housing?
A: Yes it ports match PTE T3 and T4 drain flanges exactly for direct bolt on installation -
Q: What material and finish does it use?
A: Machined from 6061-T6 aircraft grade aluminum with durable black anodized coating -
Q: What warranty coverage applies?
A: Limited lifetime warranty covers defects in materials and workmanship under normal use
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: 5 x 5 x 1 inch box with foam protection
- Weight: 0.2 lbs
