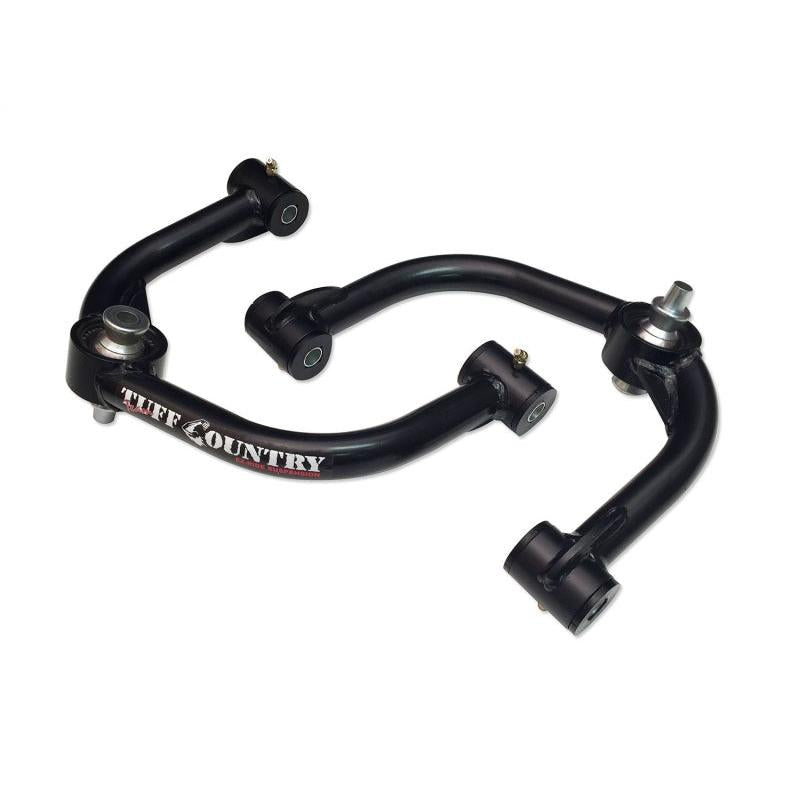

Eliminate Ball Joint Binding With Teflon-Lined Uni-Balls
Standard ball joints can bind on a lifted F-150, limiting suspension travel and causing premature wear. Tuff Country's 20930 upper control arms replace the factory ball joint with a Teflon-lined uni-ball, adding suspension travel and correcting front end geometry on lifted 2004-2021 F-150 trucks.
Key Features
- Teflon-lined uni-ball joint eliminates standard ball joint binding
- Increases suspension articulation over the factory ball joint design
- Corrects front end geometry on lifted vehicles
- Polyurethane bushings included with zerk fittings for lubrication
- Made in the USA, backed by a limited lifetime warranty
- Direct bolt-on installation, no drilling required
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2021 | Ford | F-150 | |
| 2009-2020 | Ford | F-150 | Platinum |
| 2018-2020 | Ford | F-150 | Police Responder |
| 2016-2020 | Ford | F-150 | SSV |
| 2009-2014 | Ford | F-150 | STX |
| 2009-2020 | Ford | F-150 | XL |
| 2009-2020 | Ford | F-150 | XLT |
| 2010-2014 | Ford | F-150 | FX2 |
| 2009-2014 | Ford | F-150 | FX4 |
| 2010-2012 | Ford | F-150 | Harley-Davidson Edition |
| 2009-2020 | Ford | F-150 | King Ranch |
| 2009-2020 | Ford | F-150 | Lariat |
| 2011 | Ford | F-150 | Lariat Limited |
| 2013-2014 | Ford | F-150 | Limited |
| 2016-2020 | Ford | F-150 | Limited |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 20930 |
| Joint type | Teflon-lined uni-ball |
| Bushings | Polyurethane with zerk fittings |
| Position | Front upper |
| Recommended use | With an existing 2 in. to 4 in. front lift |
What's Included
- 2 upper control arms
- Mounting hardware
About Tuff Country
Tuff Country EZ-Ride Suspension has manufactured American-made lift kits, leveling kits, traction bars, and suspension hardware for trucks and SUVs since the 1970s. Tuff Country components are engineered as bolt-on or direct-fit upgrades that work with the factory suspension geometry, and most kits carry a limited lifetime warranty on original components.
FAQ
Do these arms require a lift kit to be installed first?They are intended for use with an existing 2 in. to 4 in. front lift, and the vehicle must retain factory steering knuckles.
Are these arms greasable?Yes, the polyurethane bushings include zerk fittings for lubrication.
Do these arms fit 2WD F-150 trucks?Yes, this part number covers both 4x4 and 2wd F-150 applications.
What is the benefit of a uni-ball over a standard ball joint?The uni-ball eliminates the binding that a standard ball joint can experience at extended lift angles, increasing usable articulation.
Is drilling required to install these arms?No, they are a direct bolt-on replacement for the factory upper control arms.
Does this arm work with the factory F-150 knuckle?Yes, it is designed to retain the factory steering knuckle.
What wheel backspacing is needed with these arms?Aftermarket wheels with 5 in. backspacing or less are typically required for clearance.
Are replacement bushings available if these wear out?Yes, Tuff Country offers a replacement bushing and sleeve kit, part number 91121, for this control arm family.
Installation Instructions
- Support the vehicle and remove the front wheels.
- Disconnect the factory upper control arm from the frame and steering knuckle.
- Remove the factory upper control arm and set it aside.
- Install the new Tuff Country uni-ball upper control arm using the factory mounting hardware.
- Torque all hardware to the vehicle manufacturer specification and grease the new bushings.
- Reinstall the wheels and have the front end alignment checked.
