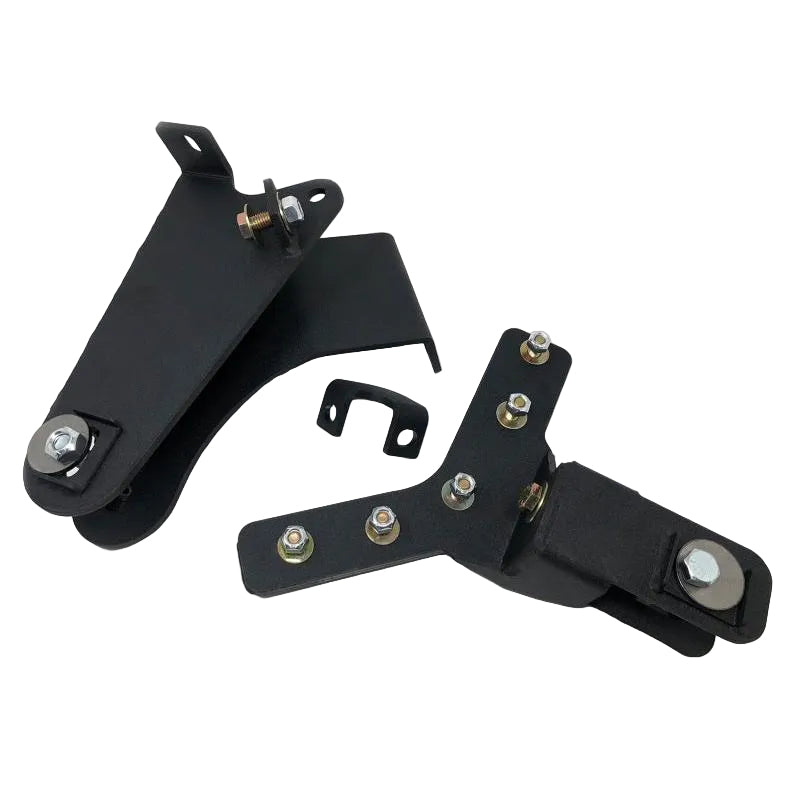

Tuff Country 83-97 Ford Ranger 4wd (with 4in Front Lift Kit) Axle Pivot Drop Brackets Pair

Tuff Country
TUF20816
698815208164
Suspension Arms & Components
1 Units In Stock - Ships Next Business Day
$ 360.86
$ 360.86

SKU: 20816 | UPC: 698815208164

Tuff Country 83-97 Ford Ranger 4wd (with 4in Front Lift Kit) Axle Pivot Drop Brackets Pair

These Tuff Country axle pivot drop brackets restore proper front axle geometry on 1983-1997 Ford Ranger 4WD models after installing a 4-inch front lift kit. They fix caster and pinion angle issues caused by lifts without dropping the factory axles improving handling stability and tire wear. Compatible with select 1991-1997 Ford Explorer 4WD vehicles as well.

Key Features

  • Front Axle Geometry Correction: Drops the axle pivot points by 4 inches to match lifted suspension setup preventing excessive wear on ball joints and tires
  • Includes Adjustable Camber Bolts: Four eccentric bolts allow precise caster and camber adjustments for perfect alignment after installation
  • 1/4-Inch Thick Steel Construction: Laser-cut and fully welded steel plates provide strength for off-road demands and daily driving
  • Black Powder Coat Finish: Resists rust and corrosion for long-term durability in harsh conditions
  • Bolt-On Design: Direct fit installation with no drilling cutting or welding required using factory mounting locations

Product Notes

  • Requires an existing 4-inch front suspension lift kit on the vehicle
  • Corrects alignment problems from lifts installed without axle drop components
  • Sold as a pair for left and right side installation

Installation Notes

  • Professional installation recommended.
  • Vehicle must have 4-inch front lift prior to bracket installation.
  • Bolts directly to factory frame and axle pivot locations includes all necessary hardware.

This Part Fits

Year Make Model Submodel
1983-1997 Ford Ranger 4WD XL XLT STX Sport Splash Custom S Base XLS XL Sport
1983-1986 Ford Ranger 4WD XL
1983-1985 Ford Ranger 4WD XLS
1983-1997 Ford Ranger 4WD XLT
1985-1986 Ford Ranger 4WD Base
1986-1997 Ford Ranger 4WD STX
1986-1989 Ford Ranger 4WD S
1987-1992 Ford Ranger 4WD Custom
1991-1993 Ford Ranger 4WD Sport
1993-1997 Ford Ranger 4WD XL
1994-1997 Ford Ranger 4WD Splash
1995 Ford Ranger 4WD XL Sport
1997 Ford Ranger 4WD Sport
1991-1997 Ford Explorer 4WD Eddie Bauer Limited Sport XL XLT
1995 Ford Explorer 4WD Expedition

Why Choose Tuff Country?

  • Over 35 years engineering suspension components for trucks and SUVs
  • Heavy-duty materials built to withstand real-world abuse
  • Precise fitment tested on actual vehicles for reliable performance

Frequently Asked Questions

  • Q: Does this fit 1990 Ford Ranger 4WD with 4-inch lift?
    A: Yes fits all 1983-1997 Ford Ranger 4WD models equipped with 4-inch front lift kits including XL XLT STX and other trims
  • Q: What material and finish do the brackets have?
    A: Constructed from 1/4-inch thick laser-cut steel plates fully welded with durable black powder coat finish for rust protection
  • Q: What warranty is provided?
    A: Covered by Tuff Country limited lifetime warranty against manufacturing defects when installed correctly

Shipping & Handling

  • Method: Ground shipping via UPS or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Secure single box 12in x 8in x 6in
  • Weight: 15 lbs shipping weight
