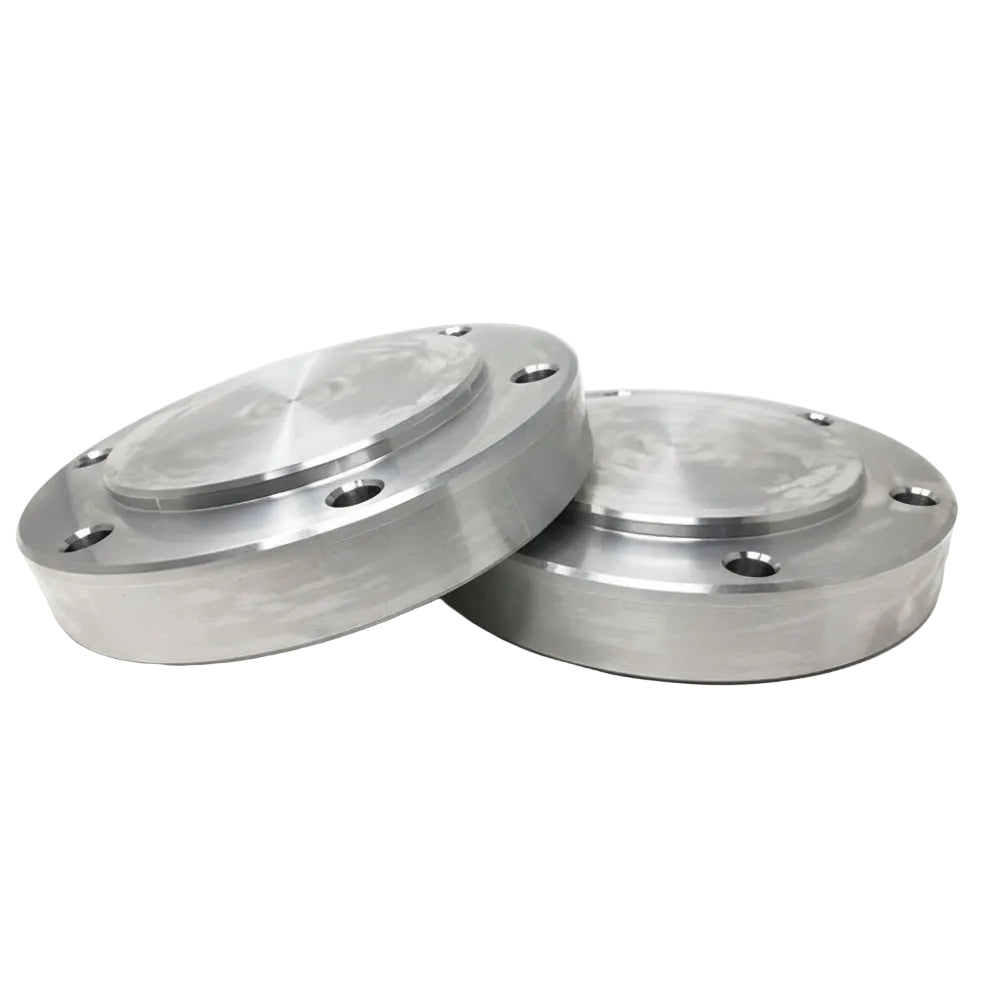

Tuff Country CV axle spacer pair, side profile showing spacer thickness

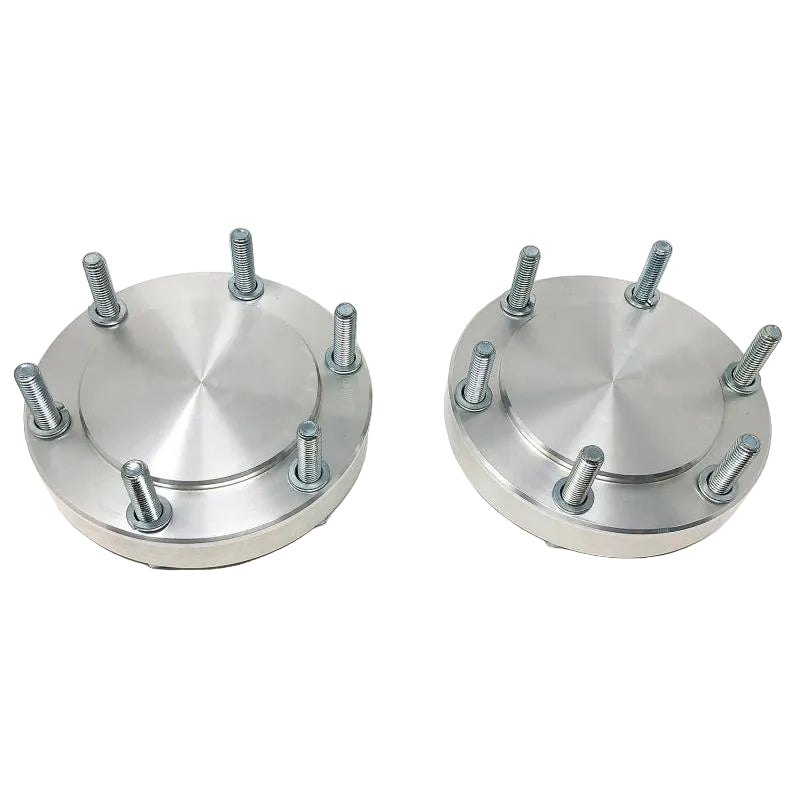

Tuff Country CV axle spacer pair with wheel studs installed, front view

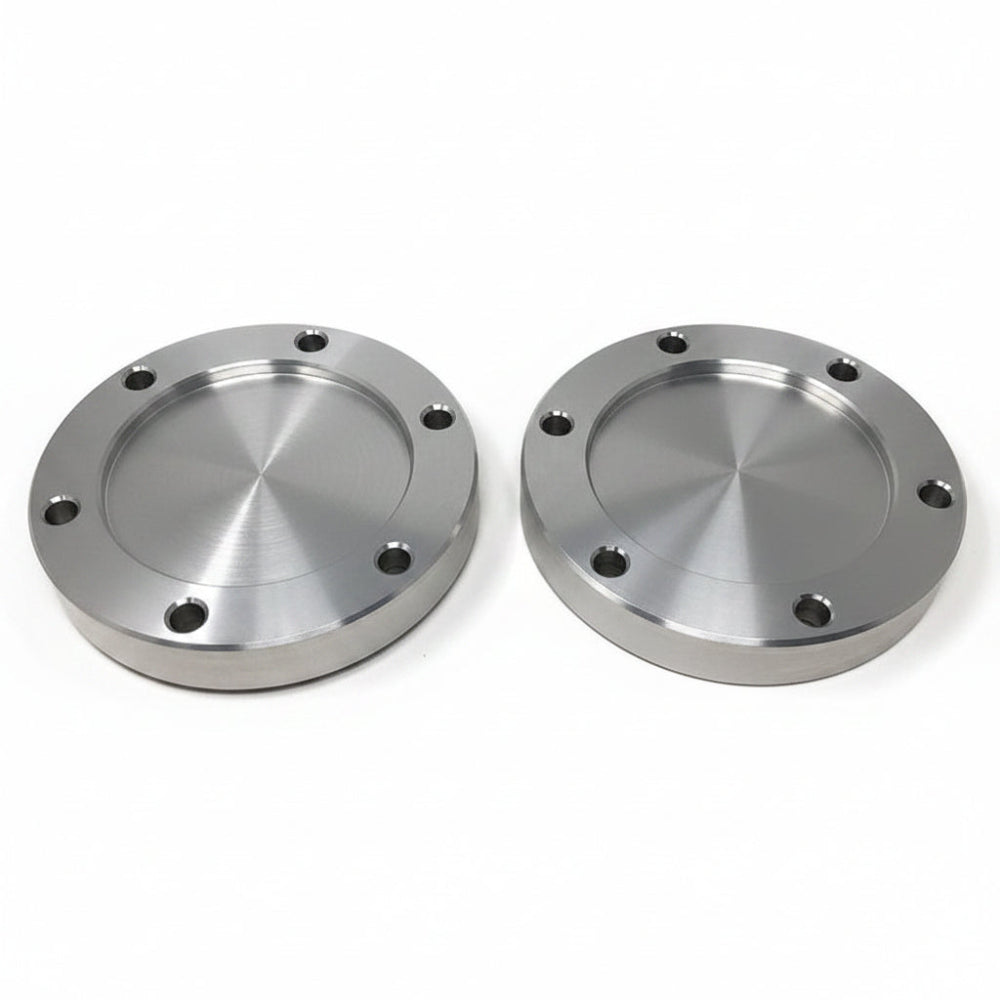

Tuff Country CV axle spacer pair, front view showing lug holes and center bore
Click to zoom in

Tuff Country 88-98 Chevy Truck K1500/K2500 (6 lug) 4wd 1in Replacement CV Axle Spacer Kit

Tuff Country
TUF10805
698815108051
Axles
1 Units In Stock - Ships Next Business Day
$ 128.00
$ 128.00

Restore CV Axle Angle After a Lift on 6 Lug K1500/K2500 Trucks

Lifting a solid front axle 4WD truck changes the angle between the CV axle and the front differential. Tuff Country's 10805 is a 1 in. axle spacer kit that relocates the CV axle outward to correct that angle on lifted 6 lug K1500 and K2500 trucks, reducing binding and vibration.

Key Features

  • 1 in. axle spacer relocates the CV axle for correct lift geometry
  • Designed specifically for 6 lug K1500/K2500 front differentials
  • Reduces CV joint binding and vibration after a lift
  • Bolts between the front differential and CV axle
  • Includes hardware for both sides

Fitment

Year Make Model Submodel
1988-1993 GMC C2500 Sierra
1994-1998 GMC C2500 Sierra SL
1988-1998 GMC C2500 Sierra SLE
1994-1998 GMC C2500 Sierra SLT
1988-1993 GMC C2500 Sierra SLX
1988-1993 GMC K1500 Sierra
1994-1999 GMC K1500 Sierra SL
1988-1999 GMC K1500 Sierra SLE
1988-1998 Chevrolet K1500
1988-1998 Chevrolet K1500 Cheyenne
1999 Chevrolet K1500 LS
1988-1992 Chevrolet K1500 Scottsdale
1988-1998 Chevrolet K1500 Silverado
1991 Chevrolet K1500 Sport
1990-1998 Chevrolet K1500 WT
1994-1997 Chevrolet K2500 Base
1988-1998 Chevrolet K2500
1988-1998 Chevrolet K2500 Cheyenne
1988-1992 Chevrolet K2500 Scottsdale
1988-1998 Chevrolet K2500 Silverado
1994-1995 Chevrolet K2500 WT
1998 Chevrolet K2500 WT
1988 Chevrolet R20 Cheyenne
1988 Chevrolet R20 Custom Deluxe
1988-1998 GMC K1500
1988-1998 GMC K2500
1988 Chevrolet R20 Scottsdale
1988 Chevrolet R20 Silverado
1989 Chevrolet R2500 Cheyenne
1989 Chevrolet R2500 Scottsdale
1989 Chevrolet R2500 Silverado
1999-2005 Chevrolet Silverado 1500 Base
2004-2006 Chevrolet Silverado 1500 Hybrid
1994-1997 Chevrolet C2500 Base
1988-1998 Chevrolet C2500 Cheyenne
1988-1992 Chevrolet C2500 Scottsdale
1988-1998 Chevrolet C2500 Silverado
1994-1995 Chevrolet C2500 WT
1998 Chevrolet C2500 WT
1994-1997 Chevrolet K1500 Base
1994-1998 GMC K2500 Sierra SLT
1988-1993 GMC K2500 Sierra SLX
1988-1989 GMC R2500 Base
1988-1989 GMC R2500 High Sierra
1988-1989 GMC R2500 Sierra Classic
2002-2005 GMC Sierra 1500 Base
2001 GMC Sierra 1500 C3
2002-2006 GMC Sierra 1500 Denali
1995 GMC K1500 Sierra SLS
1994-1999 GMC K1500 Sierra SLT
1988-1993 GMC K1500 Sierra SLX
1994-1998 GMC K1500 Sierra Special
1993 GMC K1500 Sierra Sport
1988-1993 GMC K2500 Sierra
1994-1998 GMC K2500 Sierra SL
1988-1998 GMC K2500 Sierra SLE
1999-2006 Chevrolet Silverado 1500 LS
1999-2006 Chevrolet Silverado 1500 LT
2003-2006 Chevrolet Silverado 1500 SS
2002-2004 Chevrolet Silverado 1500 WT
2006 Chevrolet Silverado 1500 WT
2004 Chevrolet Silverado 1500 Z71 Off-Road
2002 GMC Sierra 1500 HT
2005-2006 GMC Sierra 1500 Hybrid
1999-2003 GMC Sierra 1500 SL
2006 GMC Sierra 1500 SL
1999-2006 GMC Sierra 1500 SLE
1999-2006 GMC Sierra 1500 SLT
2002-2006 GMC Sierra 1500 WT

Specifications

Detail Value
Manufacturer part number 10805
Spacer thickness 1 in.
Quantity Pair, one per side
Application 6 lug K1500/K2500 front differential

What's Included

  • 2 CV axle spacers
  • Mounting hardware

About Tuff Country

Tuff Country EZ-Ride Suspension has manufactured American-made lift kits, leveling kits, traction bars, and suspension hardware for trucks and SUVs since the 1970s. Tuff Country components are engineered as bolt-on or direct-fit upgrades that work with the factory suspension geometry, and most kits carry a limited lifetime warranty on original components.

FAQ

Why is an axle spacer needed after a lift?

Lifting the front axle changes the angle between the CV axle and differential, and the spacer corrects that geometry to reduce binding.

What lug pattern does this kit fit?

It is designed for 6 lug K1500 and K2500 front differentials.

How thick is this spacer?

1 in., relocating the CV axle outward by that amount.

Does this kit include hardware?

Yes, mounting hardware for both sides is included.

Will this fit an 8 lug K2500/K3500?

No, this part number is specific to the 6 lug differential, an 8 lug version is a separate part number.

Is this a wear item or a one-time install?

It is a one-time geometry correction installed with a lift kit, not a routine wear item.

Can this spacer be installed without removing the CV axle?

No, the CV axle must be removed to install the spacer between it and the differential.

Does this kit work with any lift height?

It is intended to correct geometry for typical lift heights used with Tuff Country kits on this platform, consult the instruction sheet for exact compatibility.

Installation Instructions

  1. Support the vehicle and remove the front wheels.
  2. Scribe a reference mark on the CV axle plate and the differential for reinstallation alignment.
  3. Remove the CV axle from the front differential.
  4. Install the new axle spacer between the differential and the CV axle using the supplied hardware.
  5. Reinstall the CV axle to the scribed location and torque all hardware to specification.

Prop 65 Warning

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
