High Durometer Polyurethane Rear End Housing Bushings for 1965-1988 GM A-Body and G-Body Cars, Red
The red version of UMI's rear end housing bushing set. It replaces the two rubber upper control arm bushings that sit in the axle housing ears with high durometer polyurethane, and supplies two polyurethane thrust washers to keep them from walking side to side. On an A-body or G-body rear suspension, these are usually the last soft mount left after the control arms have been upgraded.
Key Features
- Replaces the pair of upper control arm bushings pressed into the rear end housing ears.
- High durometer polyurethane construction for firmer axle location than factory rubber.
- Two polyurethane thrust washers included to prevent side to side movement.
- Stepped inner steel sleeve controls how far the bushing travels into the housing.
- Red finish, matching the -R suffix in UMI's part numbering.
- Set covers both sides of one axle.
- Made in the USA by UMI Performance.
Fitment
| Vehicle | Application |
|---|---|
| GM A-Body, 1965-1977 | Buick Century 1973-1977, Gran Sport 1965-1967, GS 1970-1972, GS350 1968-1969, GS400 1968-1969, GS455 1970-1972, Regal 1973-1977, Skylark 1965-1972, Special 1965-1969, Sportwagon 1965-1972 |
| GM A-Body, Chevrolet | Chevelle 1965-1977, El Camino 1965-1977, Laguna 1973-1976, Malibu 1965-1967 and 1973-1977, Monte Carlo 1970-1977 |
| GM A-Body, Oldsmobile and Pontiac | Oldsmobile 442 1965-1971, Cutlass 1965-1977, F85 1965-1977, Vista Cruiser 1965-1972; Pontiac Grand Am 1973-1977, Grand Prix 1969-1972, GTO 1965-1977, Tempest 1965-1970, LeMans 1965-1977; GMC Sprint 1971-1972 |
| GM G-Body, 1978-1988 | Buick Regal 1978-1987; Chevrolet El Camino 1978-1987, Malibu 1978-1983, Monte Carlo 1978-1988; GMC Caballero 1978-1987; Oldsmobile Cutlass 1978-1988; Pontiac Bonneville 1982-1986, Grand Prix 1978-1987 |
This listing publishes 1965-1988 because that is what UMI's product page, the header of its installation sheet and the product label on the back of that sheet all state. Dealer titles say 65-87 and the previous store title repeated it, so the range has been corrected.
Axle variation, in UMI's words: due to the amount of vehicles this item fits and the number of rear ends available by GM your install may be slightly different and may not require all supplied hardware. UMI adds that some vehicles may not require a thrust washer, that it is ok to run any vehicle without this washer and will cause no problems, and that some 12-bolt models may require trimming of thrust washer.
UMI lists this part as not a direct bolt-on, because the original bushings must be pressed, drilled or burned out of the housing ears before the new ones go in.
Specifications
| Detail | Value |
|---|---|
| Manufacturer | UMI Performance |
| Manufacturer part number | 3000-R |
| Base part number | 3000 |
| Part type | Rear end housing upper control arm bushings |
| Position | Rear, upper, in the axle housing ears |
| Material | High durometer polyurethane |
| Colour | Red |
| Thrust washers | Two polyurethane thrust washers included |
| Sold as | Set for one axle |
| Direct bolt-on | No, per UMI |
| Durometer number | Not published; UMI states high durometer only |
| Bushing dimensions | Not published by UMI |
| Published torque | None published for this part |
| Lubrication | UMI's sheet calls for a thick amount of grease on all sides of the bushing at installation |
| Country of manufacture | United States, built by UMI Performance in Philipsburg, Pennsylvania |
| Manufacturer warranty | UMI's published policy is a two year limited warranty from the original date of purchase to the original purchaser, covering defects in materials and workmanship, excluding normal wear on items such as bearings and bushings, misuse, improper installation, alteration and exceeding the design limits of the part |
| In-box warranty text | The printed installation sheet carries a narrower disclaimer that states ALL PARTS ARE WARRANTED TO BE FREE OF DEFECT AT THE TIME OF PURCHASE, disclaims other express and implied warranties, and limits remedy to replacement of parts. It is not the same document as the two year policy and neither text is a Black Ops Auto Works promise |
What's Included

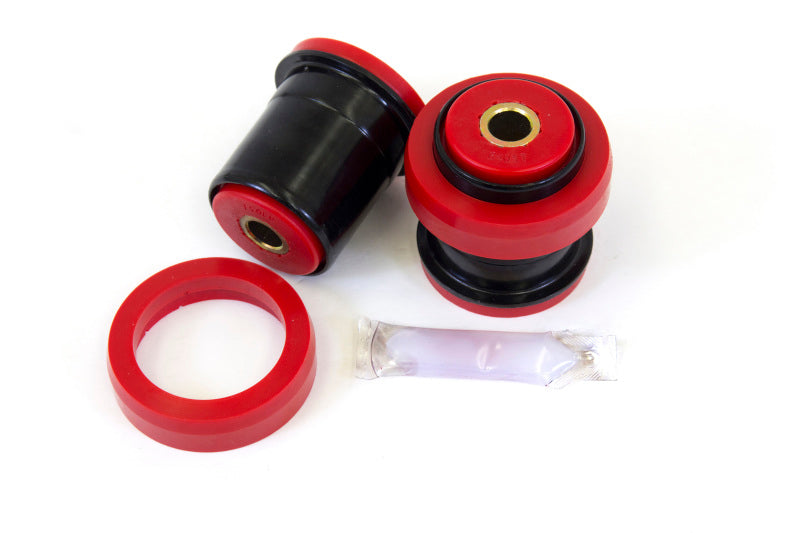

- Two high durometer polyurethane rear end housing bushings with inner steel sleeves
- Two polyurethane thrust washers
- One UMI installation sheet
About UMI Performance
UMI Performance designs and manufactures chassis and suspension parts at 509 Hemlock Street in Philipsburg, Pennsylvania, using North American raw material, in-house laser cutting, CNC bending and fixture welding. UMI's A-body and G-body rear suspension range covers control arms, bushings and axle location parts, and the 3000 set is the housing side half of that upper control arm joint.
Related Parts
FAQ
Why does this listing say 1965-1988 when other shops say 65-87?Because every UMI authored source says 1988. The product page, the installation sheet header and the product label on the back of the sheet all use 1965-1988, while the 87 end year appears only in dealer titles. The store title has been corrected to match UMI.

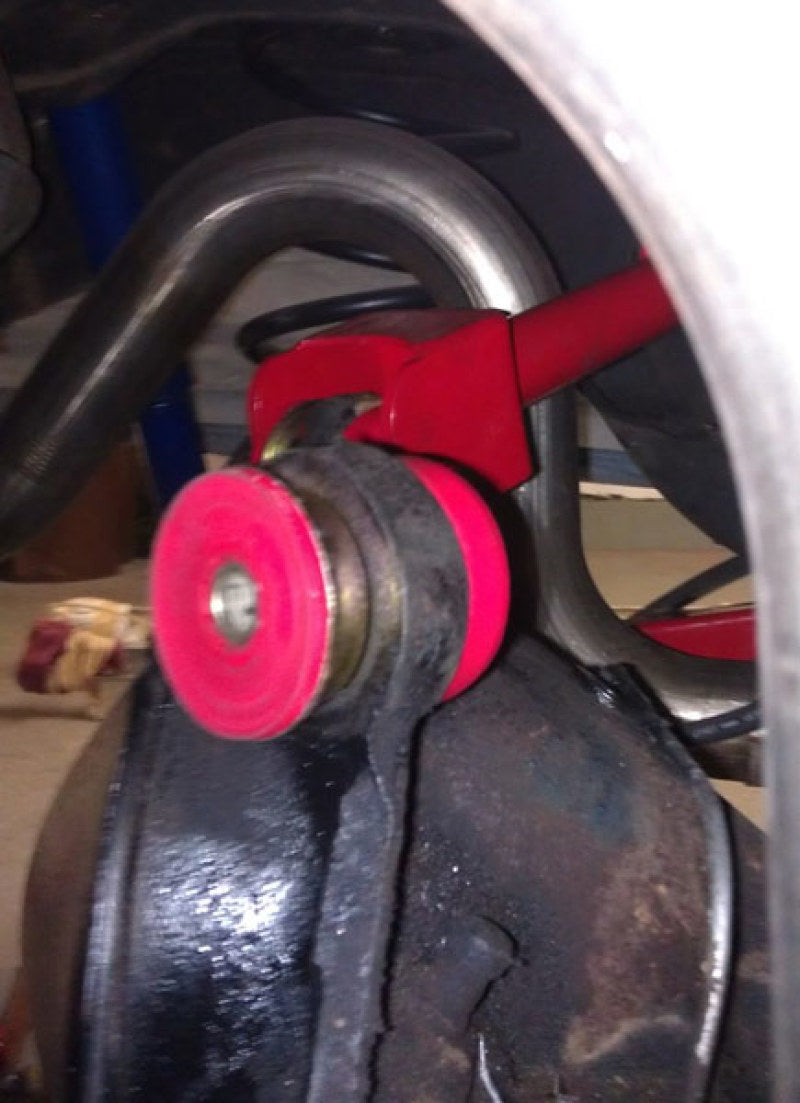

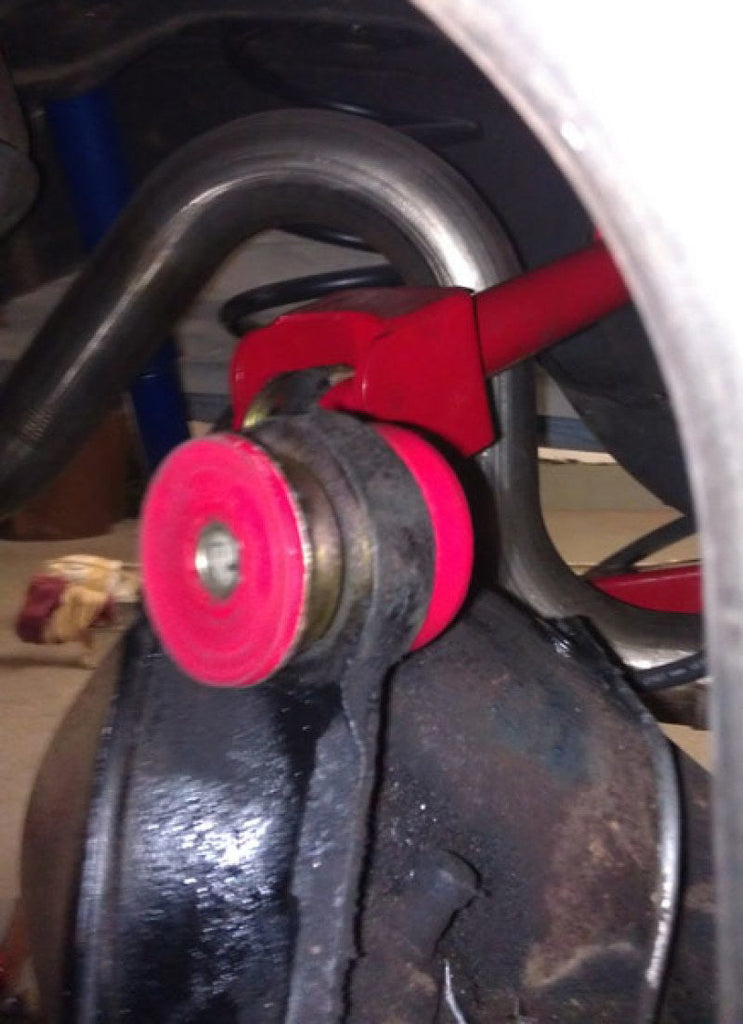

Where do these bushings actually sit?In the ears of the rear end housing, where the upper control arms bolt on. They are the bushings that stay with the axle when the arms are removed, not the bushings inside the arms.
Is the red version any harder than the black one?No published difference. UMI publishes the same high durometer polyurethane description for both, and the suffix denotes colour. Choose on appearance.
What comes in the box?Two polyurethane bushings and two polyurethane thrust washers, plus the UMI installation sheet. UMI's page calls them washers and the sheet calls them thrust washers, which are the same items.
Do I need the thrust washers on my car?Maybe not. UMI states that your vehicle may or may not use these depending on rear end or year, that some vehicles may not require a thrust washer, and that it is ok to run any vehicle without this washer and will cause no problems. Some 12-bolt models may require trimming of thrust washer. If one is used, it slides on the forward face of the bushing before the arm goes back on.
How hard is the removal job?It is the real work in this installation. UMI's sheet allows a control arm bushing removal tool, drilling numerous holes through the OEM rubber and punching out the sleeve, or burning the rubber out with a torch and punching out the sleeve. For the torch method UMI says to use extreme caution with flame and keep away from gas lines.
Do they need grease?Yes at installation. UMI's sheet says to apply a thick amount of grease on all sides of the bushing to prevent squeaking and prolong bushing life. UMI publishes no zerk fitting or grease groove for this part, so it is not a serviceable greasable bushing.
What torque do the upper control arm bolts take?UMI publishes none for this part number, so this listing does not print one. Use the applicable General Motors factory service information for your model year, and tighten with the suspension at ride height.
Should I expect a harsher ride?Polyurethane transmits more than rubber, which is the point of the change, and UMI's warranty text separately excludes normal wear on bushings. UMI publishes no ride quality or noise measurement, so treat comfort claims either way as unpublished.
Which UMI warranty applies, the two year policy or the text printed on the instruction sheet?They are two different documents. UMI's policies page publishes a two year limited warranty to the original purchaser against defects in materials and workmanship, with exclusions for normal wear on bushings and bearings, improper installation, alteration and exceeding the design limits of the part. The disclaimer printed on UMI's installation sheets is narrower and says parts are warranted to be free of defect at the time of purchase, with remedy limited to replacement. Read the policies page as the customer facing warranty and the sheet as the in-box legal notice. Neither one is a Black Ops Auto Works warranty.
Installation Instructions
- Support the rear of the car safely and unbolt the upper control arms from the rear end housing ears.
- Remove the stock bushings with a control arm bushing removal tool, or drill numerous holes through the OEM rubber to remove as much rubber as possible and then punch out the steel sleeve inside the housing ear.
- UMI also allows burning the rubber out with a torch before punching out the sleeve, with the instruction to use extreme caution with flame and keep away from gas lines. Repeat on both sides.
- Clean the housing ear before the new bushing goes in.
- Install each bushing from the outside in, rearward to forward, tapping it home with a small piece of wood and a hammer until the step in the sleeve limits travel.
- If your axle uses one, slide a thrust washer onto the forward face of the bushing before refitting the upper control arm, trimming it if a 12-bolt housing requires it.
- Apply a thick amount of grease on all sides of the bushing to prevent squeaking and prolong bushing life.
- Refit the upper control arms and tighten at ride height using the applicable General Motors factory service information for torque, since UMI publishes none for this part.
The steps above follow UMI's own installation sheet for part 3000. The sheet also carries UMI's in-box disclaimer, which states that all parts are warranted to be free of defect at the time of purchase, disclaims other express and implied warranties, and limits remedy to replacement of parts.
