UMI Performance 70-81 F-Body 2.5in / 78-88 G-Body 1in Front Lowering Springs

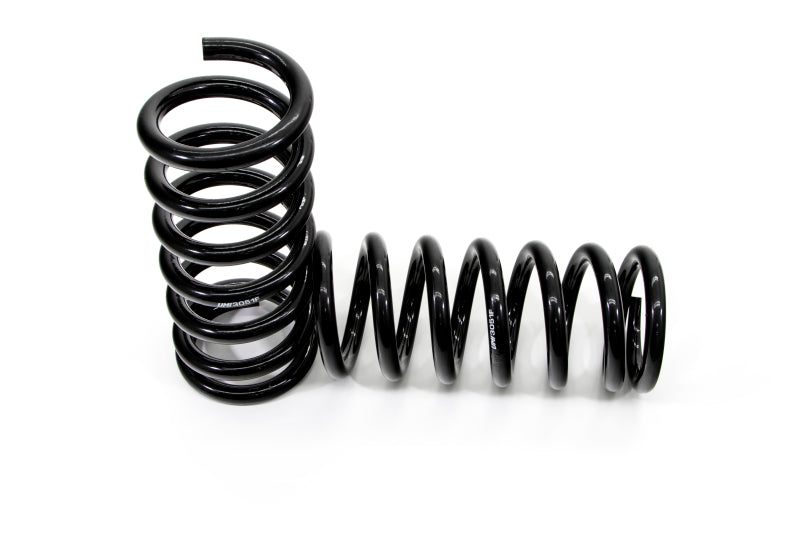

Front Lowering Springs Giving 2.5 Inches on the 1970-1981 F-Body and 1 Inch on the 1978-1988 G-Body

This is one physical front spring with two published outcomes, and UMI publishes them as a two row application table rather than as a single drop figure. On a 1970-1981 Camaro or Firebird the same spring gives a 2.5 inch drop. On a 1978-1988 G-Body it gives a 1 inch drop. The difference comes from the two platforms' corner weights and spring pockets, not from two different part numbers, so the platform you are fitting decides the result before anything else does.

Underneath that, the engineering is a linear 600 lb/in rate in 5160 chrome silicon premium wire, finished in black powder coat and developed with a leading Sprint Cup chassis engineer. A linear rate is the point: the spring resists the same way at the start of a corner as it does mid-corner, which makes the car predictable in a way a heat-cut factory coil or a progressive spring is not.

Key Features

• Dual application: 2.5 inch drop on 1970-1981 GM F-Body, 1 inch drop on 1978-1988 GM G-Body.
• Linear 600 lb/in rate for predictable, repeatable roll resistance.
• 5160 chrome silicon premium spring wire, which holds its rate rather than sagging like a cut coil.
• Black powder coat finish.
• Front axle pair, designed with a leading Sprint Cup chassis engineer.
• Stiffer than stock for reduced body roll and a lower centre of gravity.
• Made in the USA by UMI.

Fitment

UMI publishes both platform lists on the 3050F page, so the ten vehicles above are manufacturer-confirmed rather than inferred.

Expected drop by application, exactly as UMI's own application table states it: 1970-1981 GM F-Body 2.5 inch lowering, 1978-1988 GM G-Body 1 inch lowering. Never read the 2.5 inch figure as the G-Body result or the reverse.

Published qualifications on the drop: lightened cars may require spring trimming, and a V6 Turbo Grand National may require spring trimming because of its lower engine weight. UMI also states in its spring tips sheet that ride height is approximate and cannot be guaranteed because of the weight of the car, engine and accessories.

A retailer publishes the G-Body half of UMI's own description, which states the 1 inch drop applies to standard small block as well as LS power and that the spring also suits full weight Big Block cars where a quarter inch nose down rake is wanted. That wording is retailer-hosted rather than shown on UMI's current page, so it is attributed here rather than presented as manufacturer copy.

UMI publishes year, make and model only for this part number, with no submodel, trim, engine or drivetrain breakdown, so the fitment tags on this listing stop at model rather than inventing a trim.

Specifications

What's Included

• One pair of front lowering springs.

Front springs only. UMI publishes no piece count list and no box contents table for this part number, and no hardware, isolators, bump stops or shocks are documented as being supplied, so nothing beyond the pair of front springs is claimed here.

Rear springs are a separate purchase. On a G-Body, UMI's matching 1 inch rear spring is part number 4050R.

About UMI Performance

UMI Performance builds chassis and suspension parts at 509 Hemlock Street in Philipsburg, Pennsylvania, from North American raw material supplied by leading USA steel suppliers, with machine-guided precision bent DOM tubing, precision laser cut components, Tiger Dry Lac powder coat and welds laid by skilled and robotic welders. UMI's coil springs are wound from chrome silicon wire rather than cut from a factory coil, and the company publishes both a part-specific front spring sheet and a general spring tips sheet covering this part number.

Related Parts

• UMI 4050R rear 1 inch lowering springs, the matching rear half of the 1 inch G-Body drop

FAQ

It depends entirely on which platform you are fitting. UMI's application table gives 2.5 inches of lowering on a 1970-1981 GM F-Body and 1 inch of lowering on a 1978-1988 GM G-Body from this same spring. Read your own car's row and ignore the other one. On top of that, UMI qualifies the figure: lightened cars may need trimming, a V6 Turbo Grand National may need trimming because it carries less engine weight, and UMI states in writing that ride height is approximate and cannot be guaranteed.

Because drop is the result of the rate acting against the weight the corner carries and the geometry of the pocket it sits in. An early F-Body and a G-Body do not have the same front corner weight or the same spring seat, so the same 600 lb/in spring compresses to a different installed height in each. UMI treats this as a labelling and application question rather than releasing two part numbers.

Firmer and, more importantly, consistent. Every inch of compression takes the same additional 600 pounds, so the car behaves the same way at the start of a corner as it does when it is loaded up. A progressive spring changes its rate as it compresses, which feels softer over small bumps but makes the balance move around under load. Expect a noticeably tauter ride than a tired factory coil, and expect the front to stop diving as much under braking.

Front only. This part number is a pair of front springs, and no rear spring, hardware or isolator is documented as being in the box. On a G-Body the matching rear spring for the 1 inch drop is UMI's 4050R.

Flat end up, open coil end down into the lower A-arm. On UMI control arms the open end is clocked against the ramp in the arm; on stock GM arms it goes between the weep holes. UMI adds one more instruction that saves a lot of second-guessing: disregard the orientation of the UMI sticker, since it is applied for identification and carries no installation meaning.

UMI's own troubleshooting list for its front springs: confirm the upper spring bucket is clean, confirm the spring is fully seated, and confirm the frame fingers are inside the spring rather than outside it. UMI's tech tip for the last case is to bend the perch fingers inward with a crowbar. UMI also states outright that ride height is approximate and cannot be guaranteed because of the weight of the car, the engine and the accessories, so a small deviation from the nominal figure is expected rather than a fault.

UMI sanctions trimming. Its spring tips sheet states that trimming is permissible and sometimes required, and that front springs can be trimmed a quarter coil at a time using a slicing wheel. That is a genuine tuning step rather than a bodge. The trade-off has to be said plainly: UMI's warranty excludes any product that has been altered, adjusted or tampered with, and the returns policy only accepts new, unopened product in sealed packaging within 30 days, so a trimmed spring is neither returnable nor a realistic warranty claim. Fit the springs first, measure the car, and only trim once you know how far off target you are.

The two ends of the weight range behave differently. UMI publishes a fitment note that a V6 Turbo Grand National may require spring trimming because of its lower engine weight, which is to say a light nose will not compress the spring as far and the car will sit higher than the nominal figure. At the heavy end, the retailer-hosted version of UMI's G-Body description says the spring also suits full weight Big Block cars where roughly a quarter inch nose down rake is wanted. Treat the second statement as supplier-attributed rather than as current manufacturer copy.

Both numbers come from UMI. The product page for this part number states a linear 600 lb/in front rate, and UMI's platform level G-Body spring height and lowering guides state 530 lb/in. The 600 figure is published on this listing because the part number page is the document UMI maintains per SKU, while the same 530 wording also appears verbatim on UMI's A-Body guide, which suggests reused platform copy rather than a measurement of this spring. The rear figure of 130 lb/in agrees across all of those pages. If the exact rate matters for a shock or bar calculation, confirm it with UMI before you commit to a valving choice.

Yes, a proper spring compressor is mandatory. A loaded coil in a GM short-and-long arm front suspension stores enough energy to be lethal if it is released uncontrolled. On torque, UMI publishes no ft-lb figure for these springs in any of its documents, so none is printed here. Use the factory service specification for your year and model on the lower control arm, shock and spindle fasteners, and tighten suspension pivots with the car at ride height.

UMI publishes no shock requirement for this part number, so this is judgement rather than a manufacturer instruction. A worn factory shock that was already struggling with the stock spring will be worse with a shorter, stiffer one, and on a 2.5 inch F-Body drop the shock spends its life in a different part of its travel. If the shocks are old, doing them in the same session saves pulling the front apart twice.

Changing ride height changes camber and toe on a short-and-long arm front suspension, so an alignment afterwards is the sensible course, particularly on the 2.5 inch F-Body application. UMI does not publish alignment specifications for this part number, so use the settings appropriate to your car and its intended use.

UMI publishes a two year warranty from the original date of purchase against defects in materials and workmanship, to the original purchaser only, and it is not transferable. The same policy excludes misuse, use beyond the design limits of the part, improper installation, acts of God, shipping damage, any product that has been altered, adjusted or tampered with, components not made by UMI, incidental costs such as towing and labour, and normal wear items including bearings and bushings. UMI also states it cannot guarantee compatibility with other manufacturers' components. The printed sheet in the box still carries an older disclaimer that predates the current two year term, and the live policy page is the document that governs. Neither is a Black Ops Auto Works warranty.

Installation Instructions

1. Support the car safely on stands and remove the front wheels.
2. Fit a proper spring compressor to the factory coil and remove the old spring following the factory service procedure for your year and model.
3. Clean the upper spring bucket completely before the new spring goes in. Debris in the bucket is one of UMI's listed causes of a car sitting too high.
4. Fit the new spring with the flat coil end up and the open coil end down into the lower A-arm.
5. Clock the open end correctly: against the ramp on UMI control arms, or between the weep holes on stock GM arms. Disregard the orientation of the UMI sticker.
6. Confirm the spring is fully seated and that the frame fingers sit inside the spring, not outside it.
7. Release the compressor, refit the wheels and lower the car.
8. Let the suspension settle, then measure ride height at all four corners before deciding whether any trimming is needed.
9. Have the front end aligned.

UMI publishes no fastener torque figure for these springs in either the item sheet or the general spring tips sheet, so no number is printed here. Use the factory service specification for your year and model, and tighten suspension pivot fasteners with the car at ride height.

A spring compressor is required for the front springs. Do not attempt the job by levering a loaded coil out of the pocket.
