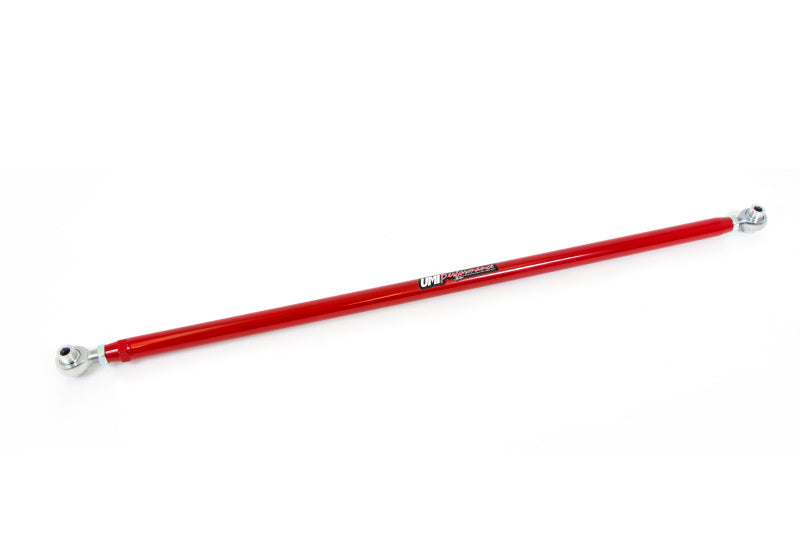

UMI Double Adjustable Panhard Bar in Red for the 1982-2002 Camaro and Firebird
Where a stock stamped panhard bar simply holds the axle sideways, this UMI bar lets you move it. Right and left hand threads at the two ends mean the length changes with the bar bolted in, and QA1 hard chrome plated race rod ends replace bushings entirely so the rear end does not bind as the suspension travels. Nominal length is 43 inches centre to centre, and the assembly is fully TIG welded and finished in red powder coat.
Key Features
- On-car double adjustable, with left and right hand threads so length changes without removing the bar.
- QA1 3/4 inch hard chrome plated Teflon and Kevlar self-lubricating race rod ends.
- Spherical rod-end design eliminates rear-end bind through suspension travel.
- 100 percent TIG welded fabrication for maximum strength.
- CNC machined 6061 aluminum step bushings at each rod end, with a steel sleeve.
- Replaces the stock stamped panhard bar, increasing rear stability, controlling side movement and reducing body flex.
- Essential for centring the rear end after lowering the car and for clearing larger tires.
- 43 inch nominal length, centre to centre.
Fitment
| Vehicle | Years and notes |
|---|---|
| Chevrolet Camaro | 1982-2002, every model year listed individually by UMI |
| Pontiac Firebird | 1982-2002, every model year listed individually by UMI |
UMI publishes no exclusions for this bar across the 1982-2002 F-body range.
UMI also builds a Roto-Joint double adjustable panhard bar for the same platform under a different part number, so check which joint style you are buying if you are comparing UMI bars.
Specifications
| Detail | Value |
|---|---|
| Brand | UMI Performance |
| Manufacturer part number | 2023-R |
| Part type | Rear panhard bar, also called a track bar, double adjustable |
| Tube size | 1.250 in x 0.095 in |
| Construction | 100 percent TIG welded |
| Adjustable | Yes, double adjustable on the car via right and left hand threads |
| Joints | QA1 3/4 inch hard chrome plated Teflon and Kevlar lined race rod ends |
| Rod end hardware | CNC machined 6061 aluminum step bushings with a steel sleeve at each end |
| Nominal length | 43 in centre to centre |
| Finish and colour | Red powder coat |
| Modifications required | None |
| Mounting hardware | Not included; the OEM panhard bar bolts are reused |
| Adjustment tool | 1-1/4 inch wrench on the hex, with the jam nuts loosened |
| Shipping weight and size published by UMI | 7 lb, 46 x 3 x 3 in |
| Warranty | UMI warrants parts to be free of defect at the time of purchase; coverage is limited to replacement of the part and excludes labor, towing and other direct or indirect costs |
What's Included
- One double adjustable panhard bar assembly with rod ends and jam nuts
- Two CNC machined aluminum step bushings and one steel sleeve per rod end
- No mounting bolts; the factory panhard bar hardware is reused
About UMI Performance
UMI Performance keeps its race-oriented parts in the same Philipsburg, Pennsylvania plant as the street range, TIG welding tube assemblies and machining the aluminum step bushings that centre a rod end inside a factory mount. On this bar UMI sources QA1 rod ends rather than making its own joint, and it offers a chrome moly tube version of the same design under a separate part number.
Related Parts
FAQ
Can I adjust it with the bar on the car?Yes. Right and left hand threads let you change length in place using a 1-1/4 inch wrench on the hex, with both jam nuts loosened first.
How do I centre the rear axle?Measure from each rear wheel to the fender well. Shortening the bar pulls the axle toward the passenger side and lengthening it pushes the axle toward the driver's side.
Why rod ends instead of bushings?UMI uses a spherical rod-end setup to eliminate rear-end bind, and the QA1 ends are Teflon and Kevlar lined so they are self-lubricating rather than greaseable.
How long is the bar?43 inches nominal, centre to centre, before any adjustment.
Does UMI publish a torque figure?No numeric torque value is published for this bar. The instruction sheet has you leave the bolts loose until the vehicle's weight is on the rear axle, then tighten the mounting hardware at ride height.
What are the aluminum step bushings for?They go into each rod end along with a steel sleeve so the joint is centred correctly inside the factory mounting bracket.
Do I reuse the factory bolts?Yes. Remove both panhard bar bolts with an 18mm wrench or socket and save them for the new bar.
What tube alloy is used on the red bar?UMI's own materials for this listing disagree on the alloy, so no alloy claim is published here. What is confirmed is a 1.250 inch by 0.095 inch tube, fully TIG welded, and that UMI sells a separate chrome moly version under its own part number.
Does anything need checking after installation?Yes. UMI advises checking the jam nuts often, since the adjuster relies on them staying tight.
Is drilling or welding required?No. The bar mounts in the factory panhard bar locations with the original hardware.

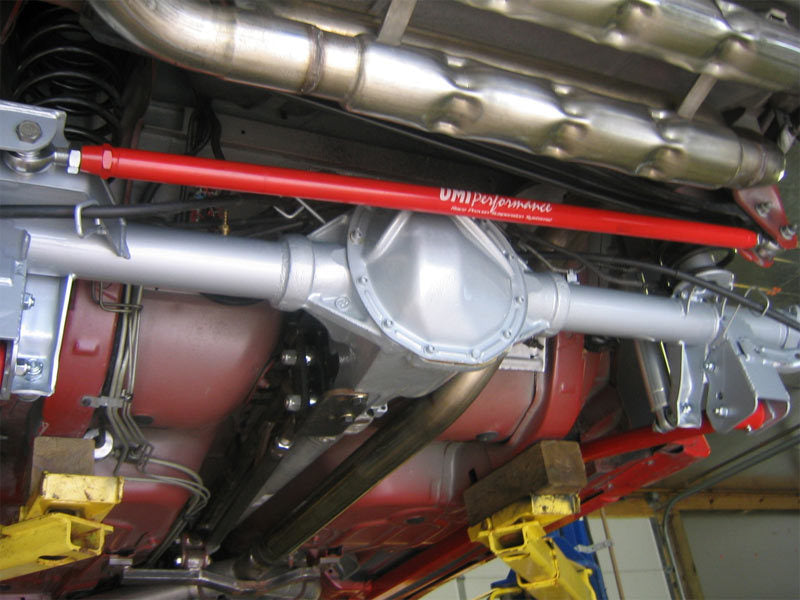

Installation Instructions
- Jack the rear of the car with both wheels off the ground and set jack stands under the frame, not under the rear axle.
- Remove both panhard bar bolts with an 18mm wrench or socket and save the bolts.
- Loosen both jam nuts on the new bar and turn each rod end equally in or out until the bar matches the length of the OEM bar.
- Fit the two aluminum step bushings and the steel sleeve into each rod end so the joint centres in the mount.
- Install the bar with the hex end on whichever side is easier to reach, using the saved OEM hardware.
- Leave the bolts loose so the suspension is not preloaded at the wrong ride height.
- Lower the car back to ride height so its weight is on the rear axle, then tighten the mounting hardware.
- Measure each rear wheel to the fender well, loosen the jam nuts and turn the hex with a 1-1/4 inch wrench until the axle is centred.
- Retighten both jam nuts and check them periodically after driving.
