UMI Bolt-In Rear Lower Control Arm Relocation Brackets in Red for the 1982-2002 Camaro and Firebird
This is the UMI red powder coated version of the F-body bolt-in relocation bracket pair. Each bracket wraps the factory lower control arm mount on the axle housing and offers a set of lower pickup holes cut along the arc the arm already travels, which is how the geometry change happens without binding the arm or cutting the housing. Colour is the only difference between this pair and the black pair.
Key Features
- Repositions the rear lower control arm mount downward to sharpen instant center and forward bite.
- Track testing published by UMI shows an average gain of 0.10 second or better in the 60-foot.
- Cut on a CNC laser from 3/16 inch mild steel and CAD designed around the factory mount.
- Adjustment holes follow the natural arc of the lower control arm so the arm bolts straight in.
- Internal flanges add stiffness to the bracket and receive the factory bushings directly.
- Grade 10.9 mounting hardware is packaged with the brackets.
- No drilling and no welding, with UMI publishing roughly a one to two hour install.
- Suits factory lower control arms and popular aftermarket arms at stock or lowered ride height.
- Red powder coat over the laser-cut steel.
Fitment
| Vehicle | Years and axle notes |
|---|---|
| Chevrolet Camaro | 1982-2002, every model year listed individually by UMI |
| Pontiac Firebird | 1982-2002, every model year listed individually by UMI |
Housing compatibility published by UMI: factory rear ends and Strange Engineering rear ends are supported, while Moser Engineering rear ends are handled by UMI part number 2011.
Two model-year jobs are called out in UMI's sheet. On 1993-1997 cars the brake weight may need up to 1/4 inch trimmed, and on 1998-2002 cars the parking brake cable bracket is cut off and re-mounted on the relocation bracket.
Specifications
| Detail | Value |
|---|---|
| Brand | UMI Performance |
| Manufacturer part number | 2012-R |
| Part type | Rear lower control arm relocation brackets, bolt-in, sold in pairs |
| Material | 3/16 inch mild steel plate, CNC laser cut |
| Construction | Laser-cut plate with internal reinforcing flanges |
| Drop positions | Multiple drop holes, including a 2 inch position |
| Bushings | None supplied; factory control arm bushings bolt directly in |
| Finish and colour | Red powder coat |
| Mounting hardware | Included, grade 10.9 |
| Welding or drilling | None required |
| Published install time | About 1 to 2 hours |
| Shipping weight and size published by UMI | 6 lb, 8 x 8 x 8 in |
| Manufactured in | Philipsburg, Pennsylvania, United States |
| Warranty | UMI warrants parts to be free of defect at the time of purchase; coverage is limited to replacement of the part and excludes labor, towing and other direct or indirect costs |

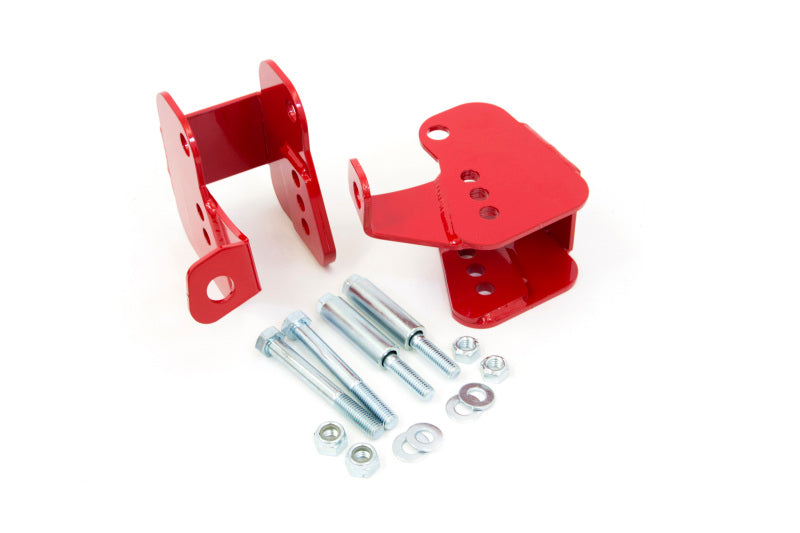

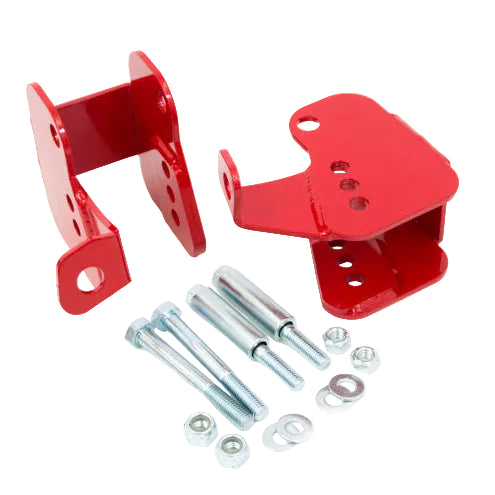

What's Included
- Driver-side and passenger-side relocation brackets, one of each
- Two M12 x 100mm bolts with two M12 lock nuts and two M12 flat washers
- Two 7/16 inch x 4 inch bolts with two 7/16 inch flat washers and two 7/16 inch lock nuts
- Two 3016C steel sleeves
About UMI Performance
Everything UMI Performance sells is drawn, cut and finished at its Philipsburg, Pennsylvania plant, where laser-cut plate, formed flanges and powder coat make up most of the chassis catalogue. Red is UMI's signature colour and is offered alongside black across the F-body range, so a car built on UMI parts can be matched end to end.
FAQ
Is the red pair mechanically different from the black pair?No. The steel thickness, hole positions, flanges and hardware are the same; UMI separates the two only by powder coat colour.
Can I run these on a Moser housing?No. UMI excludes Moser Engineering rear ends and offers part number 2011 for those cars.
Do factory bushings carry over?Yes. The internal flanges are sized so the factory control arm bushings bolt right in, and aftermarket arms in popular styles also fit.
Is any cutting involved on a 1998-2002 car?The parking brake cable bracket has to come off and be re-attached to the relocation bracket, which UMI describes as welded or bolted on after installation.
And on a 1993-1997 car?UMI notes those may need up to a quarter inch trimmed off the brake weight, and that some cars need light grinding of the brake bracket.
Which drop hole should I use?UMI's website copy and its printed sheet do not describe the hole positions the same way. Both name a 2 inch drop, so that is the figure published here; ask UMI directly before planning a build around a deeper hole.
What tools will I need?SAE wrenches and sockets, a floor jack and jack stands, and a pry bar or a second person to push the axle forward when the arm is swung up.
Are the torque specs published?Yes: shock stud 80 ft-lbs, 7/16 inch x 4 inch bracket bolts 50 ft-lbs, and the four control arm bolts 72 ft-lbs once the suspension is loaded.
Do I have to buy hardware separately?No. New grade 10.9 bolts, nuts, washers and the two steel sleeves come with the brackets.
Will they fit a car at stock ride height?Yes. UMI lists the brackets as suitable for cars at factory height as well as lowered cars.
Installation Instructions
- Chock the front wheels, raise the rear of the car and support the frame on jack stands so the axle hangs free.
- Work one corner at a time to keep the axle located.
- Take out the rear-side lower control arm bolt and allow the arm to drop.
- Raise the axle tube slightly with a jack, then remove the shock nut and stud.

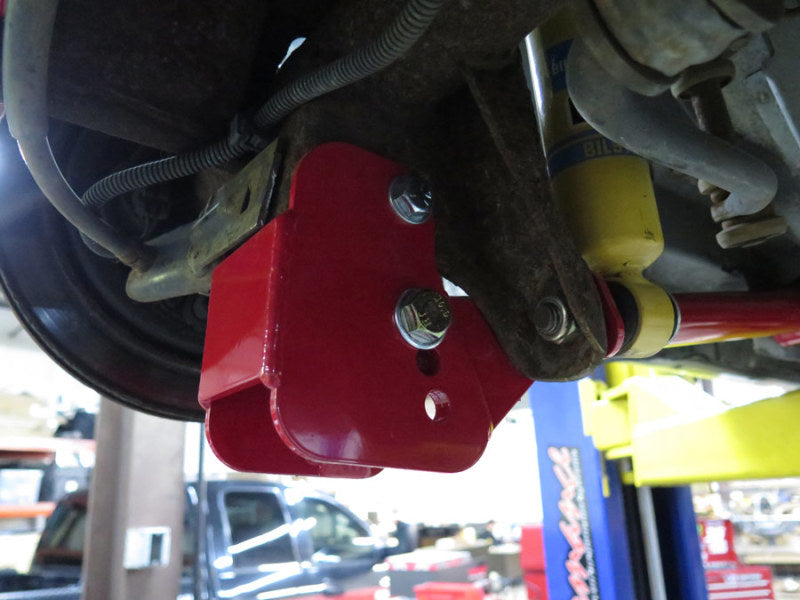

- Fit the bracket over the control arm mount and pass the 7/16 inch x 4 inch bolt with its steel sleeve through from the inside out, leaving the lock nut loose.
- Reinstall the shock stud and torque it to 80 ft-lbs.
- Push the rear end forward with a pry bar or a helper, swing the arm up to the chosen hole and fit the M12 x 100mm bolt.
- Torque the 7/16 inch x 4 inch bolt to 50 ft-lbs and leave the M12 bolt loose for now.
- Repeat on the other side, handling the brake weight trim or parking brake cable bracket if the model year calls for it.
- Set the car back down so the suspension carries the weight, then torque all four control arm bolts to 72 ft-lbs.
