UMI Rear Control Arm and On-Car Adjustable Panhard Bar Kit in Red for the 1982-2002 Camaro and Firebird

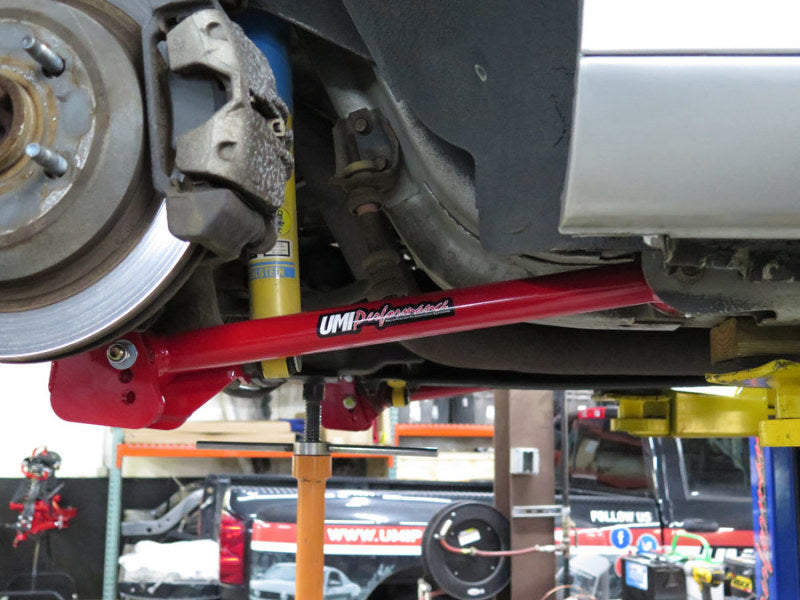

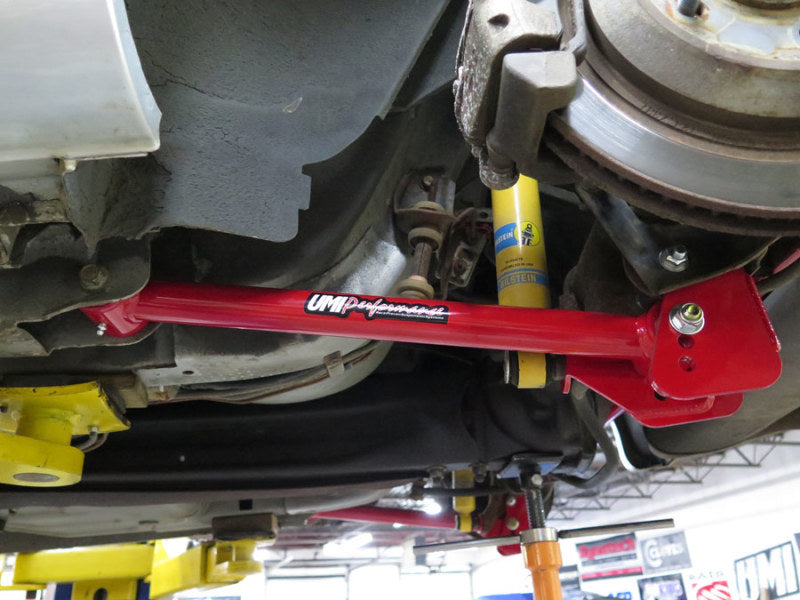

Once a Camaro or Firebird is lowered, the rear axle no longer sits centred under the body, and a fixed bar cannot fix that. This red kit combines UMI's tubular rear lower control arms with the on-car adjustable poly panhard bar, whose left and right hand threads let you change length with the bar still bolted in place, so the axle can be walked back to centre while the car sits at its real ride height.
Key Features
- Heavy-duty tubular lower control arms and a heavy-duty tubular on-car adjustable panhard bar, both direct bolt-on.
- Mild steel tubing with CNC machined ends and polyurethane bushings throughout the kit.
- The panhard bar increases rear stability, controls side movement and reduces body flex.
- Left and right hand threaded double adjuster changes bar length without removing it from the vehicle.
- Panhard bar uses 1.250 inch by 0.095 inch DOM steel tubing, precision TIG welded, with a CNC machined 4140 heat-treated chrome-moly adjuster and 4140 chrome-moly threaded tube adapter.
- Energy Suspension greaseable polyurethane bushings with grease fittings on the panhard bar.
- Control arms reduce wheel hop and improve straight-line traction, and the kit as a whole lowers ETs and improves track consistency.
Fitment
| Vehicle | Years and notes |
|---|---|
| Chevrolet Camaro | 1982-2002, every model year listed individually by UMI |
| Pontiac Firebird | 1982-2002, every model year listed individually by UMI |
UMI publishes no exclusions for this kit across the 1982-2002 F-body range.
The adjustable element in this kit is the panhard bar. The lower control arms supplied with it are the fixed-length version, so ride height and arm length stay at factory dimensions.
Specifications
| Detail | Value |
|---|---|
| Brand | UMI Performance |
| Manufacturer part number | 201529-R |
| Part type | Rear suspension kit, two lower control arms plus one on-car adjustable panhard bar |
| Component part numbers | UMI 2015 lower control arms and UMI 2029 on-car adjustable panhard bar |
| Material | Mild steel tubing with CNC machined ends |
| Panhard bar tubing | 1.250 in x 0.095 in DOM steel |
| Adjuster | CNC machined 4140 heat-treated chrome-moly adjuster with 4140 chrome-moly threaded tube adapter |
| Adjustable | Yes, the panhard bar adjusts on the car; the control arms are fixed length |
| Bushings | Polyurethane throughout, with Energy Suspension greaseable poly and grease fittings on the panhard bar |
| Finish and colour | Red powder coat |
| Mounting hardware | Not included; OEM hardware is reused |
| Torque published by UMI | 72 ft-lbs on the control arm bolts, tightened with the suspension loaded |
| Shipping weight and size published by UMI | 18 lb, 46 x 6 x 6 in |
| Warranty | UMI warrants parts to be free of defect at the time of purchase; coverage is limited to replacement of the part and excludes labor, towing and other direct or indirect costs |

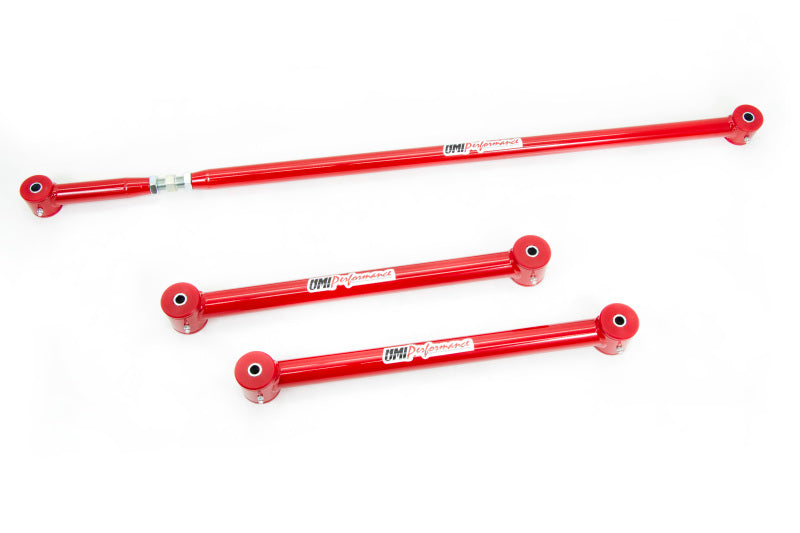

What's Included
- Two UMI tubular rear lower control arms with a grease packet
- One UMI on-car adjustable panhard bar with poly bushings
- One installation instruction sheet and one grease packet with the panhard bar
- No mounting hardware; the OEM bolts are reused
About UMI Performance
UMI Performance builds the adjustable hardware in this kit the same way it builds its race parts: a DOM steel tube, a machined 4140 chrome-moly adjuster and threaded adapter, TIG welded and powder coated in Philipsburg, Pennsylvania. The panhard bar carries Energy Suspension greaseable polyurethane bushings, and UMI publishes an install time of about 20 minutes for that component on its own.
FAQ
Which part of this kit is adjustable?The panhard bar. It has left and right hand threads so its length can be changed with the bar still on the car; the lower control arms in the kit are the fixed-length version.
Why would I need to adjust the panhard bar?To re-centre the rear axle under the body, which typically matters after lowering the car or when fitting wider tires.
How do I know the axle is centred?UMI's method is to measure from each rear wheel to the fender well. Shortening the bar moves the axle toward the passenger side and lengthening it moves the axle toward the driver's side.
Which way does the adjuster face when installing?UMI has you install the bar with the adjuster toward the driver's side, after setting the new bar to the length of the OEM bar with a 1 inch wrench and both jam nuts loosened.
What grease does the adjustable bar take?Marine-type grease, one to two pumps, two to three times a year, without over-greasing. The control arms in the kit use non-lithium grease.
Do I have to loosen anything after adjusting?The jam nuts. Loosen them before turning the adjuster and retighten them once the axle is where you want it.
Are new bolts included?No. The kit mounts with the factory hardware in the factory locations.
What torque applies to the control arms?UMI recommends 72 ft-lbs on the arm bolts, tightened after the vehicle's weight is on the rear axle.
Is any welding or drilling involved?No. Both components are published as direct bolt-on parts.
What size tubing do the control arms use?UMI describes the arm tubing differently on different pages, so this listing states only the confirmed common facts: mild steel tubing with CNC machined ends.
Installation Instructions
- Raise the rear of the car until both wheels are off the ground and support the frame on jack stands.
- Swap the lower control arms one side at a time with 18mm tools, greasing the bushing surfaces and pointing the fittings down, leaving the bolts loose.
- Set the adjustable panhard bar to the same length as the OEM bar, using a 1 inch wrench on the adjuster with both jam nuts loosened.
- Grease the poly bushing surfaces of the panhard bar before it goes in.
- Remove the factory panhard bar with 18mm tools, saving the OEM hardware, then install the UMI bar with the adjuster toward the driver's side.
- Leave all hardware loose until the weight of the vehicle is back on the rear axle.
- Lower the car to ride height, then tighten the four control arm bolts to 72 ft-lbs and tighten the panhard bar hardware.
- Measure from each rear wheel to the fender well and turn the adjuster to centre the axle, remembering that shortening moves it toward the passenger side.
- Retighten the jam nuts on the adjuster once the axle is centred.
- Give each grease fitting one to one and a half pumps of grease, using marine-type grease on the panhard bar.
