UMI Rear Control Arm and Non-Adjustable Panhard Bar Kit in Red for the 1982-2002 Camaro and Firebird
Same three pieces, finished in UMI red: a pair of tubular rear lower control arms and a fixed-length panhard bar that together control how the axle moves front to back and how it sits side to side under the car. Nothing here is adjustable, which keeps the geometry at the factory numbers while removing the deflection built into stamped arms and rubber bushings.
Key Features

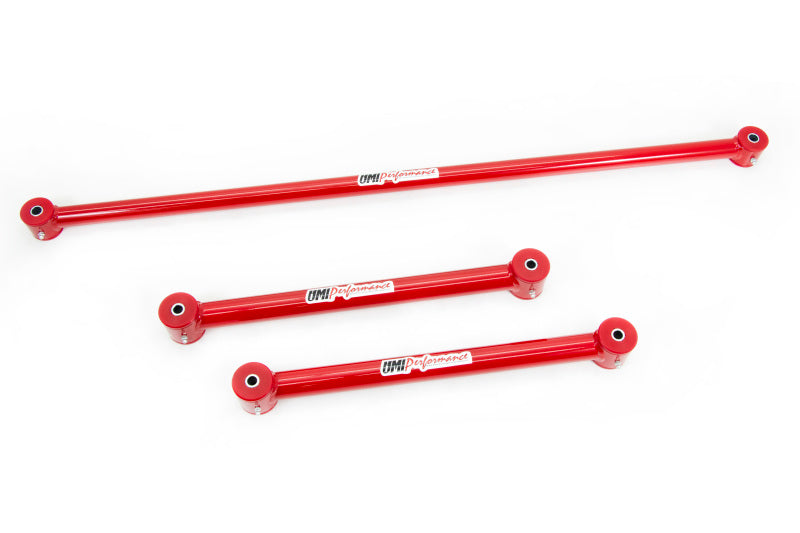

- Two rear lower control arms and one non-adjustable panhard bar supplied together in red powder coat.
- Panhard bar uses 1.250 inch by 0.095 inch steel DOM tubing.
- Precision TIG welding with CNC machined zinc-plated steel sleeves at the bushing bores.
- Fluted greaseable polyurethane bushings, with grease fittings so they can be serviced on the car.
- Seamless DOM mild steel selected by UMI for strength over aluminum equivalents.
- Reduces wheel hop, improves cornering and helps the car repeat its times at the track.
- Reuses OEM hardware in factory mounting points, with a published install time of around 30 minutes.
Fitment
| Vehicle | Years and notes |
|---|---|
| Chevrolet Camaro | 1982-2002, every model year listed individually by UMI |
| Pontiac Firebird | 1982-2002, every model year listed individually by UMI |
No exclusions appear on UMI's kit page for the 1982-2002 F-body platform.
The panhard bar instruction sheet warns that a Moser Engineering housing can have a slightly tighter mounting location, so seating the bar may take extra pressure or light prying.
Specifications
| Detail | Value |
|---|---|
| Brand | UMI Performance |
| Manufacturer part number | 201520-R |
| Part type | Rear suspension kit, two lower control arms plus one panhard bar |
| Component part numbers | UMI 2015 lower control arms and UMI 2020 panhard bar |
| Material | Seamless DOM mild steel |
| Panhard bar tubing | 1.250 in x 0.095 in DOM |
| Construction | TIG welded |
| Adjustable | No |
| Bushings | Fluted greaseable polyurethane with grease fittings |
| Sleeves | CNC machined, zinc plated steel |
| Finish and colour | Red powder coat |
| Mounting hardware | Not included; OEM hardware is reused |
| Torque published by UMI | 72 ft-lbs on the control arm bolts and 60 ft-lb on the panhard bar, both with the suspension loaded |
| Shipping weight and size published by UMI | 18 lb, 46 x 6 x 6 in |
| Warranty | UMI warrants parts to be free of defect at the time of purchase; coverage is limited to replacement of the part and excludes labor, towing and other direct or indirect costs |
What's Included
- Two UMI tubular rear lower control arms plus a grease packet
- One UMI fixed-length panhard bar plus a grease pre-lube packet
- No bolts; the factory hardware, including the GM stepped panhard bolt, carries over
About UMI Performance
Red is the colour UMI Performance is known for, and the company applies it in house at Philipsburg, Pennsylvania over the same TIG welded DOM assemblies it sells in black. UMI supplies the separate 2015 and 2020 instruction sheets with this kit rather than a combined document, so each half of the job has its own published torque figure.
FAQ
Does the red kit differ from the black kit in any way besides colour?No. The tubing, bushings, sleeves and torque figures are identical; UMI lists the two as colour variants of one part number family.
Which components make up the kit?UMI's kit listing names the 2015 non-adjustable lower control arms and the 2020 non-adjustable panhard bar.
Can I set ride height or pinion angle with this kit?No. Every piece is fixed length. Adjustment calls for UMI's adjustable versions instead.
Are new bolts supplied?No. The kit is designed around the OEM bolts, and UMI specifically notes it does not stock the GM stepped panhard bar bolt.
What grease is correct here?Non-lithium grease for these components, one to one and a half pumps per fitting, two to three times a year, without over-greasing.
How long should I budget for the install?UMI publishes about 30 minutes, since everything mounts in the factory locations.
What are the final torque numbers?72 ft-lbs at the four control arm bolts and 60 ft-lb at the panhard bar, both applied once the car's weight is back on the rear axle.
Any issue with an aftermarket rear end?Only the Moser note from UMI's bar sheet: a slightly smaller mounting location on some Moser housings can make the bar tight to fit.
Why DOM tubing rather than aluminum?UMI states seamless DOM mild steel is used for added strength compared with aluminum versions of the same parts.
What diameter are the control arms?UMI's own pages describe the arm tubing two different ways, so this listing quotes only what both agree on: seamless DOM mild steel with CNC machined ends.
Installation Instructions
- Lift the rear of the car until both wheels hang and set jack stands under the frame, not under the axle.
- Replace one control arm at a time with 18mm tools so the axle housing stays located.
- Coat the polyurethane bushing surfaces with grease, then fit each arm with its grease fittings pointing down and the bolts left loose.
- Unbolt the factory panhard bar using 18mm and 21mm tools and keep the OEM stepped bolts.
- Pre-lubricate the new bar's bushings and install it with the fittings angled toward the ground, hardware still loose.
- Move the jack stands under the rear axle so the suspension is loaded at ride height.
- Torque the four control arm bolts to 72 ft-lbs.
- Torque the panhard bar hardware to 60 ft-lb.
- Pump one to one and a half shots of non-lithium grease into each fitting and set the car back on the ground.
