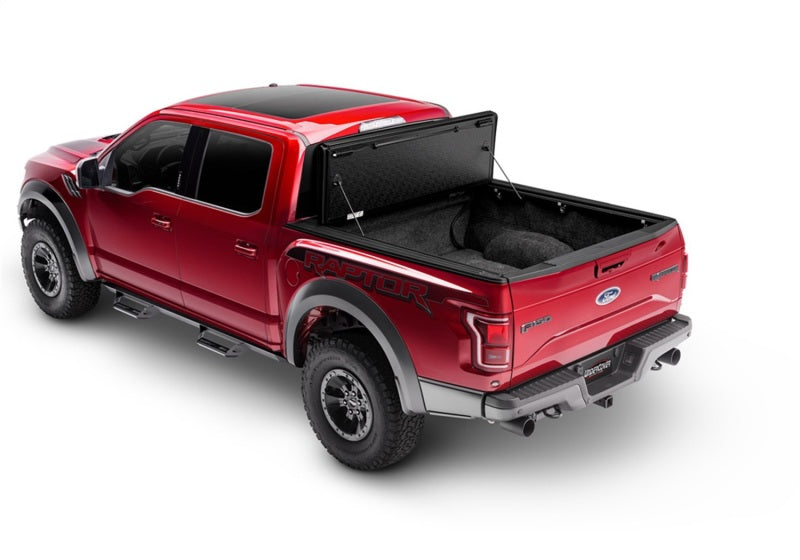

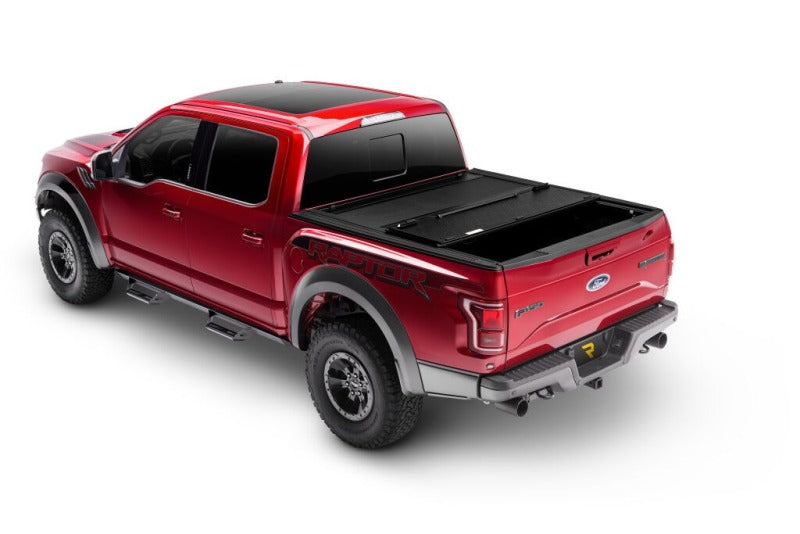

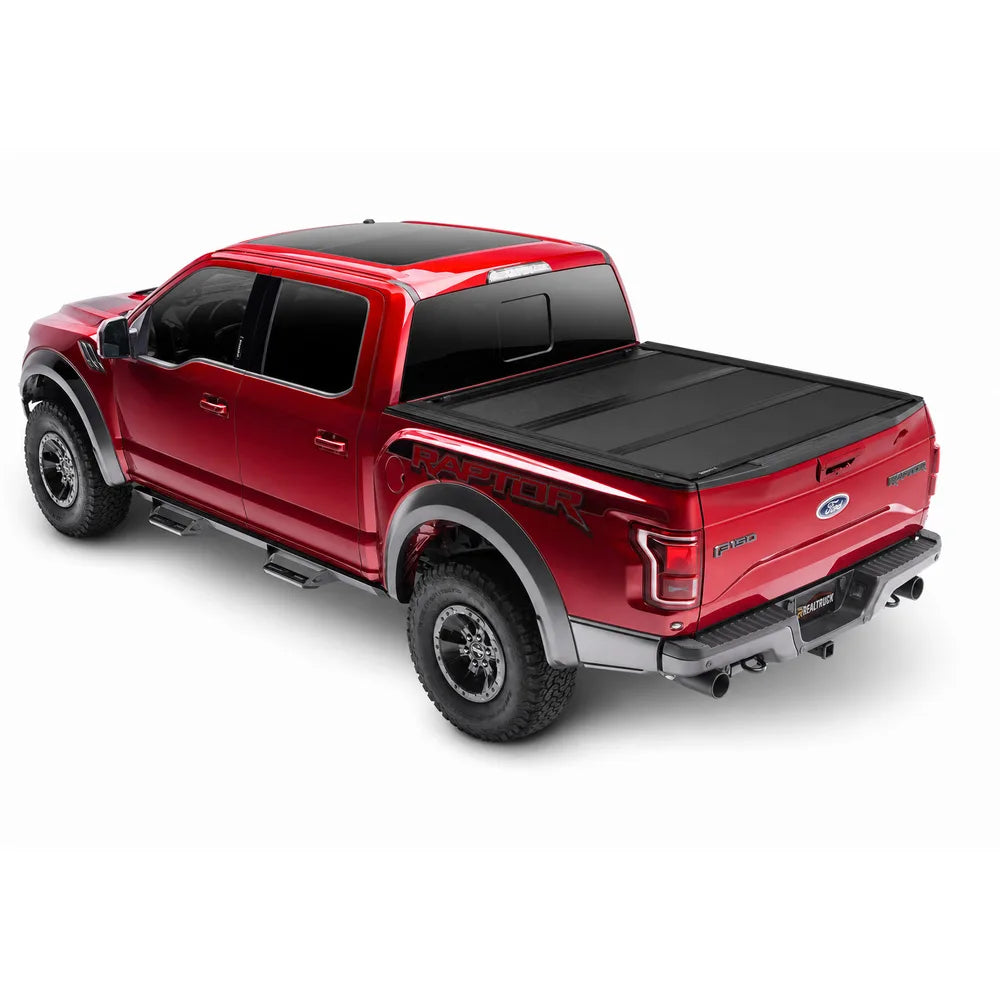

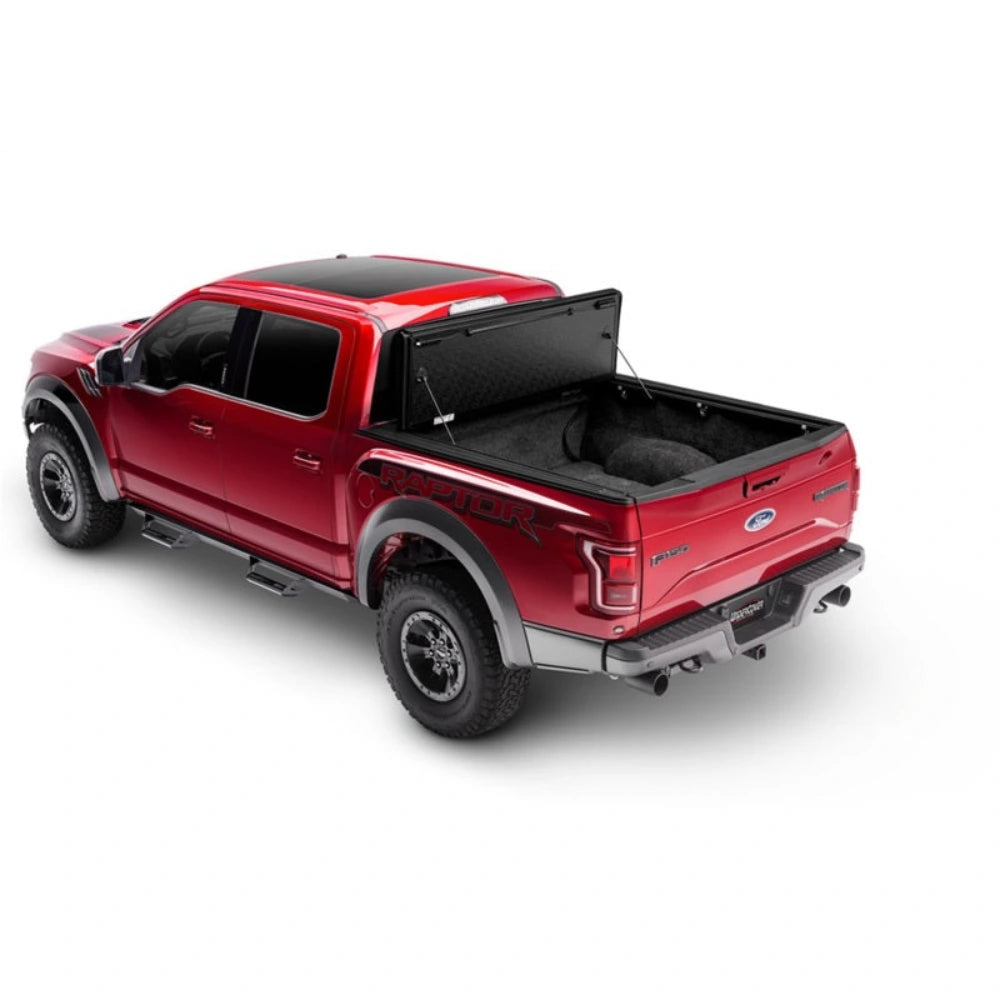

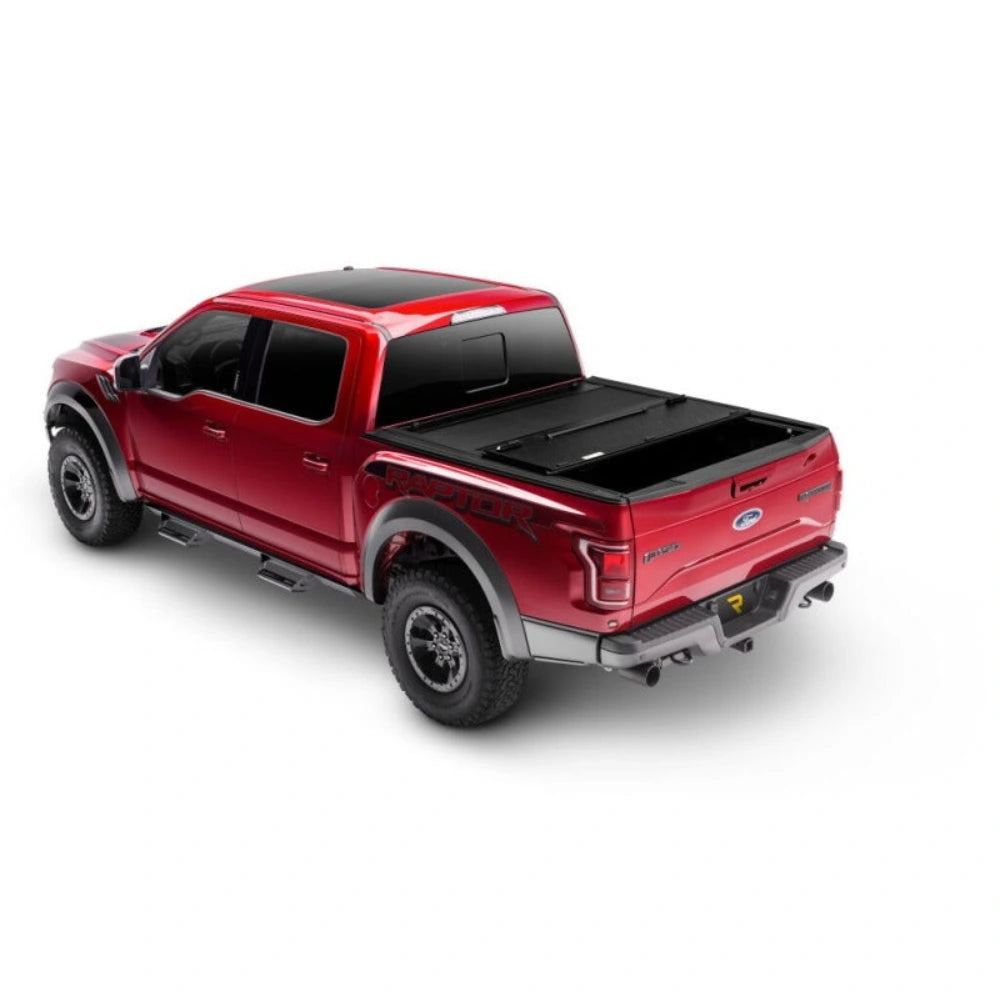

Classic F-150 Styling Meets Line-X Tough Durability
The AX22002 Armor Flex hard folding tonneau cover is purpose-built for the 2004-2014 Ford F-150 5.5ft bed, combining a low-profile tri-fold design with a factory Line-X coating that stands up to job site abuse and daily driving alike. The AX22002 seals out weather, keeps cargo hidden from view, and folds open in seconds when you need the whole bed back.
Key Features
- Heavy-duty panels finished with a Line-X specialty coating for dent and scuff protection
- Tri-fold hard cover design for quick full bed access
- Dual-action tailgate seal for tailgate operation with the cover open or closed
- Clamp-on installation, no drilling required into the bed rails
- Automatic latching panels for simple one-person operation
- Low-profile matte black finish that sits flush with the bed rails
- Locks in conjunction with the factory tailgate lock
- Made in the USA and backed by the AX22002's manufacturer warranty
Fitment Table
| Year Range | Make | Model |
|---|---|---|
| 2004-2014 | Ford | F-150 |
Specifications
| Detail | Value |
|---|---|
| MPN | AX22002 |
| Brand | UnderCover |
| Bed Length | 5.5 ft (67 in) |
| Cover Style | Armor Flex Hard Folding, Tri-Fold |
| Finish | Matte Black with Line-X Coating |
| Installation | Clamp-On, No Drilling |
| Locking | Locks with Factory Tailgate Lock |
| Toolbox Compatible | No |
| UPC | Not publicly listed by manufacturer |
What's Included
- AX22002 Armor Flex tri-fold tonneau cover
- Clamp-on side rail hardware
- Weather stripping and drain tubes
- Tie-down strap clips
- Manufacturer installation instructions
About UnderCover
UnderCover designs and manufactures hard folding and one-piece tonneau covers engineered for durability without sacrificing style. Built in Missouri, UnderCover covers are known for tight tolerances, weather-sealed construction, and finishes that hold up to daily work truck use as well as weekend hauling.
FAQ
What is the AX22002?The AX22002 is an UnderCover Armor Flex hard folding tonneau cover built for the 2004-2014 Ford F-150 5.5ft bed. It uses a Line-X coated tri-fold panel design with clamp-on installation.
Does the AX22002 fit the 5.5ft F-150 bed only?Yes, the AX22002 is sized specifically for the 5.5ft bed on the 2004-2014 Ford F-150 and will not fit the 6.5ft or 8ft bed lengths.
Can I operate the tailgate with the AX22002 installed?Yes, the dual-action tailgate seal lets you close the tailgate with the cover in either the open or closed position.
Does installing the AX22002 require drilling?No, the AX22002 clamps onto the factory bed rails without any drilling into the truck bed.
Will the AX22002 work over a spray-in bedliner?Yes, the clamp-on rail system is compatible with most spray-in bedliners. Very thick drop-in liners may require extra clearance checks at the rail.
Is the AX22002 lockable?Yes, the cover locks in conjunction with the factory tailgate lock for added security.
What finish does the AX22002 come in?The AX22002 comes in a matte black finish with a Line-X coating for added scuff and dent resistance.
Is the AX22002 compatible with a toolbox?No, the tri-fold panel and rail design is not toolbox compatible.
Install Instructions
- Install the included weather stripping along the front of the bed rail, stopping just before the bend
- Attach the side rails starting on the passenger side, positioning clips roughly six inches from the front, center, and near the tailgate
- Slide the rail forward until snug against the front of the bed and tighten the clamps evenly without overtightening
- Route the drain tubes to an open location outside the bed
- Install the front locking clips onto the rail channel
- Lay the folded cover onto the rails, unfold it, and center it evenly on both sides
- Close the tailgate slowly to seat the weather stripping against the tailgate seal
- Snug down the remaining rail clips on both sides, checking that the cover operates smoothly before finishing
