SKU: 24105 | UPC: 690092174835

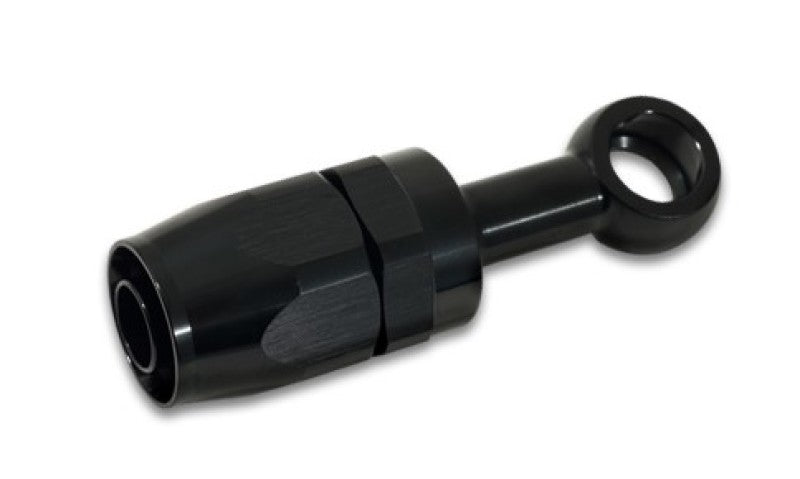

Vibrant -10AN Banjo Hose End Fitting for M16 or 5/8in Banjo Bolt - Aluminum Black Universal
This Vibrant Performance banjo hose end fitting connects -10 AN hose to M16x1.5 or 5/8-18 banjo bolts in custom oil systems. It delivers leak-free connections for consistent lubrication in high-performance engines across drag racing circle track and street applications. Black anodized aluminum construction ensures durability under pressure.
Key Features
- AN Size: -10 for high-volume oil flow matching performance hose standards
- Banjo Bolt Compatibility: Fits M16x1.5 metric and 5/8-18 SAE bolts common in GM Ford and import engines
- Material: CNC-machined 6061-T6 aluminum provides strength at minimal weight
- Finish: Black anodizing protects against corrosion and heat while matching black oil line setups
- Design: Straight banjo style allows straightforward routing in tight engine bays
Product Notes
- Sold as single fitting for custom fabrication projects
- Inspect banjo bolt threads for exact match before assembly
- Small footprint suits compact oil cooler and dry sump installations
Installation Notes
- Professional installation recommended.
- Torque banjo bolt to manufacturer specs with sealing washer
- Works with standard -10 AN hose and crimp collars
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Engines | M16 or 5/8in Banjo Bolt |
Why Choose Vibrant Performance?
- Trusted by racing professionals around the world
- Built to strict quality and reliability standards
- Complete range covers every performance oiling need
Frequently Asked Questions
-
Q: What hose size fits this banjo end?
A: Specifically made for -10 AN braided hose used in oil cooler and turbo drain lines -
Q: What material and finish are used?
A: 6061-T6 aircraft-grade aluminum with durable black anodized coating for heat and wear resistance -
Q: Does it require special tools for install?
A: Standard AN crimper and wrenches suffice pairs with OEM or aftermarket banjo bolts
Shipping & Handling
- Method: Ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 3in x 3in x 1in
- Weight: 0.10 lbs
