SKU: 16894 | UPC: 690092152406

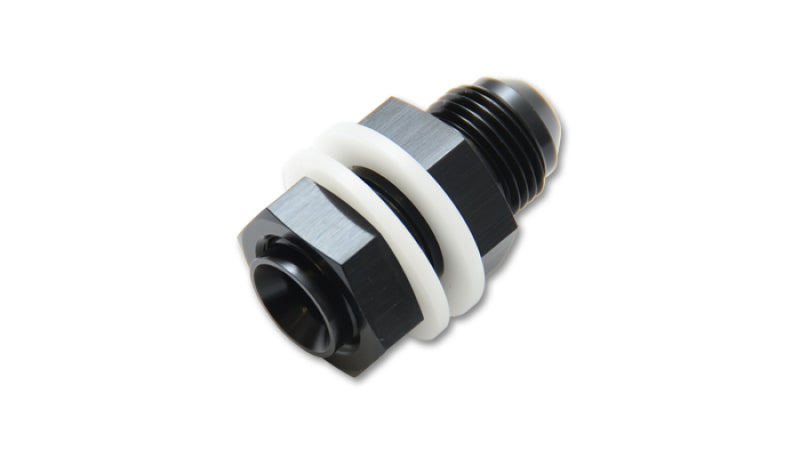

Vibrant -10AN Fuel Cell Bulkhead Adapter Fitting (w/ 2 PTFE Crush Washers & Nut) - Universal
Vibrant Performance -10AN fuel cell bulkhead adapter fittings connect fuel lines to fuel cells or tanks in race cars, dragsters, off-road vehicles and custom builds. Constructed from lightweight 6061-T6 aluminum, these fittings mount through bulkhead walls without restricting fuel flow. Double anodized black finish and hand-polished surfaces deliver durability for high-performance demands.
Key Features
- 6061-T6 Aluminum Build: Weighs just 0.10 lbs to cut vehicle weight while handling high-pressure fuel systems
- Double Anodized Black Finish: Resists corrosion, fuels and chemicals for long-term reliability in motorsports
- Hand Polished Design: Smooth surfaces prevent snags during install and promote even fuel distribution
- Two PTFE Crush Washers Included: Creates airtight seals compatible with gasoline, alcohol and methanol
- Bulkhead Nut Supplied: Enables simple through-wall mounting on any standard fuel cell
Product Notes
- Designed for -10AN male O-ring fuel lines with no flow restriction
- PTFE washers resist degradation from racing fuels over repeated use
- Packaged in 3.38 x 1.88 x 1.25 inch box for protection during transit
Installation Notes
- Professional installation recommended.
- Pass adapter through bulkhead hole matching -10AN flange size, then tighten nut with washers on both sides
- Torque nut to 20-25 ft-lbs. compatible with standard fuel cell walls 0.125 inch thick or greater
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Fuel Cell Equipped | Race/Drag/Off-Road |
Why Choose Vibrant?
- Proven in NHRA and drag racing applications for consistent performance
- CNC machined in the USA from billet aluminum for exact tolerances
- Engineered specifically for fuel systems in high-horsepower builds
Frequently Asked Questions
-
Q: Will this fit my custom fuel cell?
A: Yes, it threads into any standard bulkhead accepting -10AN fittings with 1.5 inch flange hole -
Q: What is the material and finish?
A: Made from 6061-T6 aluminum with double black anodizing for corrosion resistance and PTFE washers for sealing -
Q: What warranty applies?
A: Backed by Vibrant Performance limited lifetime warranty against manufacturing defects
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective box measuring 3.38 x 1.88 x 1.25 inches
- Weight: 0.10 lbs
